Omni Directional 3G 4G 5G NR Antenna Outdoor 5dBi Waterproof Wideband Patch
1. Product Name
Outdoor 5dBi Waterproof Wideband Omni Directional 3G/ 4G / 5G Antenna
2. Description
--2.1 Applications
3G,4G and 5G NR Cellular Applications
Outdoor / Indoor Use for Mobile Phone Boosters
DAS Systems in Stadiums and Public Venues
WIFI 802.11b/g/n
--2.2 Features
698-6000MHz Continuous Coverage
5dBi High Gain
N Female Connector
All Weather Operations
Pole, Wall or Ceiling Mountable
Rugged Compact Design
3. Introduction
The 5G Omni Wide Band 4dBi Antenna offers high gain and quality construction. The antenna operates over 3G, 4G LTE and 5G NR mobile networks from 698 to 6000 MHz, and is compatible with all mobile carriers.
The 5G Omni Wide Band Antenna has a universal mounting bracket that allows both pole and wall mounting and is suitable for indoor and outdoor use and can be mounted inverted to ceiling or roof supports. In addition to home and SOHO use the antenna is ideal for use at high capacity indoor and outdoor venues.
4. Specs
Electrical Properties
| 1.1 | Frequency | 698-6000MHz |
| 1.2 | Gain (peak) | 5 dBi |
| 1.3 | V.S.W.R | 2.5 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 10W |
Mechanical Properties
| 2.1 | Cable | |
| 2.2 | Antenna Cover | ABS |
| 2.3 | Antenna Base | Bracket |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | White |
| 2.7 | Connector | N Female |

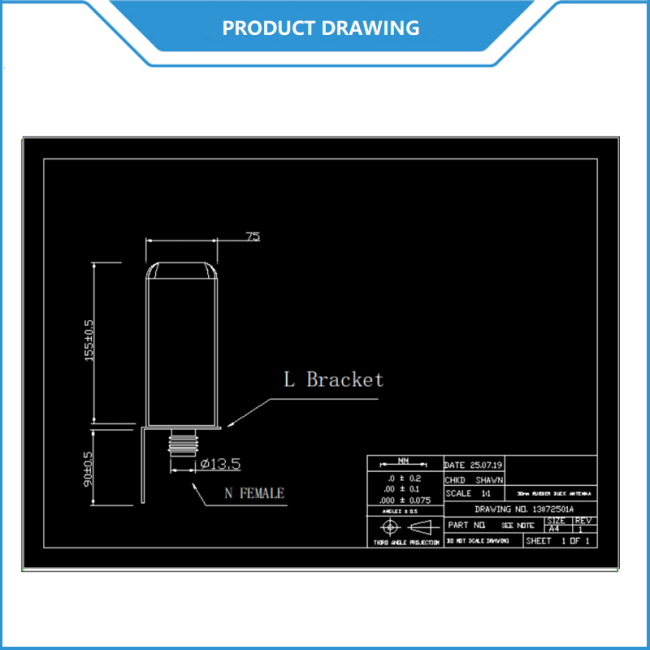

5. Antenna Drawing

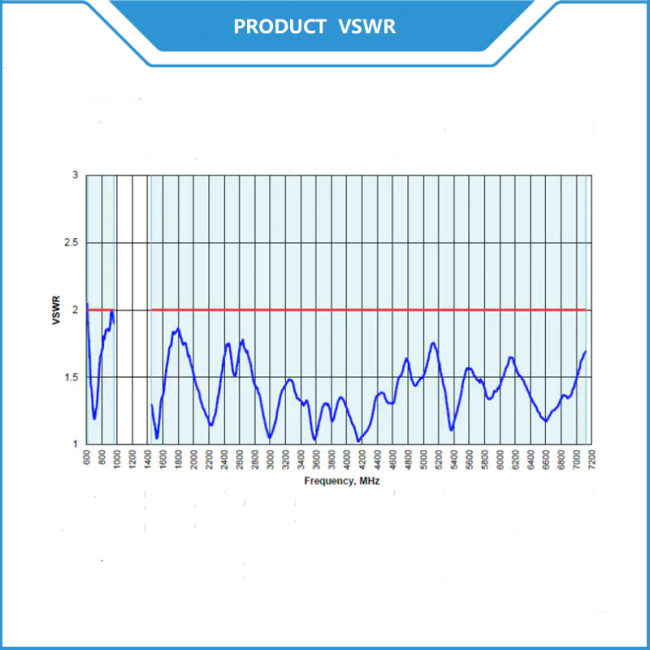

6. VSWR

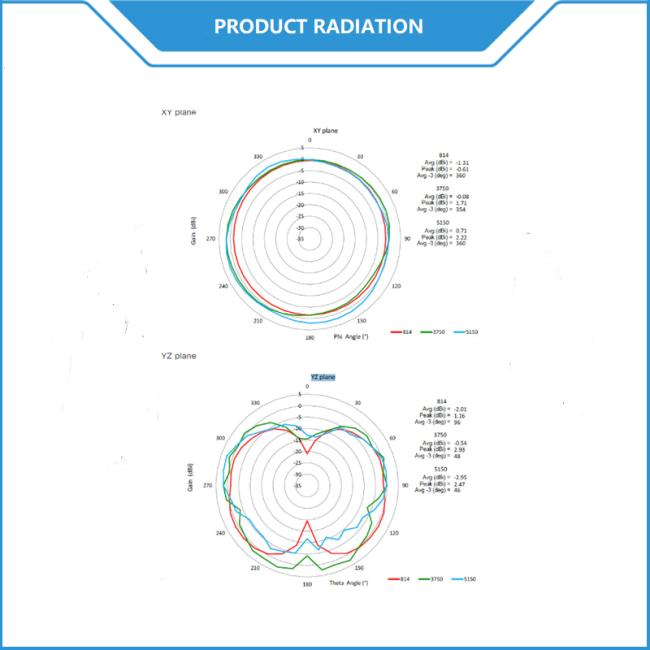

7. Radiation Pattern
