External Ultra Wideband 4G LTE 5G NR Antenna Hinged Rotatable Terminal Mount Antenna

Price Negotiable

Price: USD$ 1.2 / PCS - USD$ 1.5 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

1. Product Name

External 5G LTE Hinged Rotatable Terminal Antenna

2. Description

--2.1 Applications

Marine (Yachts, Boats, Ferries) Applications

Enhanced 4G LTE and 5G Reception

IoT & M2M Applications

Areas with Poor Data Signal Reception

Improve Data Transmission Connection Reliability and Stability

--2.2 Features

High Gain Omni Directional Antenna

Includes Band 71 (617-698MHz) and 3.5G 5G Bands

5G LTE 617-960MHz, 1710-2690MHz, 3300-3800MHz, 4200MHz-4700MHz, 5000MHz-5925MHz Supporting

Hinge Rotatable, 90 Degree

Connector: SMA Male

RoHS Compliant

3. Introduction

This SMA Male 5G NR omni directional antenna is designed by ultra wide band from 600-6000MHz, and it can supported to all types of communication devices or systems.

Also, it is an ultra wideband, high performance antenna that covers 4G LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The wideband performance allowsit to operate from 617-6000MHz with a peak gain 5dBi .

4. Specs

Electrical Properties

1.1	Frequency	600- 6000 MHz
1.2	Gain (peak)	5dBi
1.3	V.S.W.R	2.5 MAX

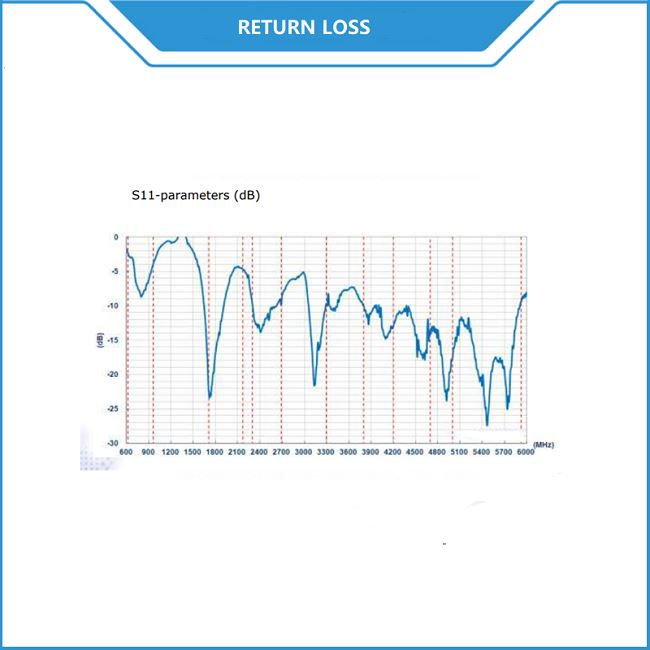

1.4	Return Loss	-10dB Maximum

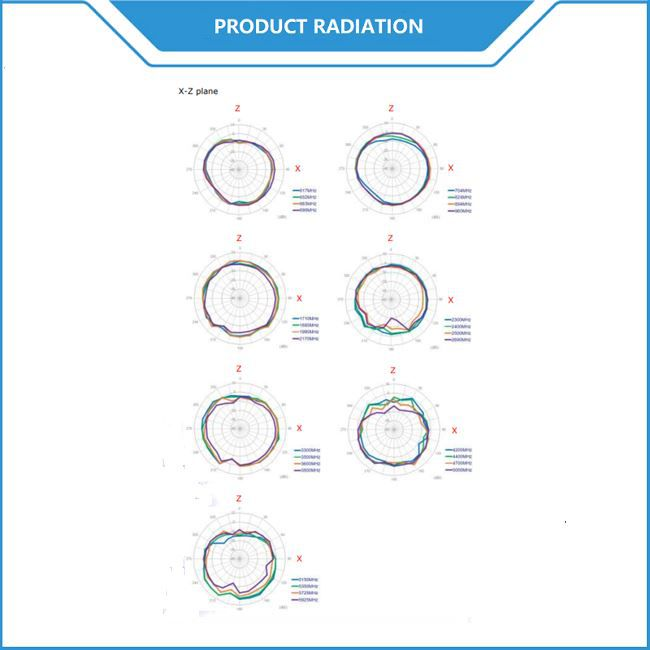

1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG178
2.2	Antenna Cover	ABS
2.3	Antenna Base	PC+PBT
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug
