External Omni Directional 5G NR Antenna 3500MHz CBRS 5G Terminal Antenna

Price Negotiable

Price: USD$ 1.5 / PCS - USD$ 2 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

1. Product Name

External Omni Directional 3500MHz CBRS 5G Terminal Antenna

2. Description

--2.1 Applications

Worldwide 5G (Sub-6G)

Private Cellular Networks--Citizens Broadband Radio Services (CBRS)

Emerging 5G C-Band Applications

Internet of Things (IoT) Devices

--2.2 Features

Performance at 3300-3800MHz

VSWR < 2.0

Peak Gain : 7dBi

Efficiency : 66%

Hinged Design with Detents for Straight, 45Degree and 90Degree Positioning

SMA Plug (Male Pin)

3. Introduction

This is a dipole, blade-style antenna for 5G New Radio applications.

The hinged design allows for the antenna to be positioned for optimum performance and reduces the potential for damage from impact compared to a fixed whip design. The antenna attaches with an SMA plug (male pin) connector.

4. Specs

Electrical Properties

1.1	Frequency	3300-3800MHz
1.2	Gain (peak)	7 dBi

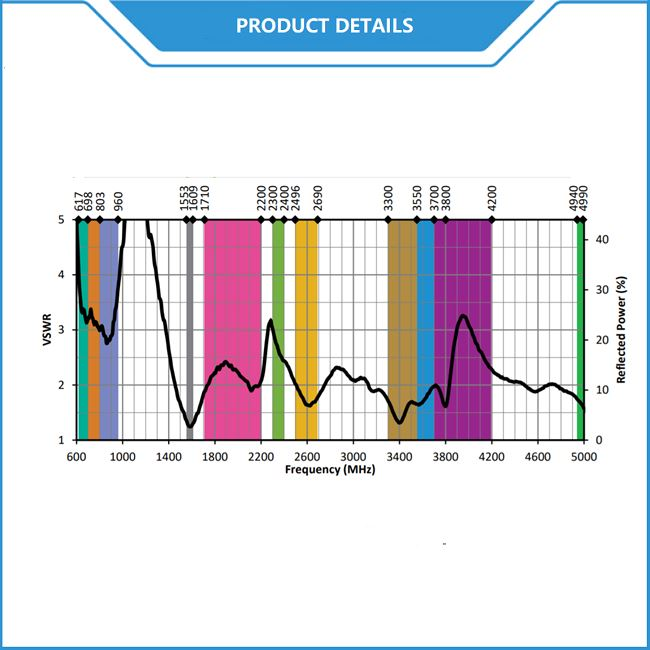

1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum

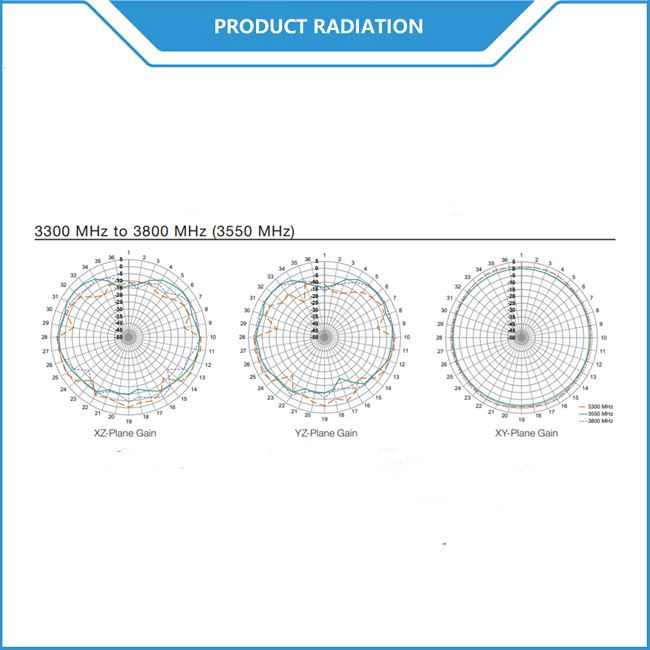

1.5	Radiation	Omni-Directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG178
2.2	Antenna Cover	TPEE
2.3	Antenna Base	Brass
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black / White
2.7	Connector	SMA Plug
