Magnetic Mount 2G 3G Antenna External Cellular High Gain 3dbi Fiberglass Antenna
External Cellular 3dBi High Gain Magnetic Mount 2G 3G Antenna
1. Product Name
External Cellular 3dBi High Gain Magnetic Mount 2G 3G Antenna
2. Description
--2.1 Applications
1710-2170MHz ISM Band
Multipoint Applications
Public Wireless Hotspot
CDMA,RFID, GSM, UMTS, DCS, PCS
Wireless Video Systems
--2.2 Features
Superior Performance
Easy Set Up
3dBi High Gain
RG174 Coaxial Cable
Magnetic Base
Omni Directional
3. Introduction
It is a range of quad band omni-directional GSM / UMTS antenna, producing a high gain of 3.5dBi and 290mm tall from the bottom of its base to its tip.
It comes with a very strong magnetic base that commits to a firm purchase of magnetic surface.
As standard, it comes with RG174 coaxial cable or RG58 coaxial cable.
Also, connectors are optionals .
4. Specs
Electrical Properties
| 1.1 | Frequency | 824-960 / 1710-2170 MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 5W |
Mechanical Properties
| 2.1 | Cable | RG 174 |
| 2.2 | Antenna Cover | Iron |
| 2.3 | Antenna Base | ABS |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA / FME / TNC / N / BNC |

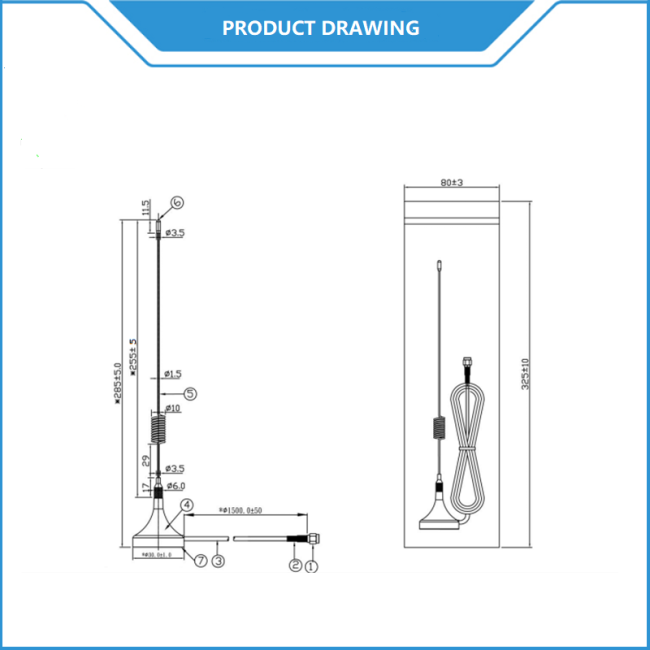

5. Antenna Drawing

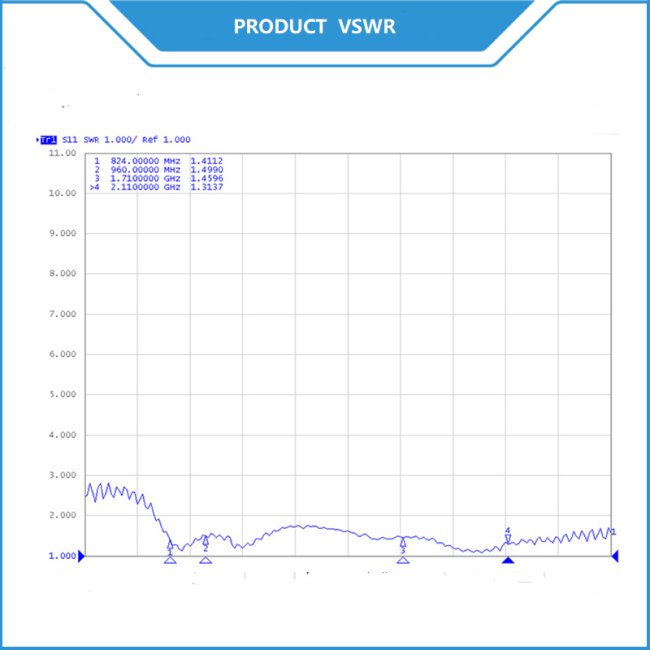

6. VSWR

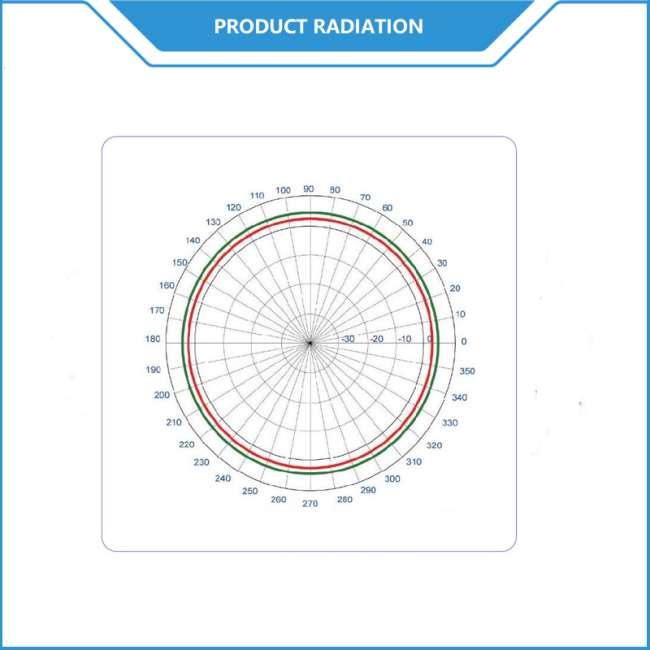

7. Radiation Pattern
