External Penta Band GSM UMTS 2G 3G Antenna Hinged SMA Male Dipole Antenna
External Penta-Band GSM UMTS Hinged SMA Male Dipole Antenna
1. Product Name
External Penta-Band GSM UMTS Hinged SMA Male Dipole Antenna
2. Description
--2.1 Applications
900MHz ISM Band
Cellular Band Applications
900MHz Digital Spread Spectrum Radios
900MHz Telemetry Products
LoRa, IoT, M2M Applications
--2.2 Features
2dBi Gain
Omni Directional
Rubber Duck Terminal Type
SMA Male Connector
108mm In Length
3. Introduction
This high performance GSM (900/1800MHz) omnidirectional “rubber-duck” antenna provides broad coverage and 3 dBi gain.
Connection is made via RA SMA Male connector with a hardened TPEE casing, this antenna is a good compact 2G antenna for remote monitoring devices or telematics applications.
4. Specs
Electrical Properties
| 1.1 | Frequency | 824-960 / 1710-2170 MHz |
| 1.2 | Gain (peak) | 2dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 5W |
Mechanical Properties
| 2.1 | Cable | RG178 |
| 2.2 | Antenna Cover | TPEE |
| 2.3 | Antenna Base | PC+PBT |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug or Customized |

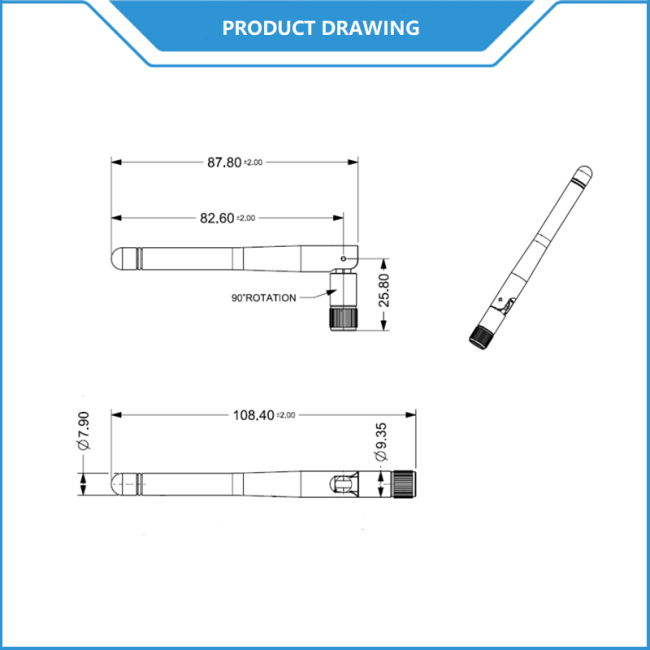

5. Antenna Drawing

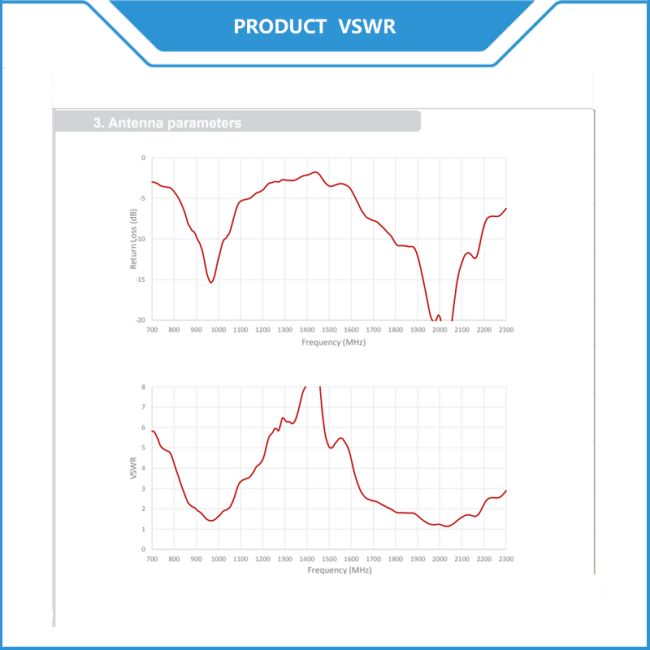

6. VSWR

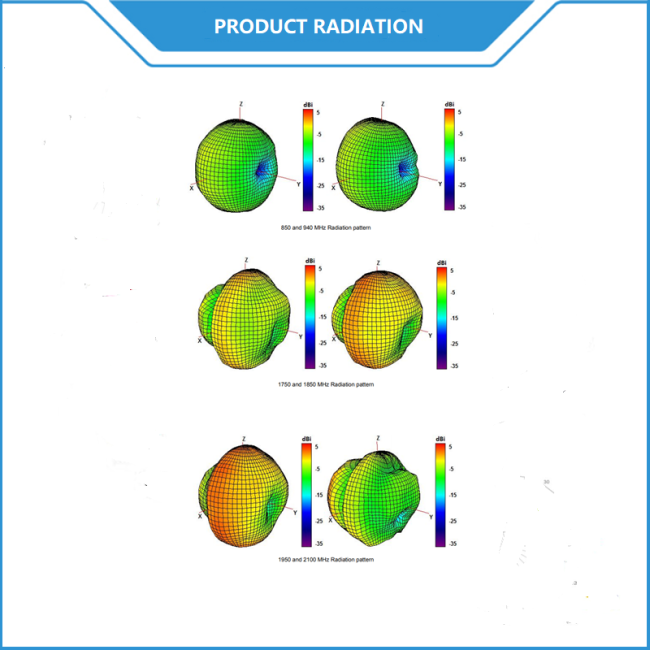

7. Radiation Pattern
