External 8dBi Gain Cellular 4G LTE Antenna Waterproof Wide Band Blade Router Antenna
1. Product Name
External 8dBi Gain Waterproof Wide Band 4G LTE Blade Router Antenna
2. Description
--2.1 Applications
4G/LTE (699-960/1710-2690 MHz)
3G Cellular Bands
2G Cellular Bands
CDMA Cellular Bands
GALILEO E1 (1575.42 MHz)
GPS (1575.42 MHz)
GLONASS (1592 - 1610 MHz)
--2.2 Features
8dBi High Gain
Wide Band
Magnetic Mount
No Ground Plane Required
Indoor or Outdoor Use
3. Introduction
This is a magnetic mount 4G LTE terminal router antenna which has an omni directional, IP65 waterproof characteristic, also this external M2M antenna can be used in Telematics, Transportation and Remote Monitoring applications worldwide. It is designed to be mounted directly on metal surface of vehicles .
It can delivers stable omni-directional gain and highest efficient across all common 4G,3G & 2G global cellular bands from 698MHz to 2.7GHz.
4. Specs
Electrical Properties
| 1.1 | Frequency | 700-2700 MHz |
| 1.2 | Gain (peak) | 8 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear /Vertical |
| 1.7 | Power Handling | 5 W |
Mechanical Properties
| 2.1 | Cable | RG 174 |
| 2.2 | Antenna Cover | ABS |
| 2.3 | Antenna Base | ABS |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black / White |
| 2.7 | Connector | SMA Plug / TS9 / CRC9 |

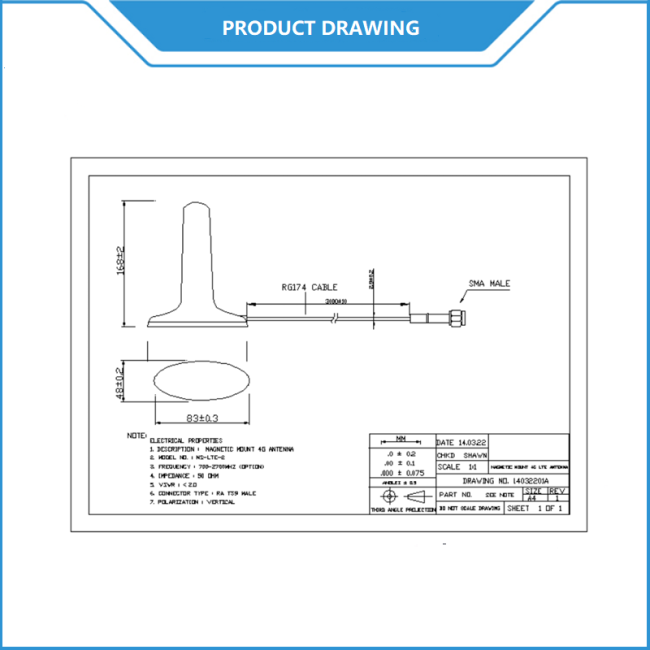

5. Antenna Drawing

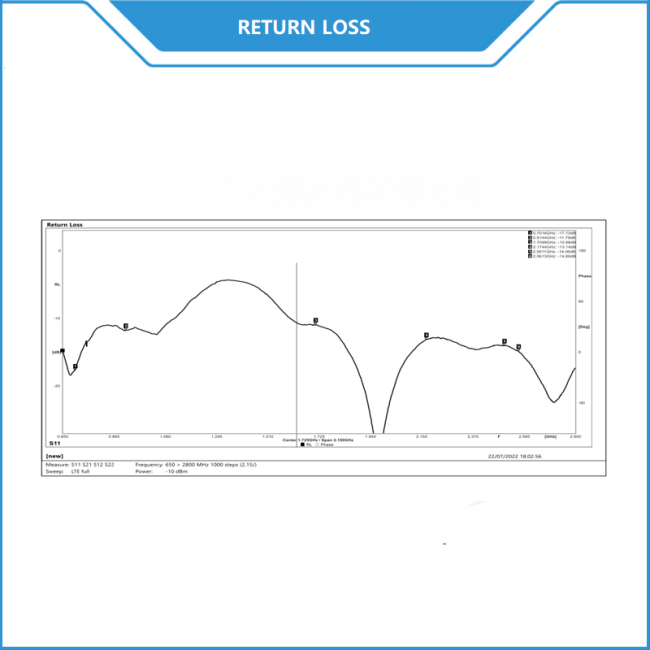

6. Return Loss

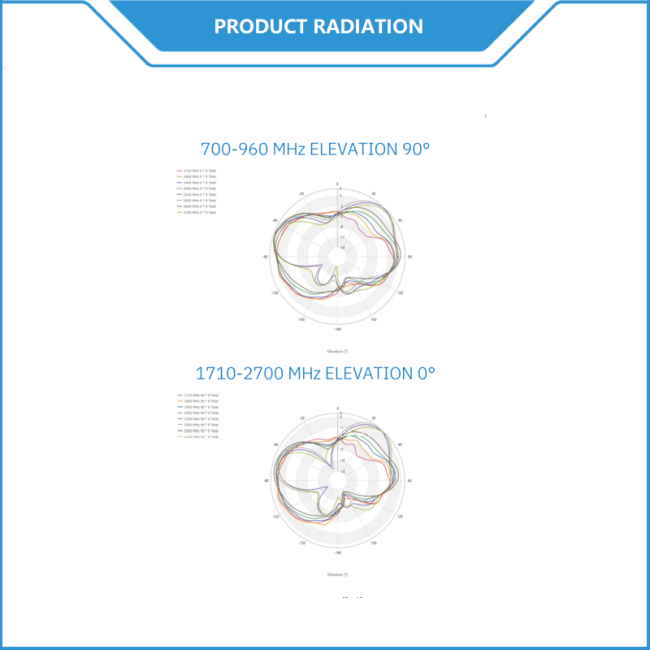

7. Radiation Pattern
