Internal 28dBi Active Microstrip patch BEIDOU Galileo GPS GLONASS Antenna

Price Negotiable

Price: USD$ 1 / PCS - USD$ 1.2 / PCS

MOQ: 10 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

1. Product Name

Internal 28dBi Active Microstrip GPS/GLONASS/BEIDOU/Galileo Antenna

2. Description

--2.1 Applications

GPS/GLONASS/BEIDOU Navigation System

Vehicle Location System

Mobile Management

Telematices

Fleet Management

Tracking

--2.2 Features

Two Stage LNA with Filter

Small Footprint

L1 Band

28dBi High Gain

Active Type

3. Introduction

This is a high performance GPS active antenna with low consumption. It is designed to survive in all types of shells which makes it ideal for telematics , fleet management, navigation, tracking and other applications that requires a compact high performance internal GPS antenna

4. Specs

Electrical Properties

1.1	Frequency	1575-1602 MHz
1.2	Gain (peak)	28 dBi

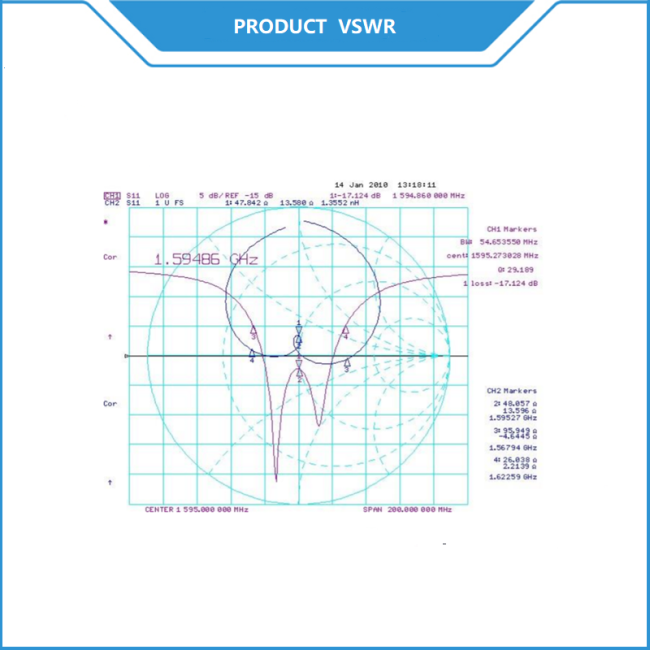

1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum

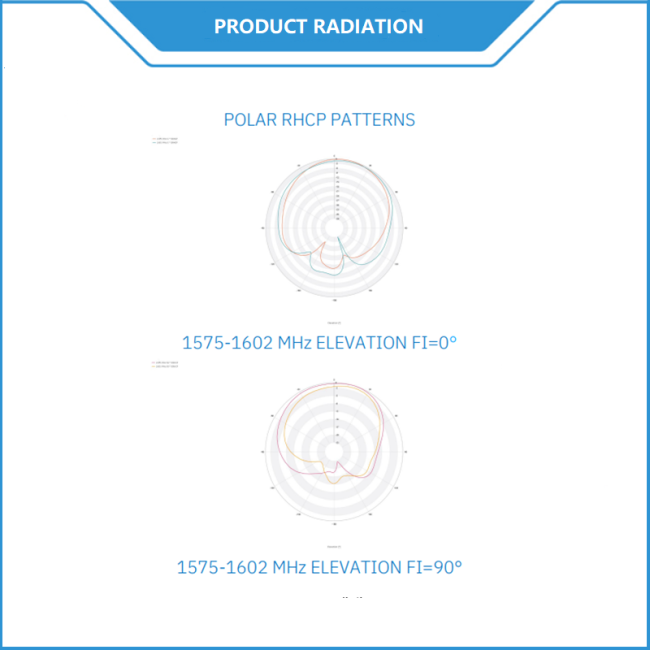

1.5	Radiation	Omni-Directional
1.6	Polarization	RHCP
1.7	Input Voltage	3-5 V

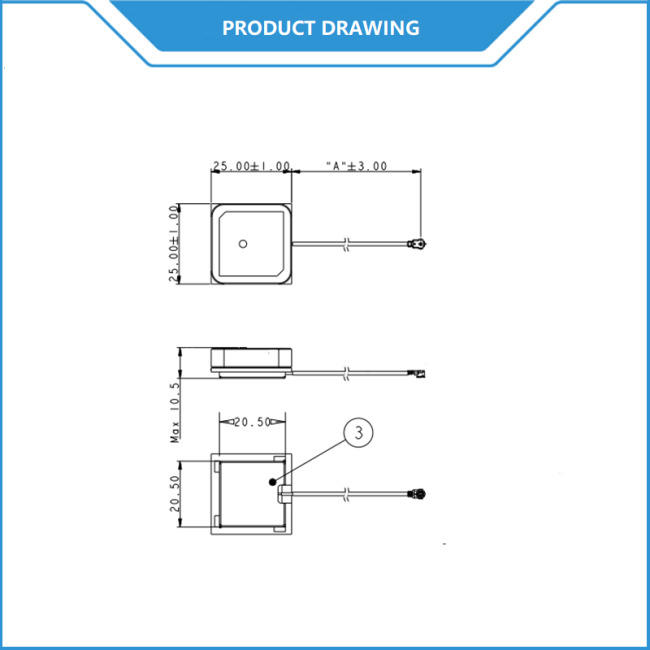

Mechanical Properties

2.1	Cable	RG1.13 / RG1.37
2.2	Antenna Cover
2.3	Antenna Base
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	IPEX (U.FL)
