External Cellular 2G 3G Antenna GSM SMA Direct Mount Stubby Antenna

Price Negotiable

Price: USD$ 0.3 / PCS - USD$ 0.35 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

External Cellular 2G 3G Antenna GSM SMA Direct Mount Stubby Antenna

1. Product Name

External Cellular 2G(GSM) SMA Direct Mount Stubby Antenna

2. Description

--2.1 Applications

Cellular Networks

GSM 850 , GSM 900 , GSM 1800, GSM 1900

UMTS

M2M Applications

Telemetering

Remote Control

Maintenance

--2.2 Features

GSM Quad-Band 800/900/1800/1900 MHz

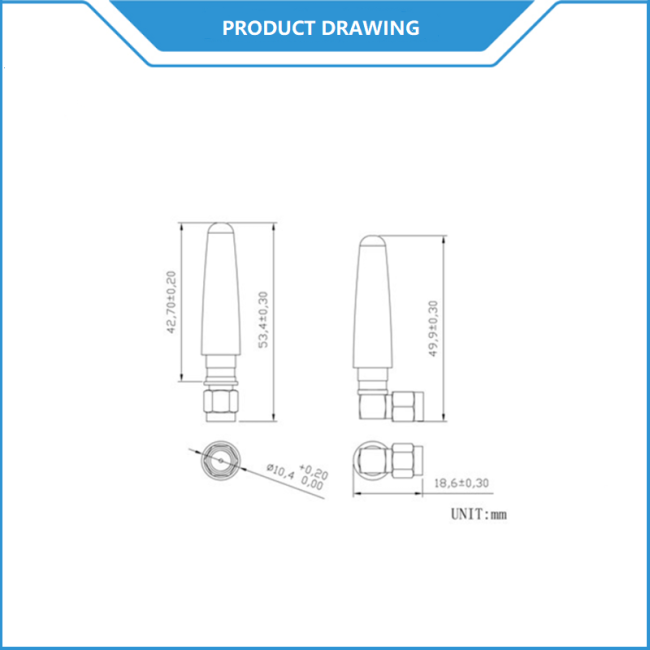

51mm length
TPE housing
SMA male connector
RoHS Compliant

3. Introduction

This quad- band GSM antenna is 51mm long which has 2dBi of Peak gain and 50Ω impedance so it will work fantastically with just about any 850/900/1800/1900MHz wireless receiver/transmitter such as any Cellular or GSM/GPRS device.

4. Specs

Electrical Properties

1.1	Frequency	900/1800 MHz
1.2	Gain (peak)	0dBi

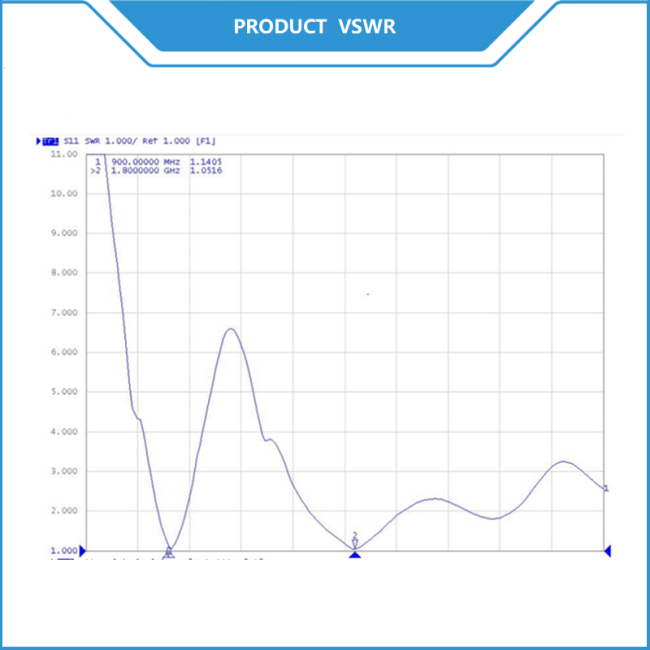

1.3	V.S.W.R	2.5 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-Directional
1.6	Polarization	Linear
1.7	Power Handling	1W

Mechanical Properties

2.1	Cable
2.2	Antenna Cover	TPE
2.3	Antenna Base	Brass
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	RA-SMA Plug / SMA Plug
