External Low Profile Vhf 2G 3G 4G LTE Antenna Waterproof Screw Mount Antenna

Price Negotiable

Price: USD$ 1 / PCS - USD$ 1.1 / PCS

MOQ: 10 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

1. Product Name

External Low Profile 2G 3G 4G LTE Waterproof Screw Mount Antenna

2. Description

--2.1 Applications

4G/LTE (699-960/1710-2690 MHz)

3G Cellular Bands

2G Cellular Bands

CDMA Cellular Bands

GALILEO E1 (1575.42 MHz)

GPS (1575.42 MHz)

GLONASS (1592 - 1610 MHz)

--2.2 Features

3dBi Gain

700-2700MHz

Screw Mount

Ground Plane Indepedent

Connector Optional

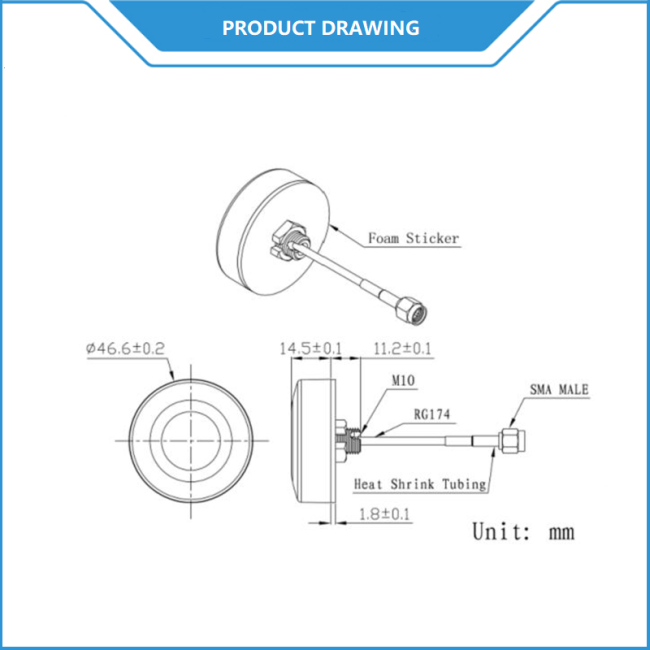

Dimensions : 46*17 mm

3. Introduction

The 4G SMA through mount antenna is ideal for 700-2700 MHz wireless applications such as Bluetooth and Wireless LAN. At 16mm in height omni-directional 3.3dBi peak gain across all bands ensures constant reception and transmission. The antenna structure is designed for robust handling and the housing is made with PC+ABS giving superior environmental reliability and a quality finish. Connector mount is fully customized.

4. Specs

Electrical Properties

1.1	Frequency	700-2700MHz
1.2	Gain (peak)	3 dBi

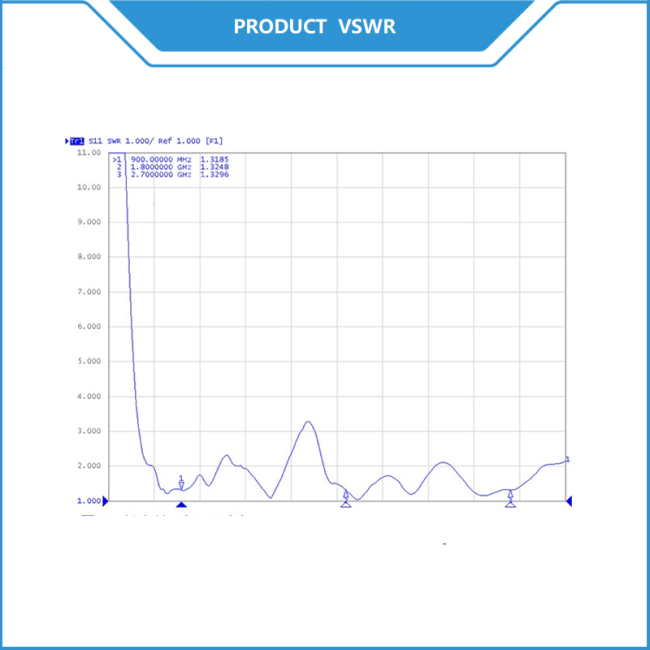

1.3	V.S.W.R	2.2 MAX
1.4	Return Loss	-10dB Maximum

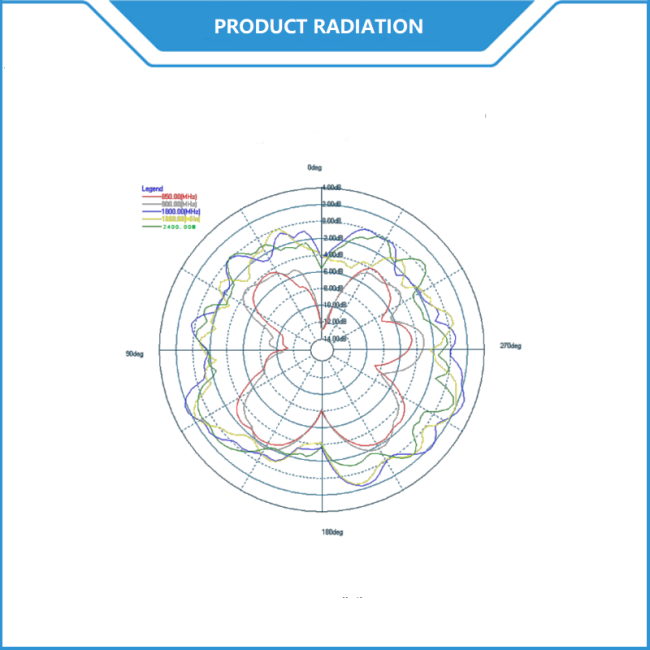

1.5	Radiation	Omni-Directional
1.6	Polarization	Linear
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG174
2.2	Antenna Cover	ABS
2.3	Antenna Base	M12 Screw Mount
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black / White
2.7	Connector	SMA Plug
