External Low Profile WIFI / WLAN I-Bar Adhesive Mount 5.8GHz Antenna
1. Product Name
External Low Profile WIFI / WLAN I-Bar Adhesive Mount 5.8GHz Antenna
2. Description
--2.1 Applications
First-Tier Automotive Applications
Aftermarket
Telematics
WLANs
--2.2 Features
WLAN 5.8GHz Adhesive Mount Antenna
3m RG174 Cable with Optional Connector
Low Profile For Easy Installation
Fully Customized Cable and Connector
115*22 mm
3. Introduction
This I-Bar antenna is a robust and low profile antenna operating on 5.8GHz WIFI applications.
Also, it has a slim design which allows it embedded and convenient installation in any application.
4. Specs
Electrical Properties
| 1.1 | Frequency | 5150-5850MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 2W |
Mechanical Properties
| 2.1 | Cable | RG 174 |
| 2.2 | Antenna Cover | ABS |
| 2.3 | Antenna Base | Sticker |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black / White |
| 2.7 | Connector | SMA Plug / TNC / FAKRA |

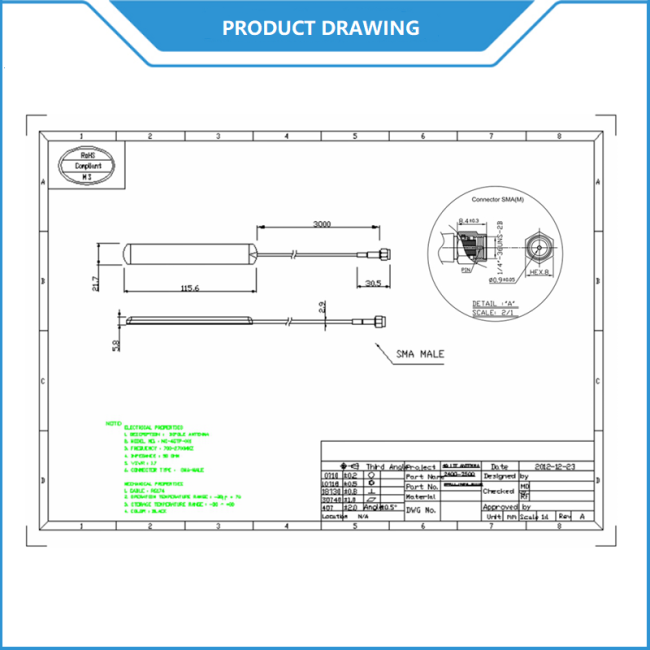

5. Antenna Drawing

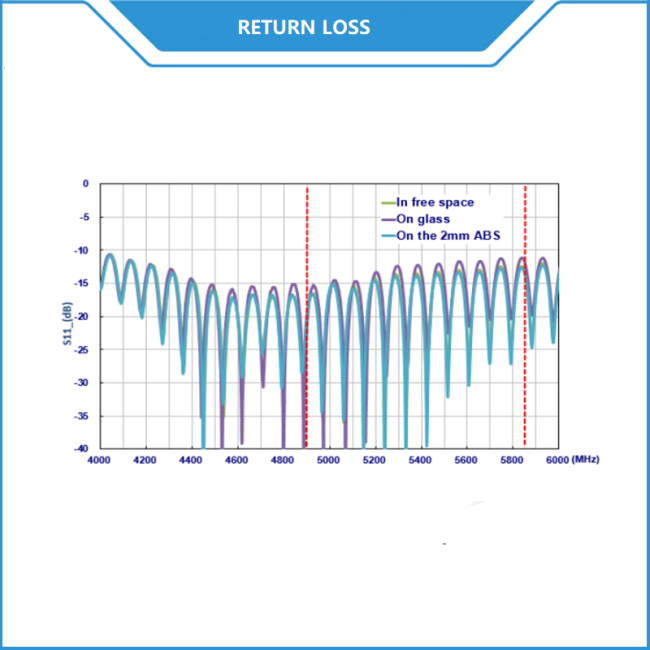

6. VSWR

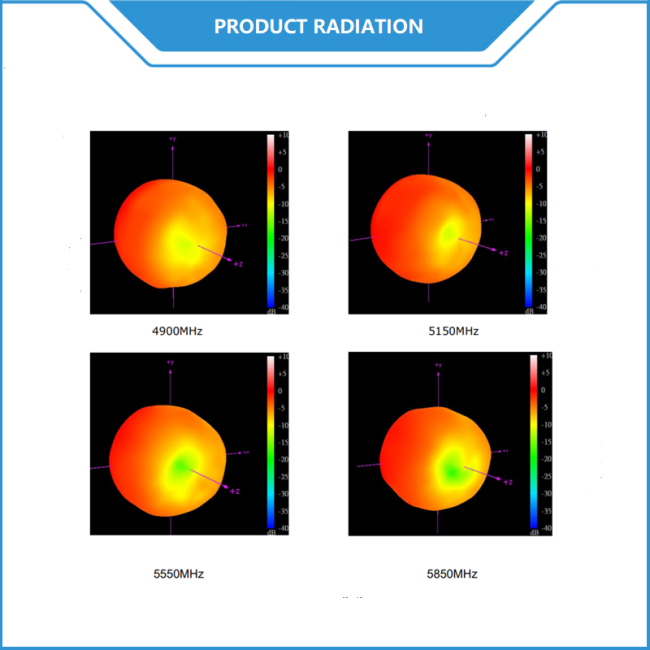

7. Radiation Pattern
