Embedded Ceramic Patch Antenna Internal 5dBi Fiberglass Antenna ISM Band 915MHz
Internal 5dBi ISM Band 915MHz Embedded Ceramic Patch Antenna
1. Product Name
Internal 5dBi ISM Band 915MHz Embedded Ceramic Patch Antenna
2. Description
--2.1 Applications
915MHz ISM Band
RFID Readers
Short Range 915MHz Mesh Networks
--2.2 Features
High Efficiency
902-928MHz ISM Band
7dBi Peak Gain
90.5*90.5*7.5 mm in Dimensions
MMCX or SMA Connector
3. Introduction
The 7dBi embedded ceramic patch antenna with cable and connector is designed for ISM 915MHz Band fixed wireless applications where it can be mounted to a metal panel to function as ground underneath the antenna.
4. Specs
Electrical Properties
| 1.1 | Frequency | 902-928MHz |
| 1.2 | Gain (peak) | 7dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | RHCP |
| 1.7 | Power Handling | 5W |
Mechanical Properties
| 2.1 | Cable | RG178 |
| 2.2 | Antenna Material | Ceramic |
| 2.3 | Dimensions | 90.5*90.5*7.5 mm |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | White and Green |
| 2.7 | Connector | SMA Plug / MMCX |

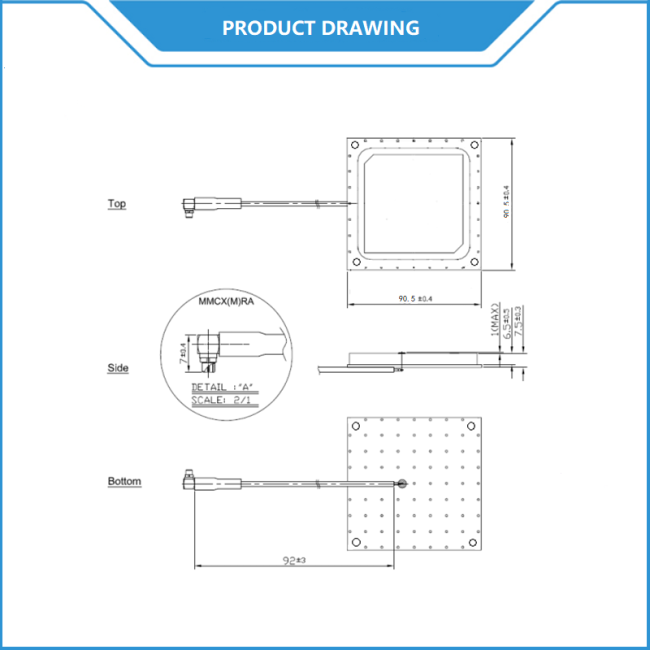

5. Antenna Drawing

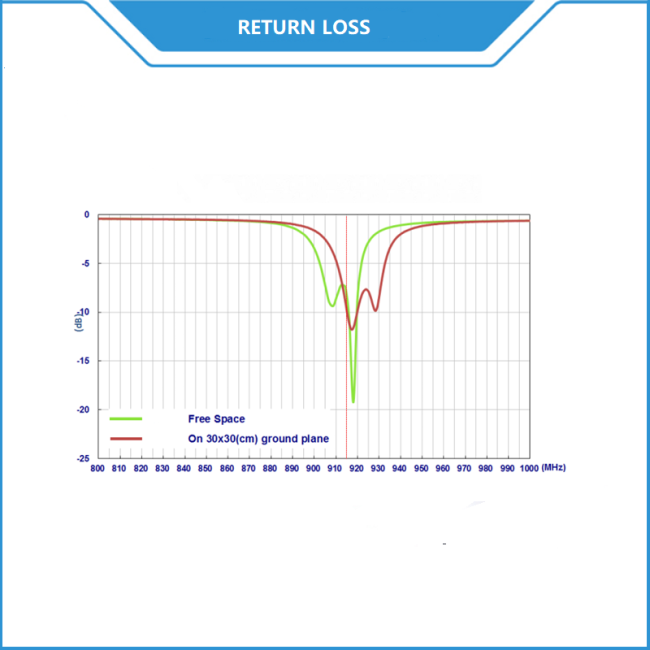

6. Return Loss

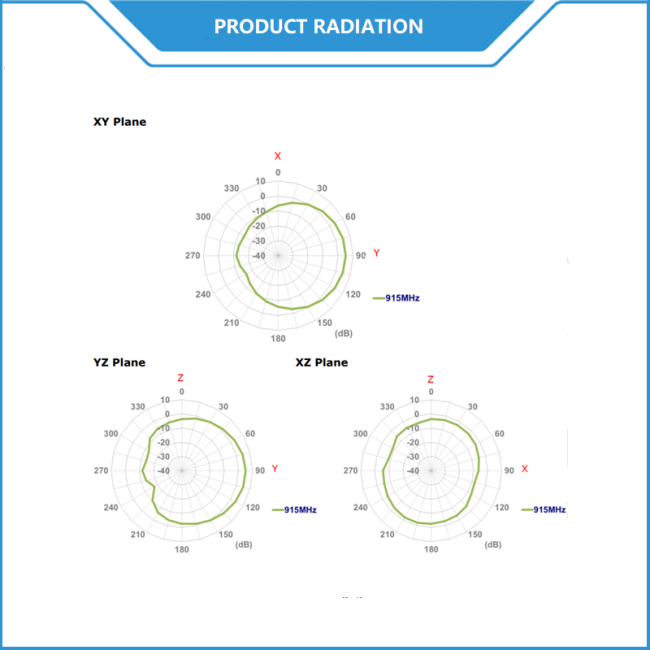

7. Radiation Pattern
