External Miniature 0 DBi UHF RFID Antenna 915MHz ISM Band Straight Monopole Terminal Antenna
External Miniature 0dBi 915MHz ISM Band Straight Monopole Terminal Antenna
1. Product Name
External Miniature 0dBi 915MHz ISM Band Straight Monopole Terminal Antenna
2. Description
--2.1 Applications
Remote Mesh Networks
NB-IoT
Public Safety
Smart Meters
--2.2 Features
0dBi Peak Gain
28mm in Length
High Efficiency
Monopole Terminal Antenna
SMA Male Connector
3. Introduction
This is a high efficient SMA ISM band omni antenna operating at 915MHz, with a very high-performance ideal for maintaining constant network connectivity. This antenna is designed for LoRa & Sigfox IoT applications in mind. This also is ideal for telematics systems, remote surveillance, asset tracking and any IoT system applications.
The high performance makes it ideal for the most challenging installations. This SMA mount antenna is easy to install with maximum durability offering IP65 rated housing and anti-rotation mounting .
4. Specs
Electrical Properties
| 1.1 | Frequency | 915 MHz |
| 1.2 | Gain (peak) | 0 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 1W |
Mechanical Properties
| 2.1 | Cable | |
| 2.2 | Antenna Cover | TPU |
| 2.3 | Antenna Length | 28 mm |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug |

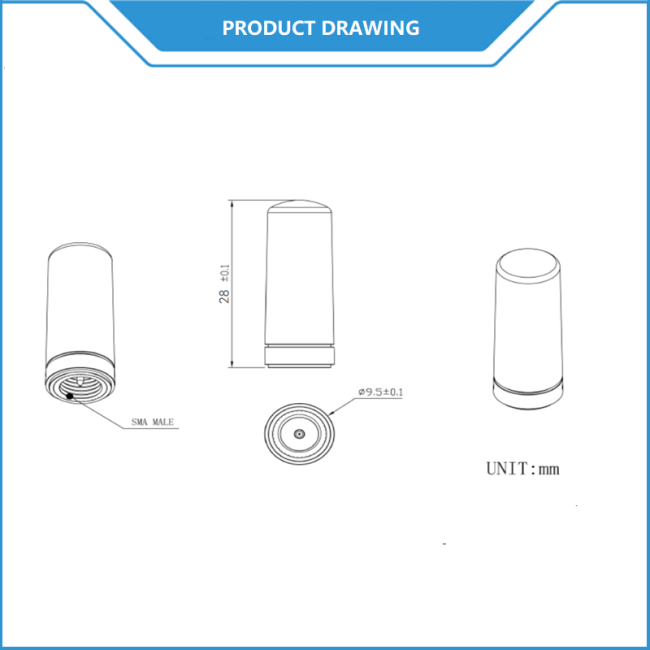

5. Antenna Drawing
6. VSWR
7. Radiation Pattern
