External UHF RFID Antenna 3dBi ISM 915MHz Terminal Mount Dipole Antenna
External 3dBi ISM 915MHz Terminal Mount Dipole Antenna
1. Product Name
External 3dBi ISM 915MHz Terminal Mount Dipole Antenna
2. Description
--2.1 Applications
Smart Metering
Remote Monitoring
Industrial IoT
Connected Enterprise
--2.2 Features
3dBi Gain
ISM 915MHz Band Operation
High Efficiency up to 60%
Hinged and Rotated
Height :198 mm
3. Introduction
This is a high performance 915MHz terminal SMA mount dipole antenna which has 198mm length and 13mm in diameter and also can be mounted straight or right angle.
This antenna performs quite well in free space, making it an ideal solution in areas where there may be no ground plane .
4. Specs
Electrical Properties
| 1.1 | Frequency | 902-928 MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 5W |
Mechanical Properties
| 2.1 | Cable | RG178 |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | PC+PBT |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black / White |
| 2.7 | Connector | SMA Plug |

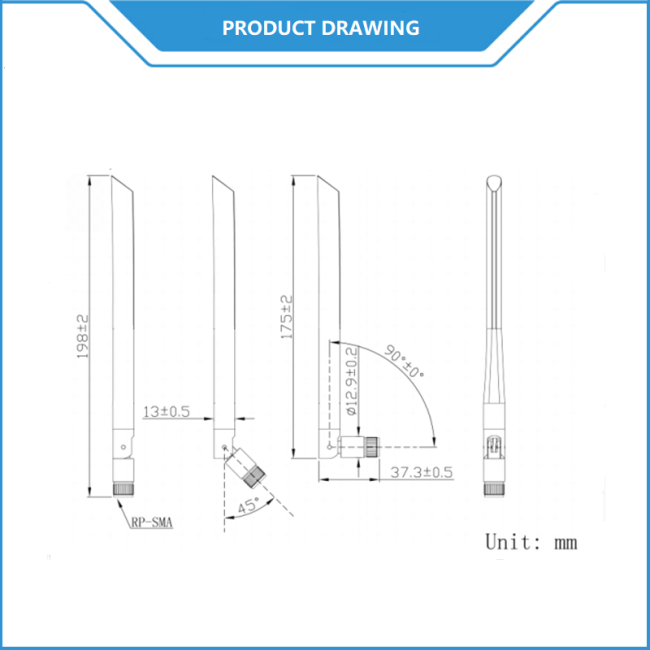

5. Antenna Drawing

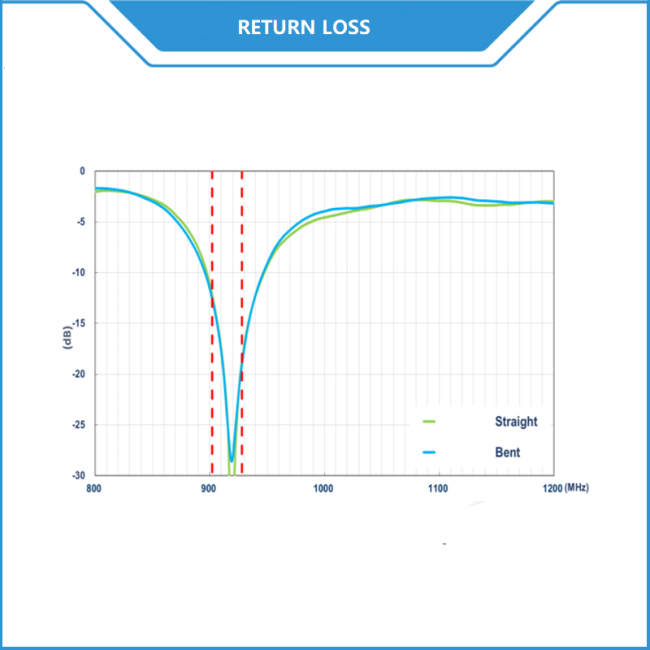

6. VSWR

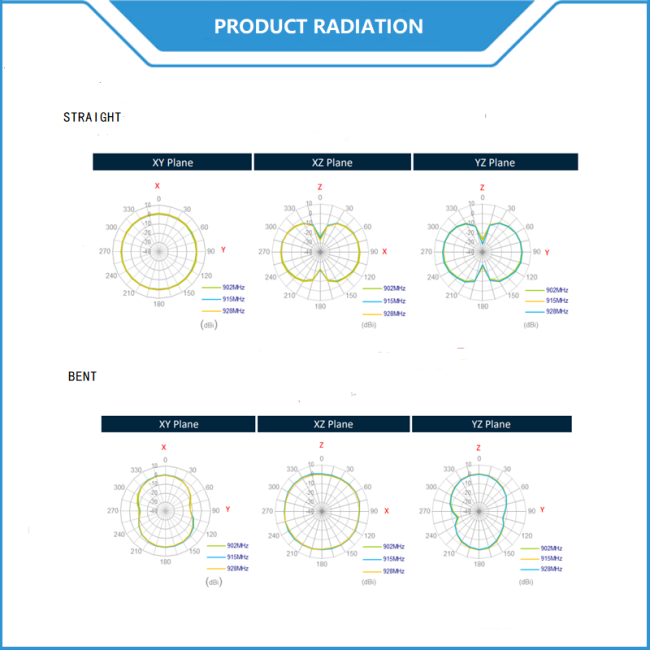

7. Radiation Pattern
