915MHz 3dBi ISM Band Omni Directional Outdoor Fiberglass Antenna
Outdoor 915MHz 3dBi ISM Band Omni Directional Fiberglass Antenna
1. Product Name
Outdoor 915MHz 3dBi ISM Band Omni Directional Fiberglass Antenna
2. Description
--2.1 Applications
Metering
Industrial / Environmental Monitoring
Remote Asset Monitoring
Mesh Network
--2.2 Features
3dBi Peak Gain
Omni Directional
360mm in Length
Efficiency > 60 %
Connector : N Male or N Female
Wall / Pole Mount (U Bracket)
3. Introduction
This is a fiberglass omni directional outdoor antenna operating in 902-928MHz ISM band, which is designed to offer long distance coverage .
It is one of the most widely used license free ISM bands with 3dBi Peak Gain.
4. Specs
Electrical Properties
| 1.1 | Frequency | 902-928MHz |
| 1.2 | Gain (peak) | 3dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 50 W |
Mechanical Properties
| 2.1 | Cable | |
| 2.2 | Antenna Cover | Fiberglass |
| 2.3 | Antenna Base | U Bracket |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | N Male / N Female |

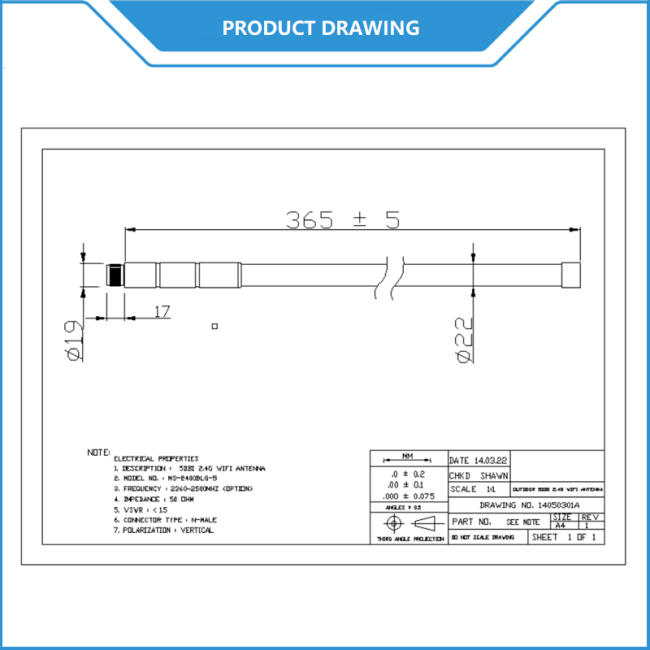

5. Antenna Drawing

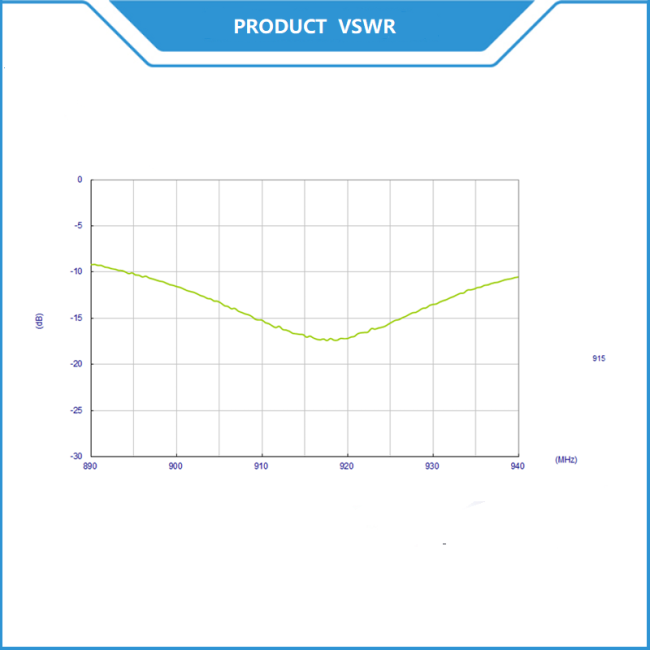

6. VSWR

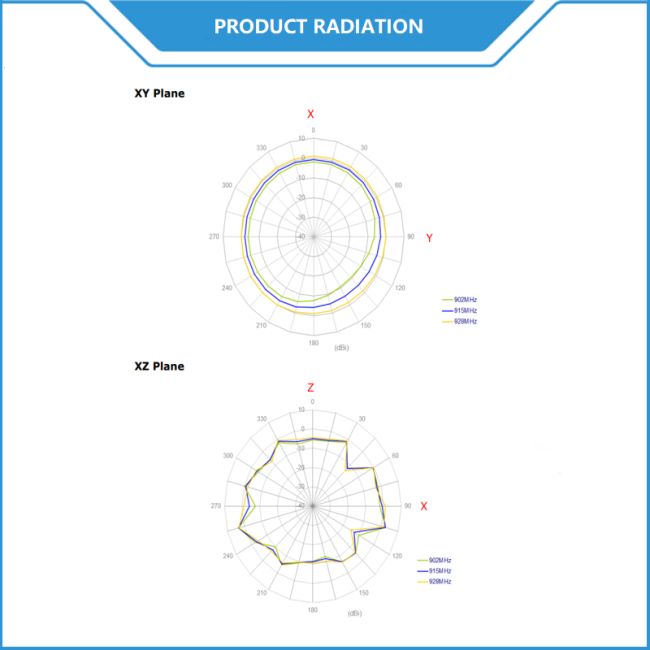

7. Radiation Pattern
