External Cellular / LTE (NB-IoT) Connector Mount Antenna

Price Negotiable

Price: USD$ 0.5 / PCS - USD$ 0.55 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

1. Product Name

External Cellular / LTE (NB-IoT) Connector Mount Antenna

2. Description

--2.1 Applications

Infotainment Systems

HD Video Transmission

Dash Cameras

Connected Cars

Fleet Management

Gateways

Public Transportation

Logistics

--2.2 Features

Sustained High Efficiency and Performance

NB-IoT and Portable Devices

Ground Plane Independent

3. Introduction

This IoT connector mount antenna is designed for compact installations with no compromise on efficiency and performance. It is suitable for Low Power Wide Area Network NB-IoT applications where devices require constant connectivity within frequencies operating between 698-960/1710-2170MHz. It is also ideal for HD video transmission, dash cameras, fleet management, logistics, routers and so on.

4. Specs

Electrical Properties

1.1	Frequency	698-960/1710-2170MHz
1.2	Gain (peak)	2dBi

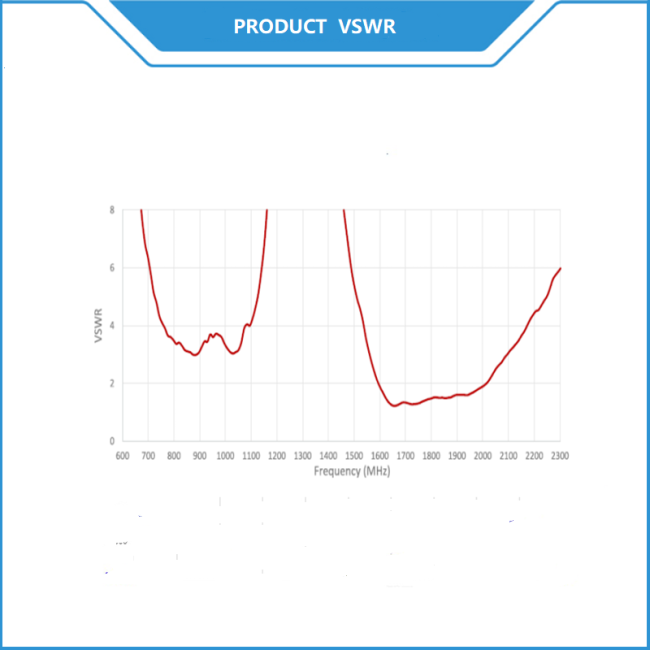

1.3	V.S.W.R	3.5 MAX
1.4	Return Loss	-5dB Maximum

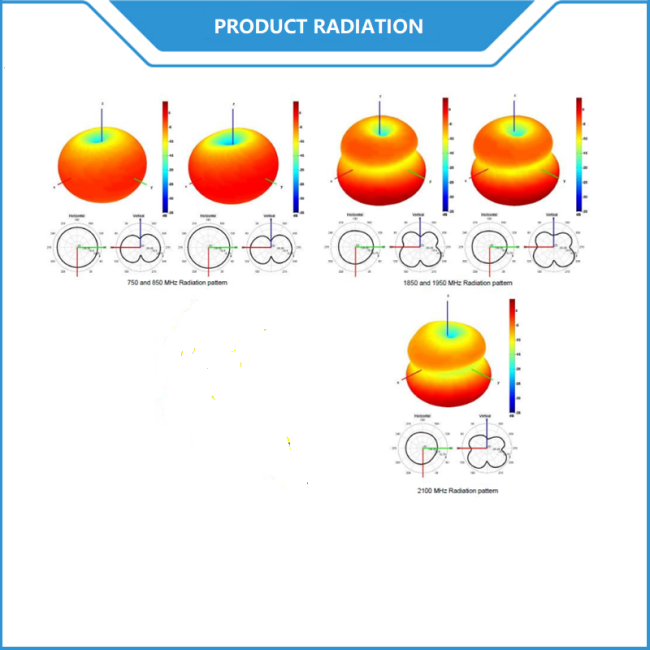

1.5	Radiation	Omni-directional
1.6	Polarization	Linear
1.7	Power Handling	2W

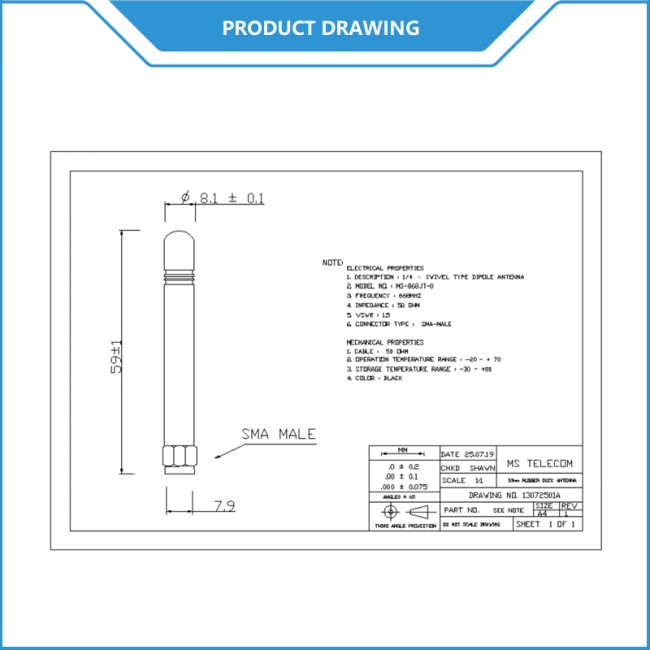

Mechanical Properties

2.1	Cable
2.2	Antenna Cover	TPE
2.3	Antenna Base	Brass
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug
