External 915MHz UHF RFID Antenna ISM Band Connector Mount Terminal Vertical Dipole Antenna
External 915MHz ISM Band Connector Mount Terminal Dipole Antenna
1. Product Name
External 915MHz ISM Band Connector Mount Terminal Dipole Antenna
2. Description
--2.1 Applications
915MHz ISM Applications
Industrial
Scientific
Medical Equipments
Remote Monitoring
M2M
--2.2 Features
2dBi Gain
Dedicated ISM Antenna
915MHz
SMA Plug
108*11mm in Dimensions
3. Introduction
This is a dedicated 915MHz ISM band antenna which combines good performance with a small size, enabling its use with devices from the Industrial, Scientific or Medical equipment. In addition, the antennas can be used for mobile communications on board vessels.
Terminated with an SMA male connector, it is ideally suited to applications requiring a simple, cable free set up.
The knuckle design allows the antenna to be positioned to take best advantage of the incoming signal. Allowing straight, 45° and 90° positions along with 360° rotation. The omni directional, radiating element is capped with a black high-grade rubber mould.
4. Specs
Electrical Properties
| 1.1 | Frequency | 902-928 MHz |
| 1.2 | Gain (peak) | 2 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Linear / Vertical |
| 1.7 | Power Handling | 5 W |
Mechanical Properties
| 2.1 | Cable | RG178 |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | Connector Mount |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug |

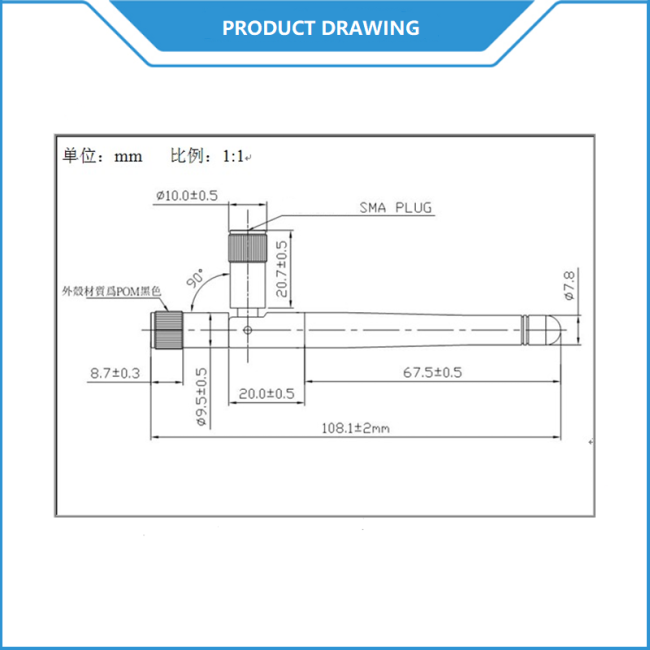

5. Antenna Drawing

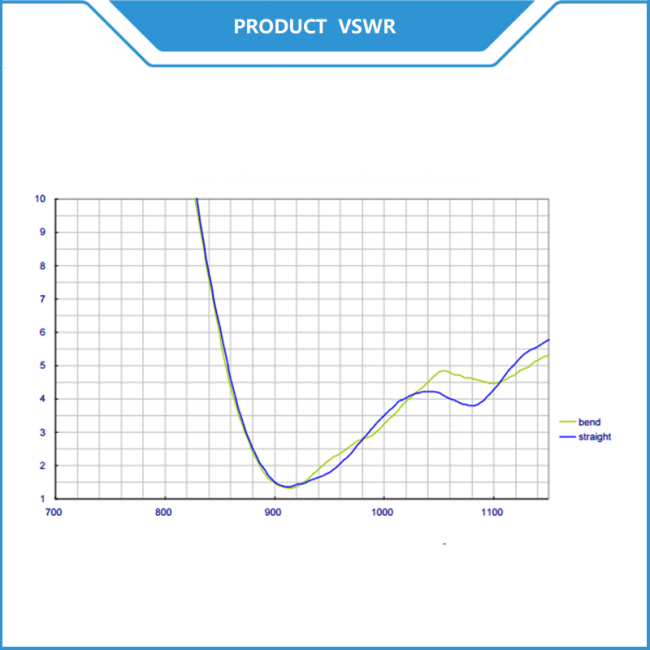

6. VSWR

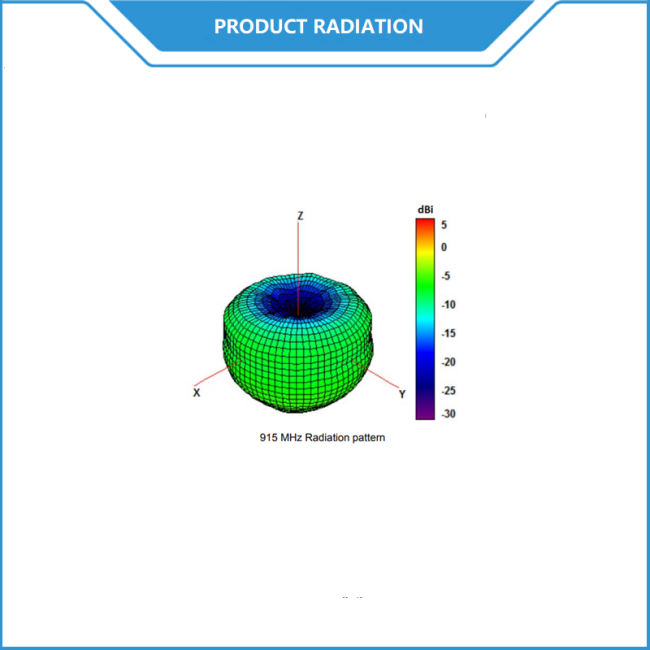

7. Radiation Pattern
