Screw Mount ISM Band Antenna Low Profile Waterproof 915 Mhz High Gain Antenna
Low Profile Waterproof 915MHz ISM Band Screw Mount (Fixed Mount) Antenna
1. Product Name
Low Profile Waterproof 915MHz ISM Band Screw Mount (Puck Mount) Antenna
2. Description
--2.1 Applications
LoRa
ISM Applications
Network Devices
Smart Cities
M2M
Consumer Tracking
--2.2 Features
3dBi High Gain
Low Profile
Heavy Duty Screw Mount
IP65 Rated- Waterproof
RG174 Coaxial Cable
3. Introduction
This 915MHz ISM band antenna is a high performance brass thread-mount antenna for outdoor external uses on vehicles and assets . Also, the omni directional high gain ensures constant reception and transmission.
The antenna can be mounted on metal surface.
4. Specifications
Electrical Properties
| 1.1 | Frequency | 902-928 MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Linear / Vertical |
| 1.7 | Power Handling | 5W |
Mechanical Properties
| 2.1 | Cable | RG174 |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | Brass |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black / White |
| 2.7 | Connector | SMA Plug |
5. Antenna Drawing
6. VSWR

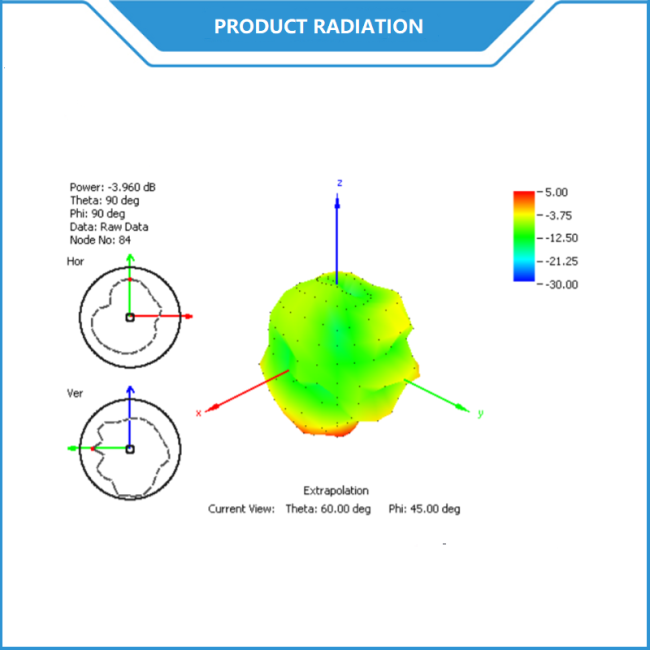

7. Radiation Pattern
