Internal LoRa Sigfox ISM Flexible PCB Antenna 868MHz Directional Antenna

Price Negotiable

Price: USD$ 0.3 / PCS - USD$ 0.35 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

Internal LoRa / Sigfox Flexible PCB ISM 868MHz Antenna

1. Product Name

Internal LoRa / Sigfox Flexible PCB ISM 868MHz Antenna

2. Description

--2.1 Applications

Medical Devices

Smart Monitoring

Smart Home

LoRa / Sigfox Networks

--2.2 Features

868MHz ISM Band

Covers LoRa , Sigfox and ISM 868MHz

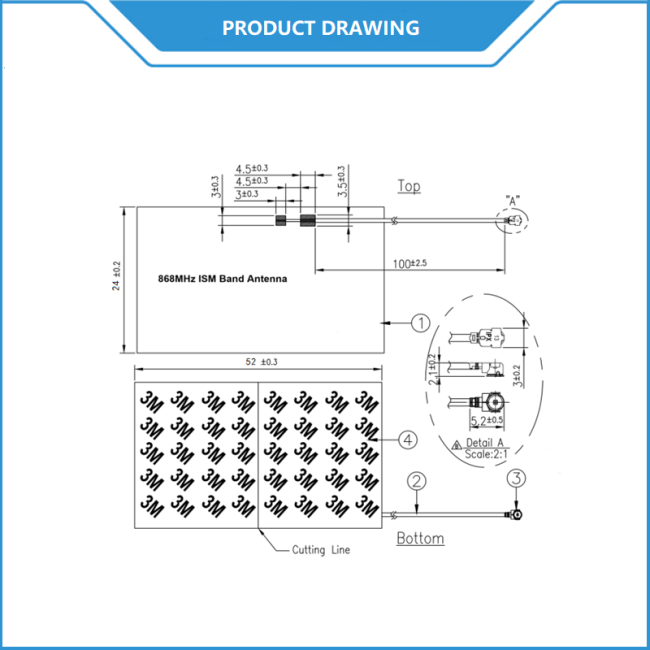

52*24 mm Dimensions

RG1.13 / RG1.37 Coaxial Cable Optional

IPEX (U.FL)

3. Introduction

This is a rectangular flexible pcb antenna designed to be used at 868MHz ISM band on the LoRa/Sigfox network and ISM network. It has been designed to be flexible and fit in many different enclosures and be mounted on many different surfaces. It comes with 3M adhesive for ease of installation and is fed by cable and connector.

4. Specs

Electrical Properties

1.1	Frequency	868 MHz
1.2	Gain (peak)	1.5dBi

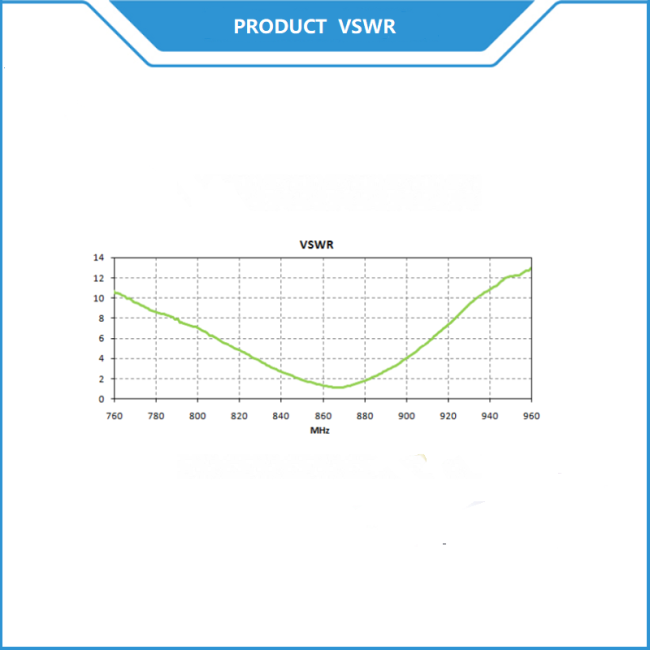

1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-directional
1.6	Polarization	Linear / Vertical
1.7	Power Handling	2W

Mechanical Properties

2.1	Cable	RG1.13 / RG1.37
2.2	Antenna Cover	Polymer
2.3	Antenna Base	3M Sticker
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	IPEX (U.FL)
