External 8dBi High Gain Low Profile Dual Port 4G LTE MIMO Antenna

Price Negotiable

Price: USD$ 6 - USD$ 6.5

MOQ: 10PCS

Delivery Time: 5-8 Days

Brand: MS

Product Description

1. Product Name

External 8dBi High Gain Low Profile Dual Port 4G LTE MIMO Antenna

2. Description

This is a dual-port multiband omni-directional LTE antenna. This antenna is designed for 4G LTE covering 698-2700 MHz. It is an ultra-low profile rugged antenna used for a variety of cellular LTE applications. The antenna features custom cable length and connectors options. This is an ideal antenna for many NB-IoT installations.

3. Features

- Dual Port Multiband

- Omni Directional 4G LTE Antenna

- Covers Frequencies: 698-2700MHz

- Low Profile

- Rugged Design

4. Applications

- Cellular, 4G LTE and Wimax Applications

- Modems, Routers and Gateways

- Security

- Asset Tracking

- NB-IoT

5. Specification

Electrical Properties

1.1	Frequency	698-2700MHz
1.2	Gain (peak)	8 dBi

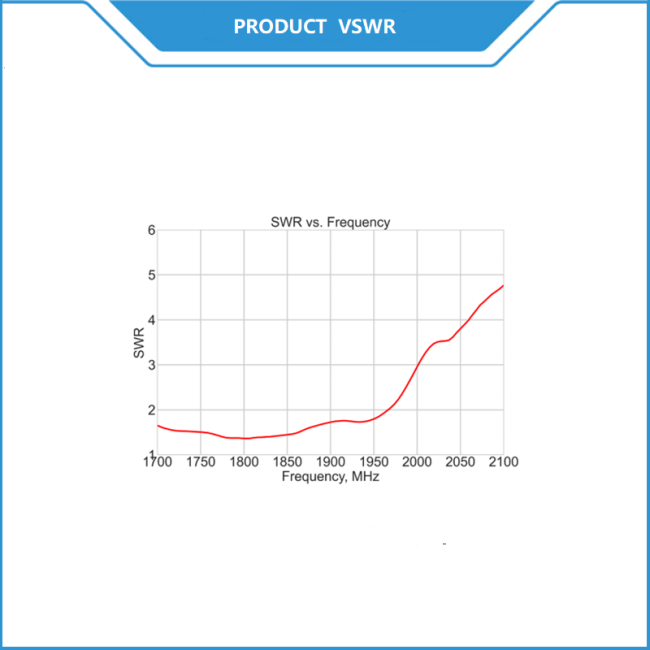

1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-Directional
1.6	Polarization	Vertical
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG174
2.2	Antenna Cover	PC+PBT
2.3	Antenna Base	Sucker
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	White
2.7	Connector	SMA / TS9 / CRC9 Male
