Car Active Portable Stereo Radio FM DAB Antenna
1. Product Name:
Car Active Portable Stereo Radio DAB / DAB+ Antenna
2. Description
This active DAB+ antenna is designed to receive digital broadcasting digital radio. The integrated amplifier improves the reception signal.
This DAB DAB+ active patch antenna is an ABS IP65 patch antenna with a self-adhesive fixing strip designed to achieve excellent placement strength on any non-metallic surface. A superbly engineered integrated dipole amplified PCB provides excellent DAB performance at 150MHz – 240MHz. It is supplied with 3m of low loss RG174 cable and an SMB Female Right Angle or SMA connector.
3. Introduction
-- 3.1 Applications:
Car Navigation Devices
Car Radio
Active Portable Stereo Devices
-- 3.2 Features:
15dBi High Gain
Active Input Voltage 5-12V
SMA / MCX / SMB / FAKRA Connector Optional
RoHS Compliant
4. Specs
Electrical Properties
| 1.1 | Frequency | 163-240 / 1452-1492 MHz |
| 1.2 | Gain (peak) | 15 dBi |
| 1.3 | V.S.W.R | 2.5 MAX |
| 1.4 | Return Loss | -5dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 1W |
Mechanical Properties
| 2.1 | Cable | RG-174 Coaxial Cable |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | 3M Sticker |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA / MCX / SMB / FAKRA |
5. Antenna Drawing

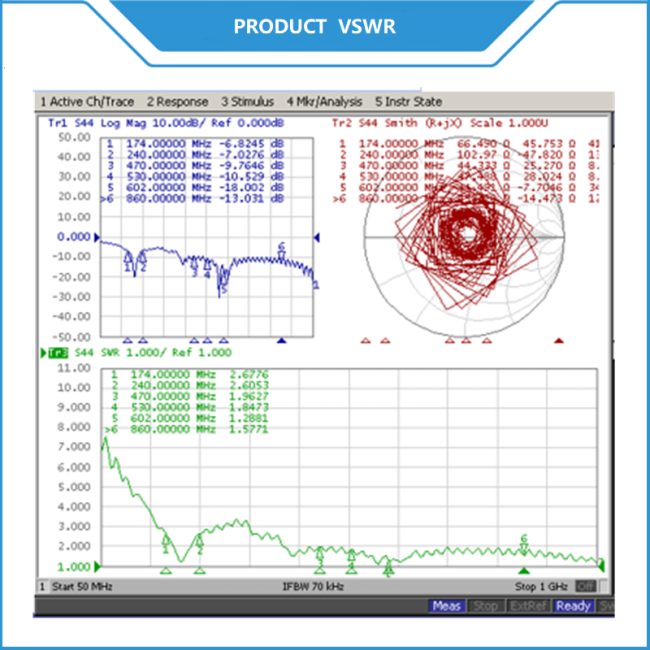

6. VSWR For Passive Test
7. Package
