High Gain UHF RFID Antenna
1. Product Name:
Outdoor 3dBi High Gain Omni-Directional 868MHz Fiberglass Antenna
2. Description:
Low gain antennas (3 dBi) have a broad radiation pattern and are best for rugged terrain or a dense urban environment. Your signal is less likely to be blocked by obstacles such as buildings and hills tight to your location.
3. Introduction
This 868MHz ISM Outdoor antenna is designed to a have a long distance coverage. Omni-directional high gain across all bands ensures constant reception and transmission. The UV resistant coating with fiberglass housing makes this antenna suitable to be mounted in robust outdoor environment, pole-mounting and wall- mounting bracket is included.
--3.1 Applications:
Metering and Mesh Network
M2M Applications
Telemetry / Datalogging
Remote Asset Monitoring
868MHz Access Networks
--3.2 Features:
N Type Female / N Type Male
Wall Mount or Pole Mount
Covering LoRa & ISM Band Frequencies
Omni-Directional
RoHS compliant
4. Specs
Electrical Properties
| 1.1 | Frequency | 868 MHz |
| 1.2 | Gain (peak) | 3 .2 dBi |
| 1.3 | V.S.W.R | 2MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear |
| 1.7 | Power Handling | 20 W |
Mechanical Properties
| 2.1 | Cable | RG-58 Coaxial Cable |
| 2.2 | Antenna Cover | Fiberglass |
| 2.3 | Antenna Base | Alu |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black or White or Grey |
| 2.7 | Connector | N Male or N Female |

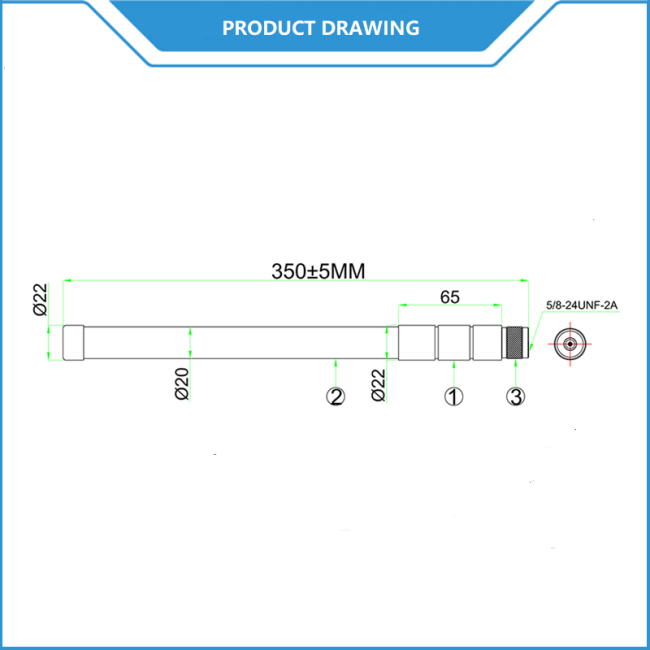

5. Antenna Drawing

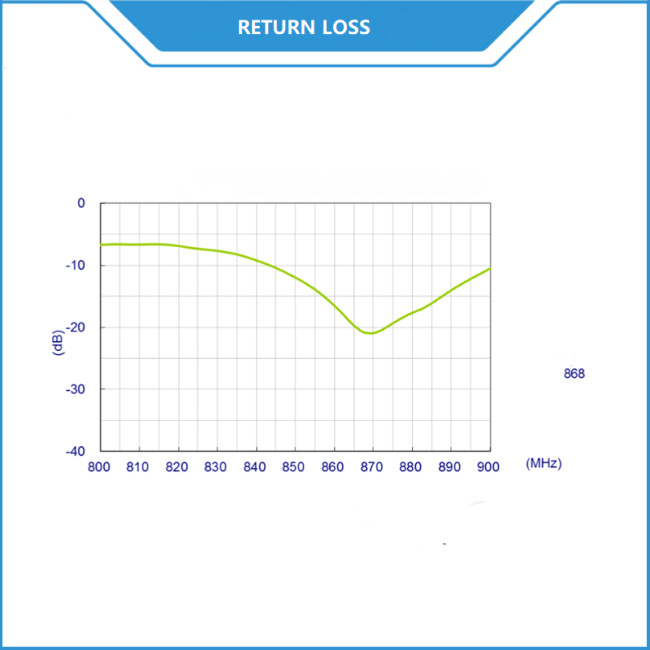

6. Return Loss

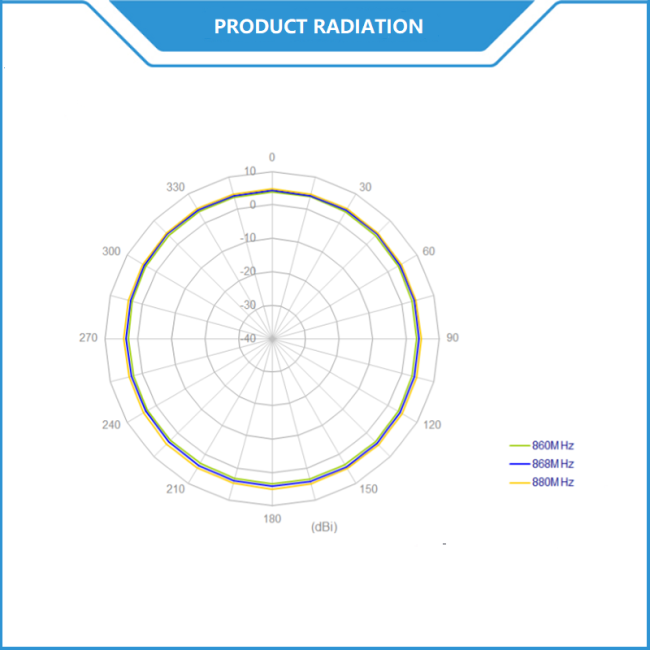

7. Radiation Pattern
