1. Product Name:
    External Magnetic Mount 3-5V Active GPS/GLONASS Antenna

2. Description
    This is a an ultra small footprint GPS active antenna, ideal for the smallest of spaces which is an adhesive mounting antenna (not magnetic) and is at home in virtually any environment. It is IP65 rated with a wide operating temperare range of -40 to +85°C and is suitable for many ‘rugged’ and vibrating situations. It comes as standard in GPS 1574.5MHz form and 1, 3 and 5m cable and SMA male connector. Also, it can be supplied as a GPS/GLONASS antenna and alternative cable lengths and connector style

3. Introduction
     This is a high performance GPS active antenna with low consumption. It is designed to survive all types of weather with IP 65 rating which makes it ideal for telematics , fleet management, navigation, tracking and other applications that requires a compact high performance GPS antenna.

--3.1 Applications:

           Telematices

           Fleet management

           Navigation

           Tracking


--3.2 Features:

           Compact Size

           High gain, low noise design

           Low current consumption

           IP65 Rated

           Magnetic mount


4. Specs

Electrical Properties

Mechanical Properties

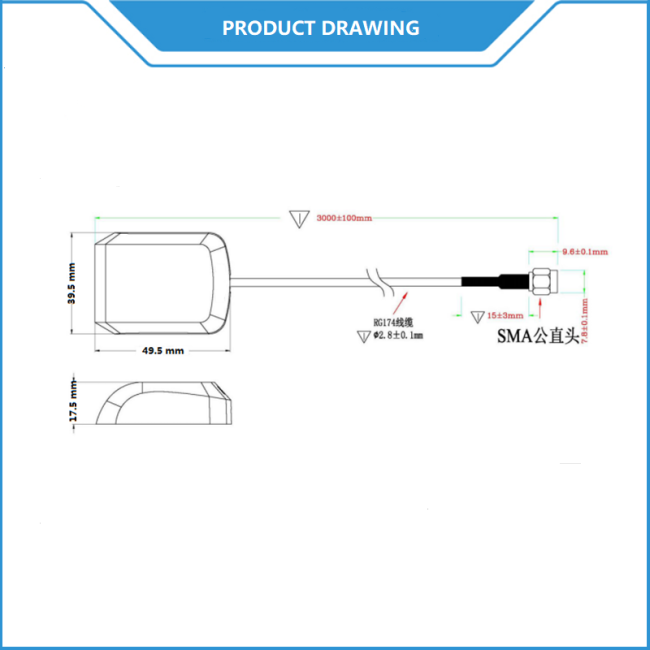

5. Antenna Drawing

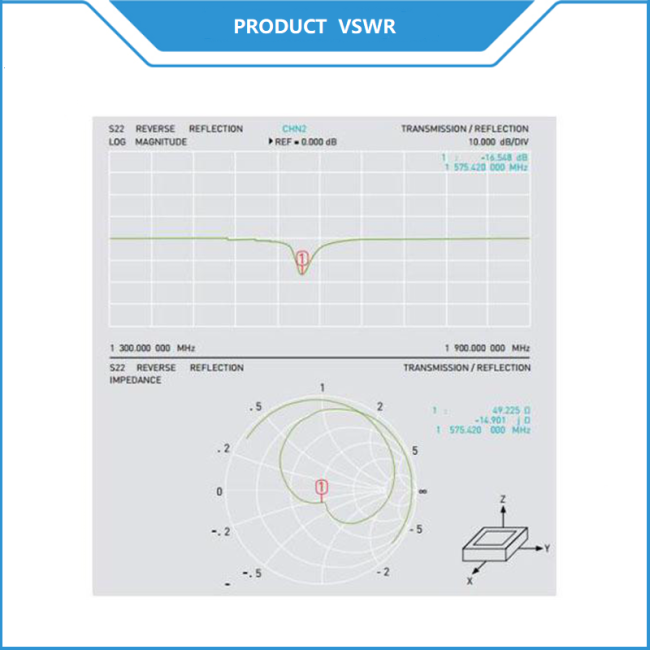

6. VSWR

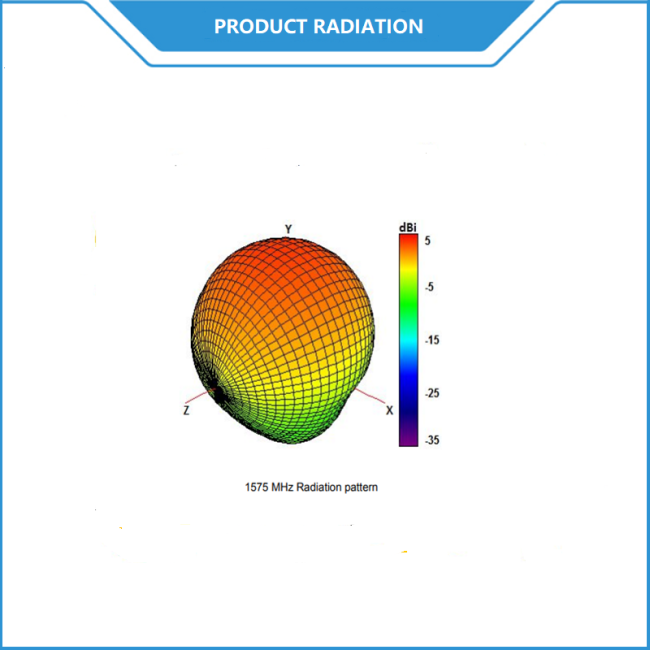

7. Radiation Pattern On 1575.42MHz
