External GPS MIMO Antenna 4G LTE 2 Combination Screw Mount Puck Antenna
1. Product Name:
External GPS / 4G LTE (2) Combination Screw Mount Puck Antenna
2. Description
This multi-band GPS antenna provides omnidirectional coverage of 4G LTE frequencies plus GPS/GLONASS tracking support. The antenna also provides Bluetooth/Wi-Fi connectivity for wireless hotspot applications and is ideal for mobile or fixed installations requiring voice and data support. Built-in GNSS tracking helps improve operational dispatch and schedule maintenance efficiencies, and the antenna’s very low-profile design minimizes its exposure to theft or vandalism.
3. Introduction
--3.1 Applications:
GPS systems
Wireless LANs
Automotives
Vehicle
--3.2 Features:
Low profile housing
Multi-band frequency coverage and GNSS support for the vehicle
Adhesive VHB tape layer support permanent installation and provides protection to the surface
4. Specs
Electrical Properties
| 1.1 | Frequency | 1575.42 / 700-2700 MHz |
| 1.2 | Gain (peak) | 28 / 3 dBi |
| 1.3 | V.S.W.R | 2 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | RHCP / Linear |
| 1.7 | Power Handling | 1W |
Mechanical Properties
| 2.1 | Cable | RG-174 Coaxial Cable |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | M12 Screw Mount |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug / FAKRA |

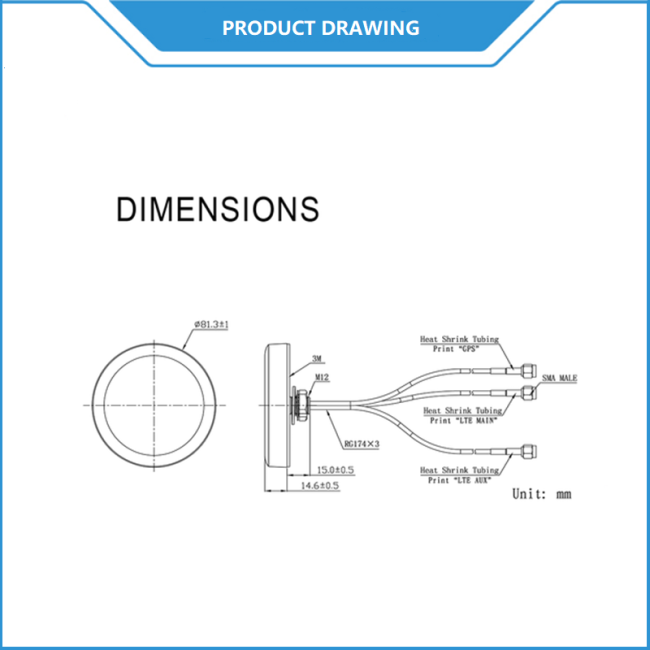

5. Antenna Drawing
6. VSWR

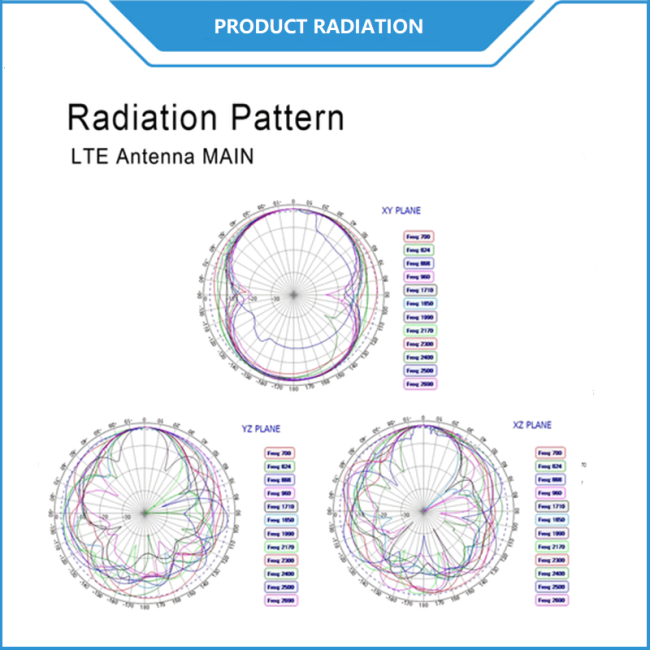

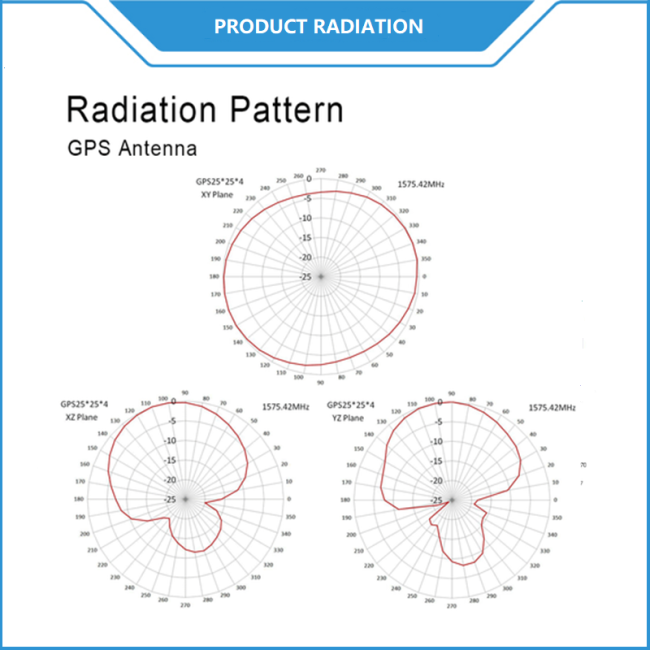

7. Radiation Pattern
