Surface Mount WIFI Bluetooth Antenna External Straight SMA Male 2.4GHz Miniature Connector

Price Negotiable

Price: USD$ 0.3 / PCS - USD$ 0.35 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

1. Product Name:

External Straight SMA Male 2.4GHz Miniature Connector Mount WIFI Antenna

2. Description

--2.1 Applications:

WLAN

Wireless Transmission Module

Zigbee

Bluetooth

--2.2 Features:

0dBi Gain

Straight SMA Male Connector

TPE Housing

Length 30mm

RoHS Compliant

3. Introduction

Omni-directional antennas provide a uniform 360° radiation pattern. The omni-directional pattern is suitable for point-to-multipoint broadcasting in all directions. This antenna is primarily used for WLAN applications. However, it can also be used for a variety of other applications within the specified frequency range. When used as an access point, the antenna is ideally located at the center of the coverage area.

4. Specs

Electrical Properties

1.1	Frequency	2.4 GHz ~ 2.5 GHz
1.2	Gain (peak)	0 dBi

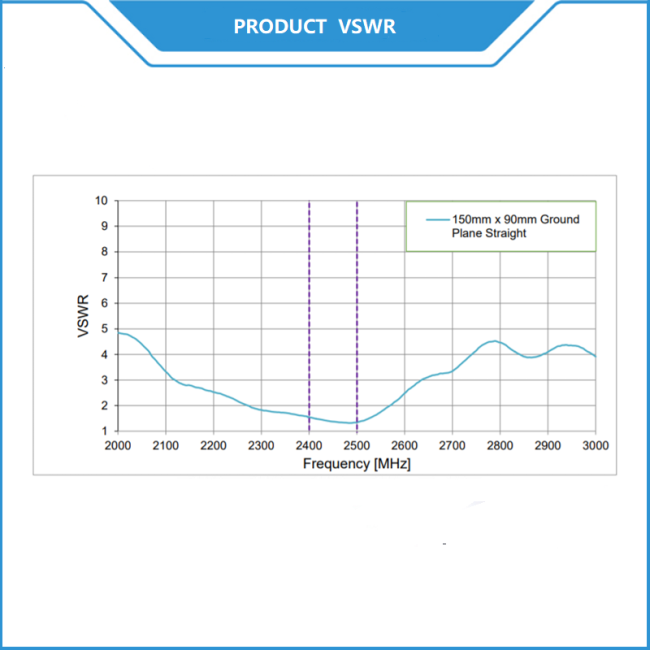

1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum

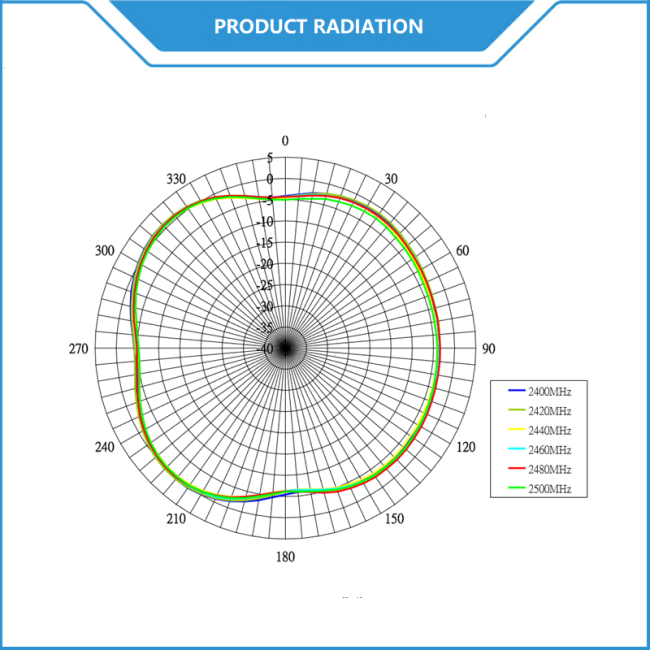

1.5	Radiation	Omni-Directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	1W

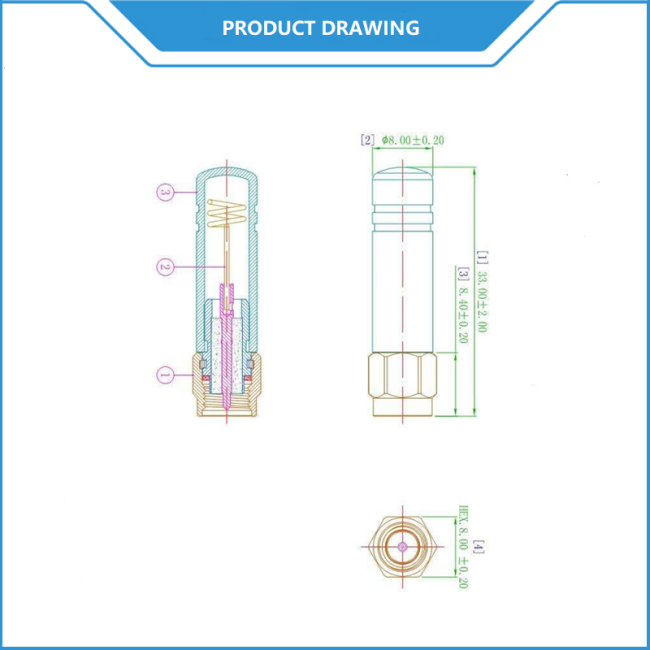

Mechanical Properties

2.1	Cable
2.2	Antenna Cover	TPE
2.3	Antenna Base	Brass
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug
