Outdoor WIFI Bluetooth Antenna Omnidirectional External Wireless LAN 2.4GHz Stub

Price Negotiable

Price: USD$ 0.3 / PCS - USD$ 0.35 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

1. Product Name:

External Wireless LAN Omni Directional 2.4GHz Stub Antenna

2. Description

--2.1 Applications:

WIFI

ISM Applications

Portable Devices

Set Top Boxes

Network Devices

--2.2 Features:

Waterproof

2400-2483MHz

0dBi Gain

VSWR < 2.0

1W Max Input Power

3. Introduction

This is a ¼ wave, omni-directional stub antennas tuned to a centre frequency of 2.4GHz and with a gain of 0dBi. They are supplied with choices of RF connectors ensuring compatibility with many of ISM band radio modules and equipments working on the 802.11 & 15 frequency range. These include technologies such as ZigBee, WLAN, Bluetooth and 6LowPan

4. Specs

Electrical Properties

1.1	Frequency	2.4 GHz ~ 2.5 GHz
1.2	Gain (peak)	0 dBi
1.3	V.S.W.R	2 MAX
1.4	Return Loss	-10dB Maximum

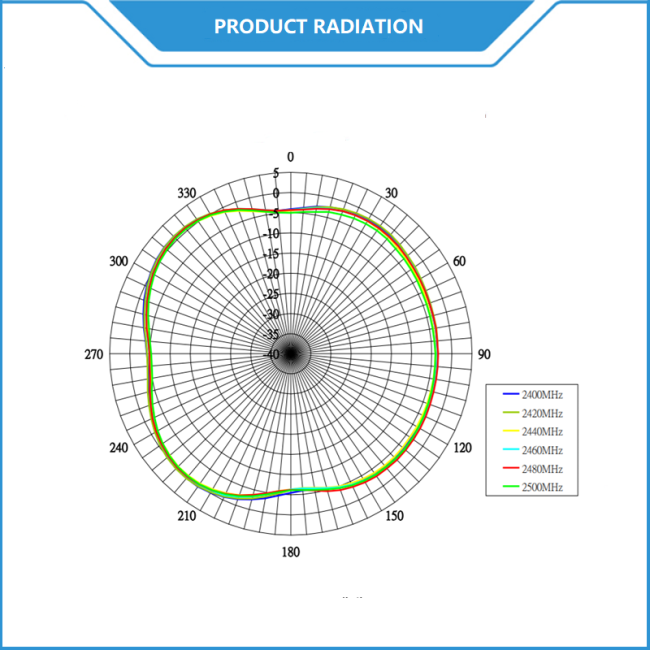

1.5	Radiation	Omni-Directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	1W

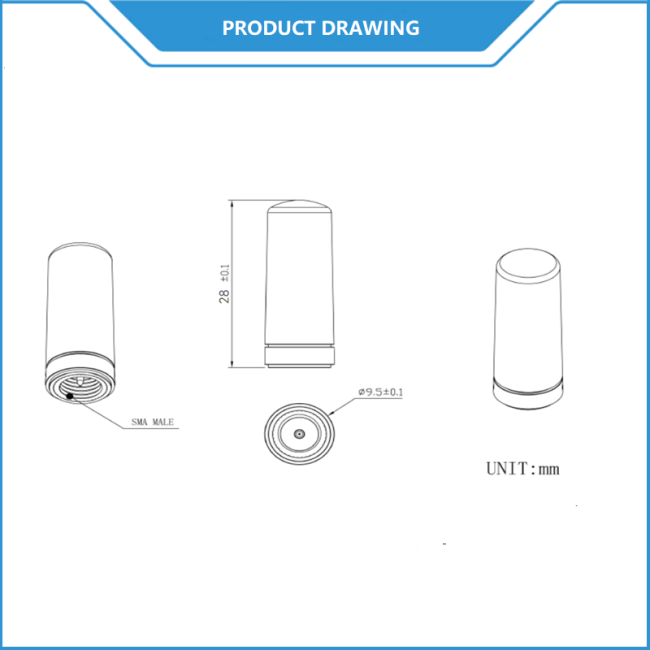

Mechanical Properties

2.1	Cable
2.2	Antenna Cover	TPE
2.3	Antenna Base	Brass
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug
