External 2.4GHz WIFI Bluetooth Antenna Miniature Screw Mount Dual Band Monopole Antenna
1. Product Name:
External 2.4GHz Miniature Screw Mount Monopole Antenna
2. Description
--2.1 Applications:
WLAN (Wireless Module on 2.4GHz)
Zigbee and Bluetooth
ISM Band on 2.4G
DSRC on 2.4G
Public Wireless Hotspots
--2.2 Features:
SMA Male Right Angle Connector
0dBi Peak Gain
30 mm in Height and 17mm in Length
RoHS Compliant
3. Introduction
This 2.4GHz Monopole SMA(M)R/A mount antenna is ideal for 2.4GHz wireless applications such as Bluetooth and Wireless LAN.
4. Specs
Electrical Properties
| 1.1 | Frequency | 2.4 GHz ~ 2.5 GHz |
| 1.2 | Gain (peak) | 0 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 1W |
Mechanical Properties
| 2.1 | Cable | |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | Brass |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | RA-SMA Plug |

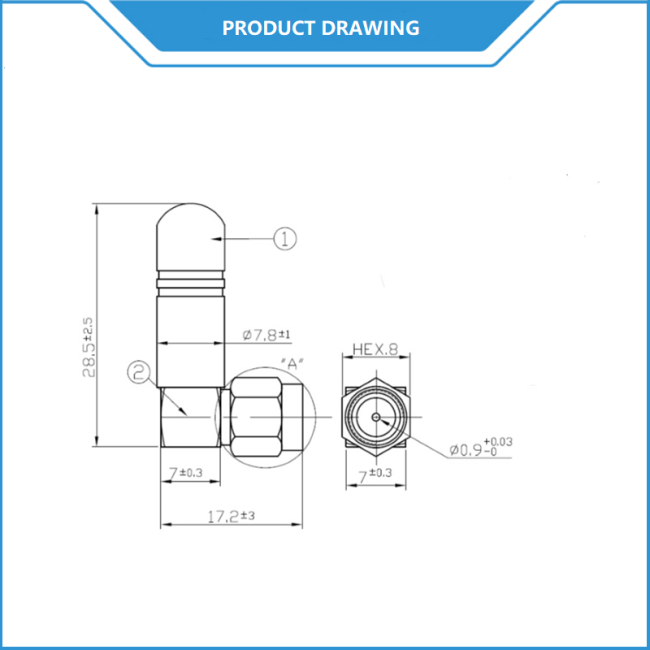

5. Antenna Drawing

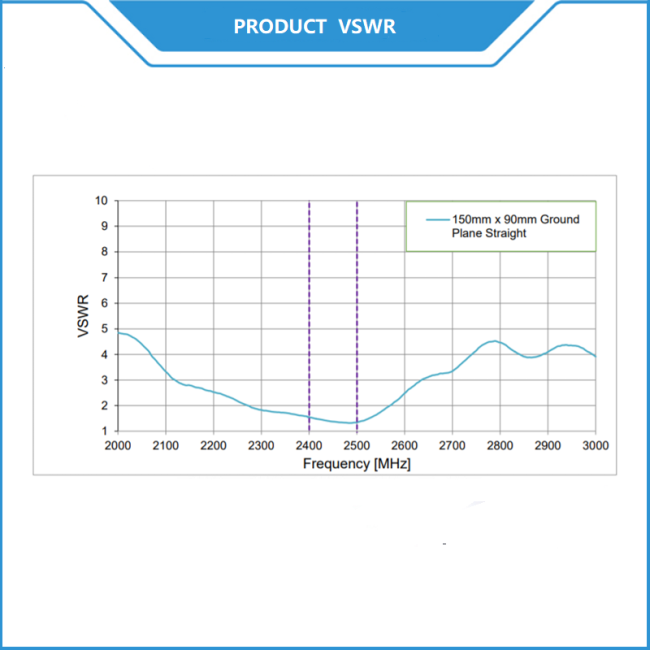

6. VSWR

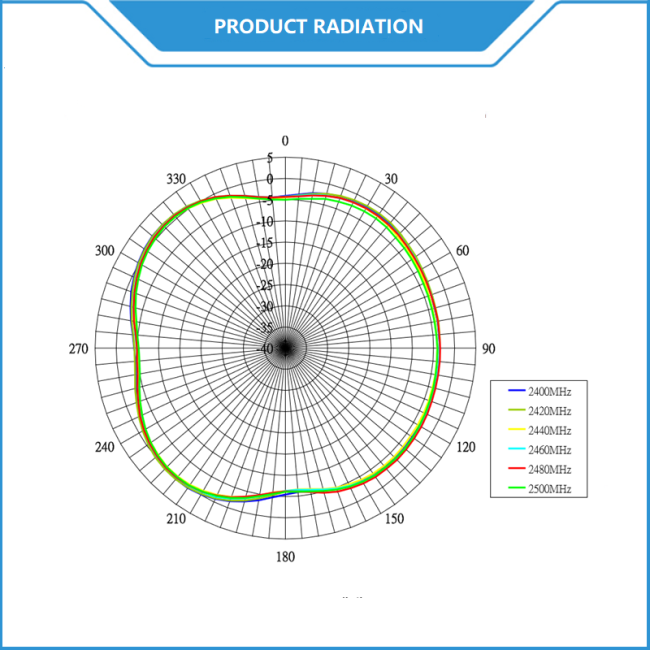

7. Radiation Pattern
