Dual Band ISM WIFI Bluetooth Antenna External Waterproof 2.4 5.8GHz

Price Negotiable

Price: USD$ 0.5 / PCS - USD$ 0.55 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

1. Product Name

External Waterproof 2.4/5.8GHz Dual Band WiFi / ISM Antenna

2. Description

--2.1 Applications:

2.4G or 5.8G ISM Band

Bluetooth

Wireless LAN Networks

Wireless Modems or Routers

Smart Home

Wireless Videos

--2.2 Features:

2.4G/5.8G Dual Band Operation

IP65 Waterproof

2 dBi High Gain

SMA Male Connector

RoHS Compliant

3. Introduction

This dual-band 2.4/5.8GHz SMA(M) mount dipole antenna is designed for superior performance and reliability. With an omnidirectional radiation pattern and excellent efficiency and gain on both 2.4 GHz and 5.8 GHz bands.

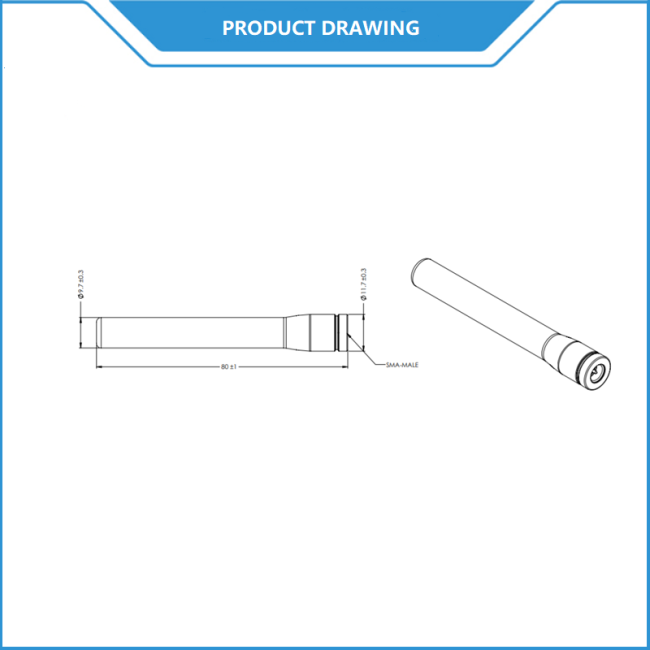

At 80mm in height, it is a great smaller form factor solution for Bluetooth and Wireless LAN networks. The IP65 rated enclosure makes it suitable for both indoor and outdoor applications

4. Specs

Electrical Properties

1.1	Frequency	2.4-2.5GHz / 5.15-5.85GHz
1.2	Gain (peak)	2 dBi

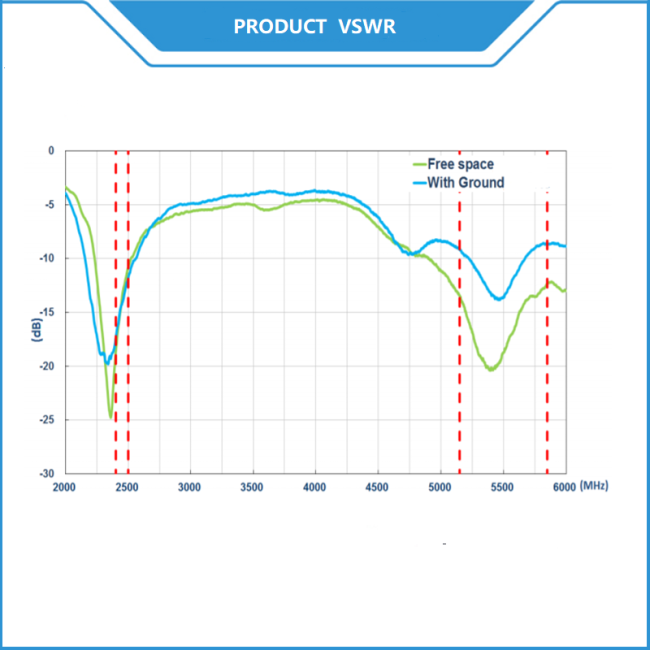

1.3	V.S.W.R	2 MAX
1.4	Return Loss	-10dB Maximum

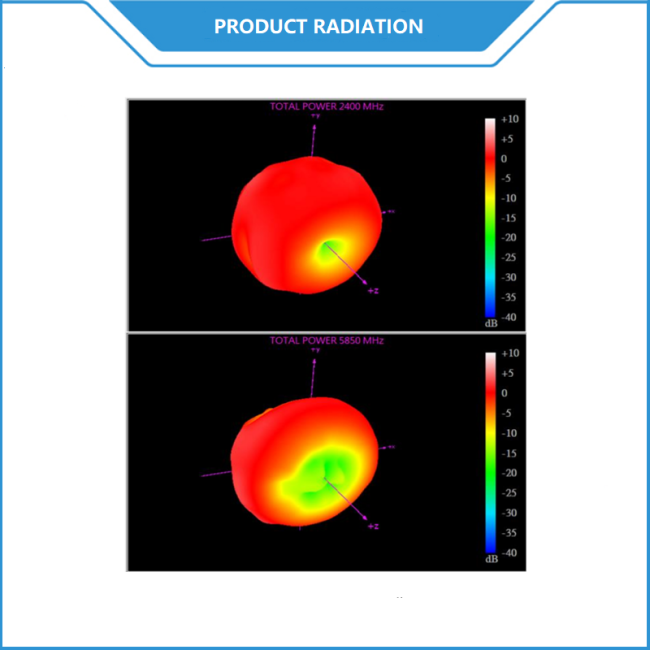

1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	2W

Mechanical Properties

2.1	Cable	RG178
2.2	Antenna Cover	TPE
2.3	Antenna Base	Cu
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug
