Omni Directional Dual Band WIFI Antenna Outdoor Waterproof 2.4G 5G
1. Product Name
Outdoor Waterproof 2.4G/5G Omni Directional Dual Band WIFI Antenna
2. Description
--2.1 Applications:
2.4G / 5G IEEE802.11a/b/g Applications
5.8GHz UNII and ISM Applications
2.4GHz Wireless Devices
Wireless Video Systems
Point to Multipoints Applications
Wireless APs
--2.2 Features:
High Gain 6dBi
High Performance
PC Randome
Under All Weather Operation
N Male Connector
3. Introduction
This is a professional high gain dual band omnidirectional base station Wi-Fi antenna designed and optimized for the 2.4 and 5.8GHz frequency. This antenna is ideally suited for multipoint applications where long range and wide coverage is desired.
4. Specs
Electrical Properties
| 1.1 | Frequency | 2400-2500MHz / 5150-5850MHz |
| 1.2 | Gain (peak) | 6 dBi |
| 1.3 | V.S.W.R | 2 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 10 W |
Mechanical Properties
| 2.1 | Cable | RG402 |
| 2.2 | Antenna Cover | PC |
| 2.3 | Antenna Base | N Male |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Grey |
| 2.7 | Connector | N Male |

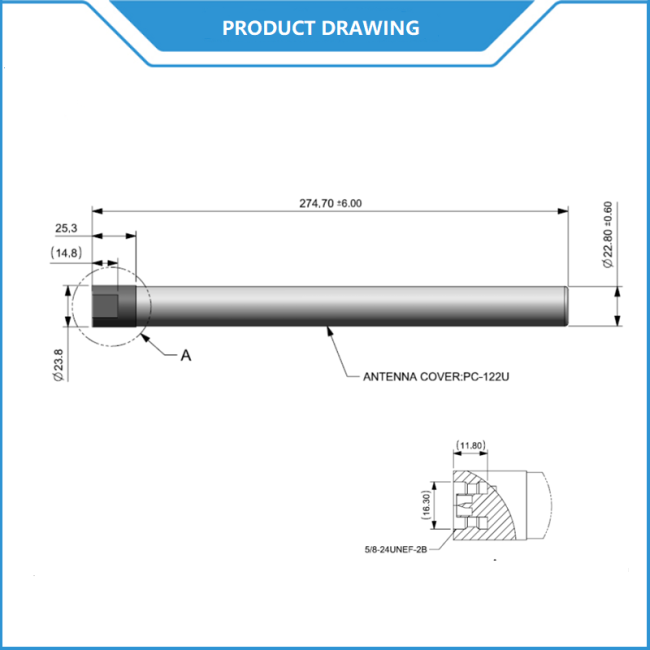

5. Antenna Drawing

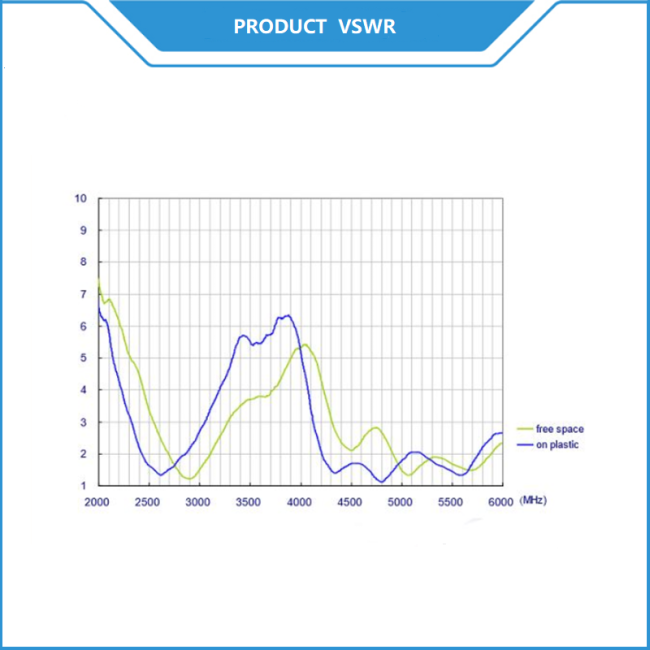

6. VSWR
7. Radiation Pattern
