Mount 2.4GHz WIFI Stick Antenna External Straight RP SMA Male Connector
Price:
USD$ 1 / PCS - USD$ 1.2 / PCS
MOQ:
100 PCS
Delivery Time:
8-10 days
Brand:
MS
Product Description
1. Product Name
External Straight RP SMA Male Connector Mount 2.4GHz WIFI Stick Antenna
2. Description
--2.1 Applications:
Zigbee 802.15 , ISM 2.4GHz
Bluetooth
Metering
Security
M2M Applications
--2.2 Features:
2dBi Gain
130mm in Height
IP65
RP SMA Male / SMA Male (optional)
3. Specs
Electrical Properties
| 1.1 | Frequency | 2.4 GHz ~ 2.5 GHz |
| 1.2 | Gain (peak) | 2 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 2W |
Mechanical Properties
| 2.1 | Cable | RG178 |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | CU |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | RP-SMA Plug / SMA Plug |

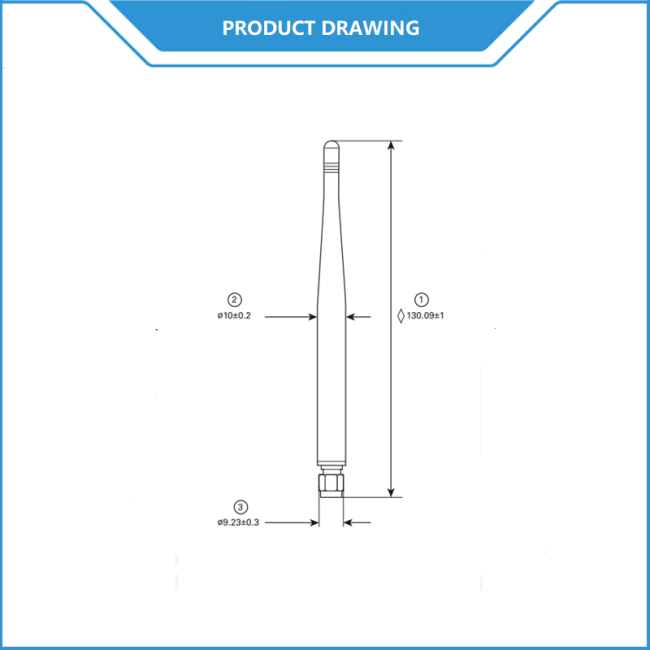

4. Antenna Drawing

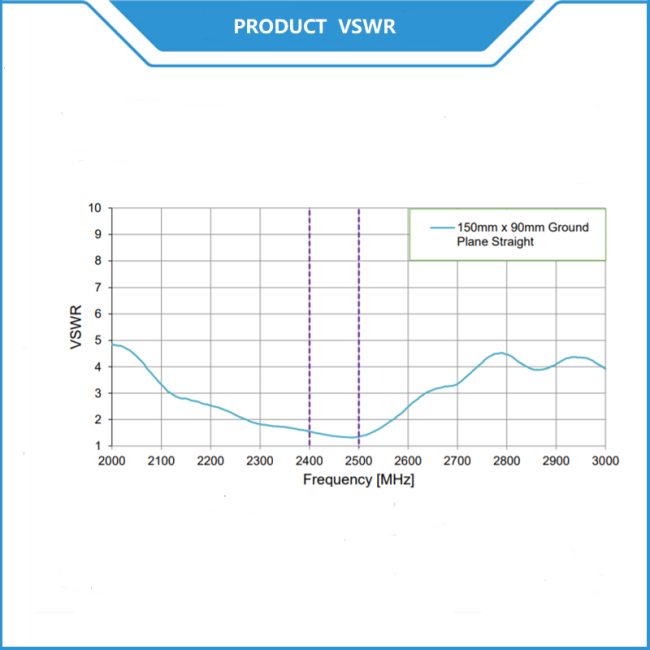

5. VSWR
6. Radiation Pattern
