Internal Compact Size 2dBi ISM Band 2.4GHz WIFI FPC Antenna

1. Product Name

     Internal Compact Size 2dBi ISM Band 2.4GHz WIFI FPC Antenna

2. Description

--2.1 Applications:

        ISM on 2.4GHz

           Bluetooth, Zigbee and BLE

           Wireless LANs

           Smart Home

           Metering

           Wireless Hotspots

--2.2 Features:

        Compact Size

           Low Profile

           2dBi Gain

           IPEX (U.FL)

3. Introduction

     This 2.4GHz FPC antenna is based on an efficiently tuned PCB element that is matched and embedded to work with a wide variety of RF modules operating on the 2.4GHz ISM band frequency. Popular in Bluetooth, Zigbee and WLAN embedded applications, the antenna allows users a longer working range than a standard on board chip antenna which is offered on many modules. Connected via an Ipex (UFL compatible) connector and 100mm cable the antenna PCB measures just 45 x 10mm ensuring a compact design which can be discreetly fitted in many of today’s products where space is at a premium.

4. Specs

Electrical Properties

Mechanical Properties

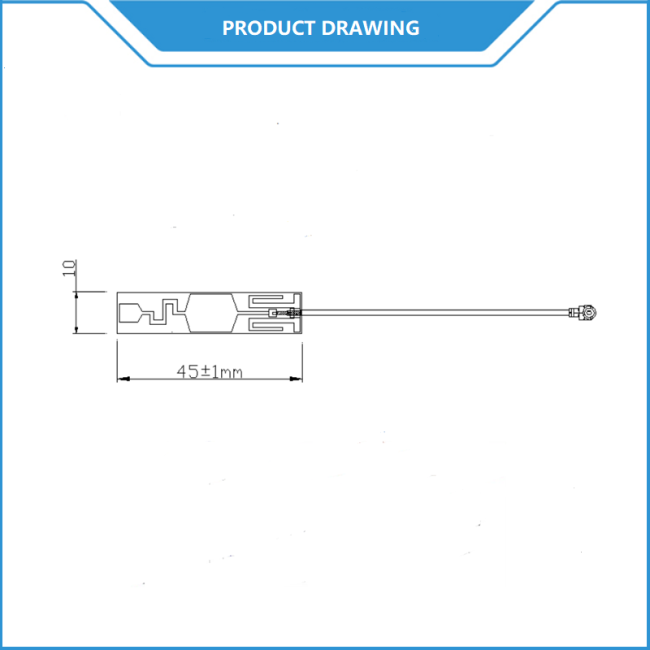

5. Antenna Drawing

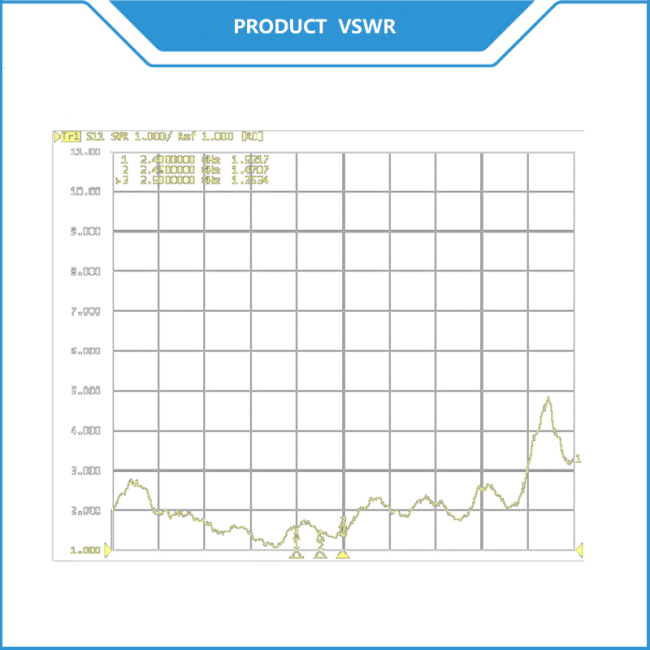

6. VSWR

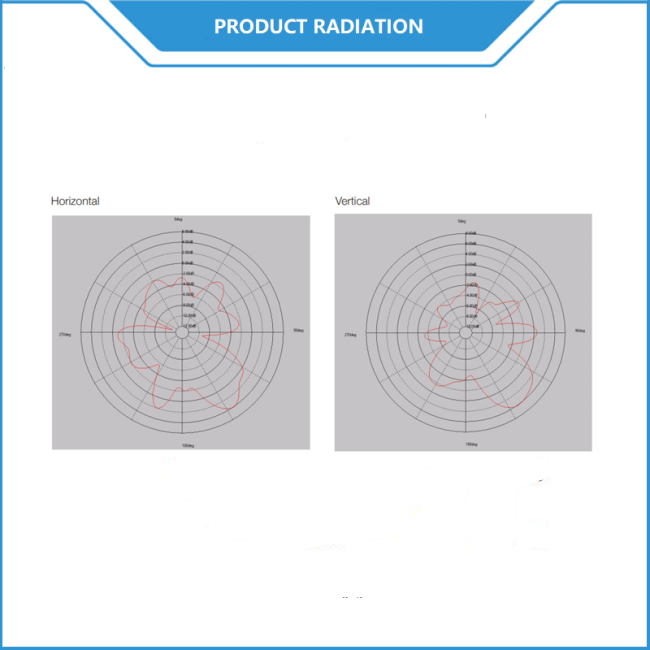

7. Radiation Pattern
