External 2.4/5.8GHz 3dBi Dipole SMA Plug Mount Antenna

1. Product Name

    External 2.4/5.8GHz 3dBi Dipole SMA Plug Mount Antenna

2. Description

--2.1 Applications:

         ISM Band on 2.4GHz or 5GHz

           WLAN Devices with WIFI(802.11a/b/g),Bluetooth and Zigbee

           In-Building Wireless Access Points (AP)

           Wireless Modems or Routers

           Hotspots

--2.2 Features:

        SMA Male or RP SMA Male Straight Connector

            Tilt and Swivel

            Hinged

            Omni Directional Radiation Pattern with  360˚ Coverage

            153mm In Length

            RoHS Compliant

3. Introduction

     This 2.4/5.8 GHz dipole SMA plug mount antenna is ideal for 2.4/4.9/5 GHz wireless applications such as Bluetooth and Wireless LAN. At 158mm in length omni-directional 4.3dBi peak gain across all bands ensures constant reception and transmission. The antenna structure is designed for robust handling and the housing is made with TPE giving superior environmental reliability and a quality finish. The antenna can be rotated 90 degrees on the base hinge for ease of placement. Connector mount is fully customized.

4. Specs

Electrical Properties

Mechanical Properties

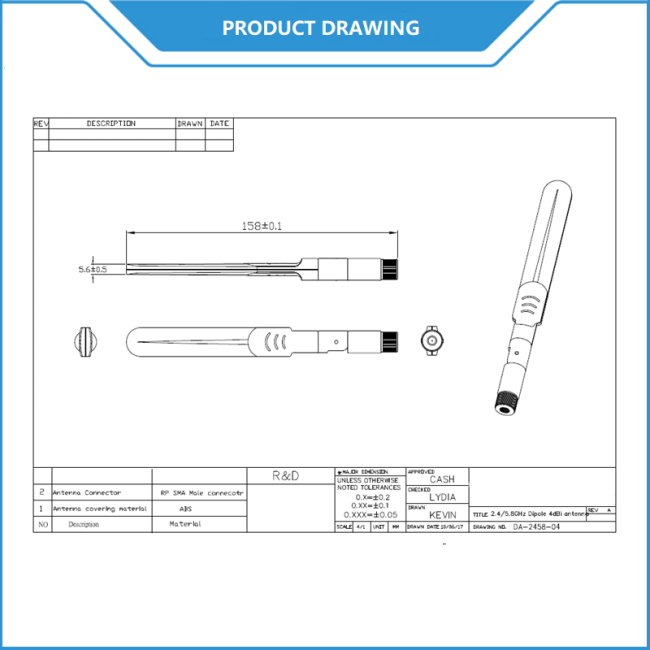

5. Antenna Drawing

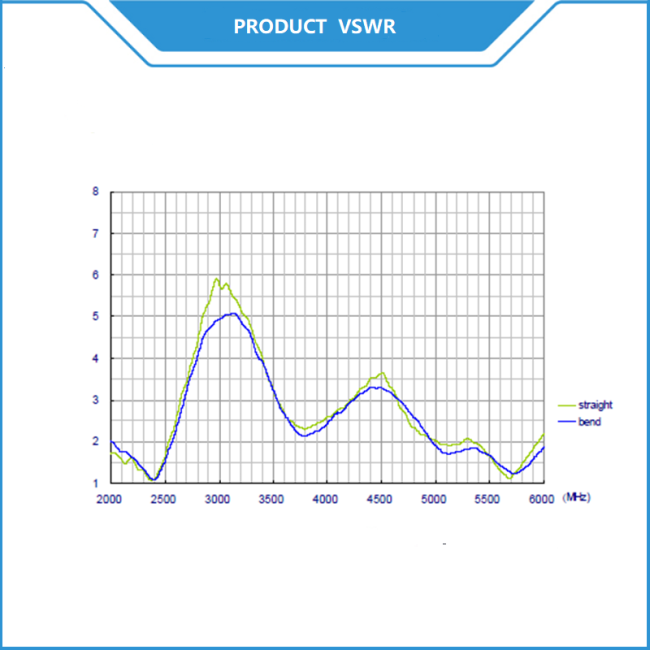

6. VSWR

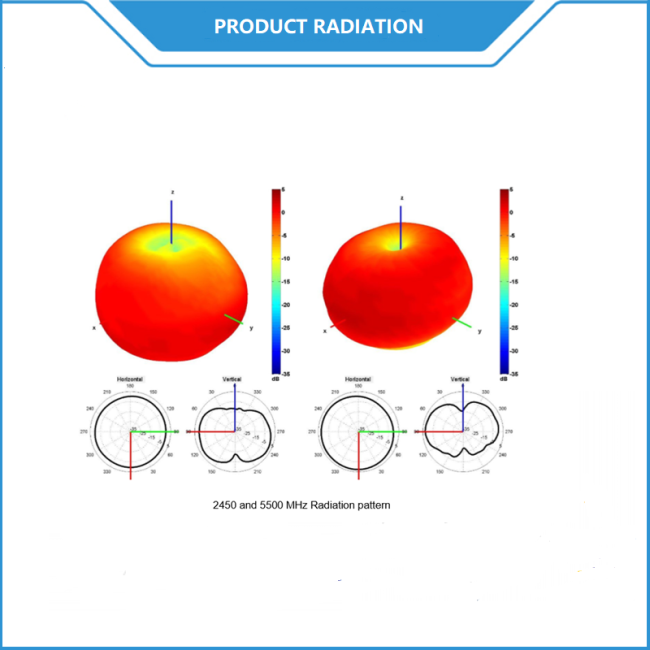

7. Radiation Pattern
