Internal Freedom WIFI Bluetooth Antenna 2.4GHz 5.8GHz Dual Band Dipole Antenna

Internal Freedom WIFI 2.4/5.8GHz Dual Band Dipole Balance Antenna

1. Product Name

    Internal Freedom WIFI 2.4/5.8GHz Dual Band Dipole Balance Antenna

2. Description

--2.1 Applications:

          For Telecommunications / Networks

           -WIFI Devices

           -Wireless LAN

           - IEEE 802.11b/g/n Devices

          For Industrial Applications

            -Machine to Machine Communication

            -Smartmeter

          For Consumer Electronics Applications

            -Cameras

            -Mobile Gaming Devices

            -Personal Navigation Devices

            -Wireless Internet TV and Audio Devices

          For Automotive Applications

            -Bluetooth Devices

            -Mobile Hotspots

--2.2 Features:

        Micro RG1.13 Coaxial Cable

           IPEX (U.FL) Connector

           100mm Coaxial Cable

            Adhesive Sticker

3. Introduction

      This is a Dual-Band WIFI antenna which has 2dBi high gain, and dual band transmission blanced antenna combines ground plane independence with high-radiation efficiency for better connectivity and faster wireless device processing.

4. Specs

Electrical Properties

Mechanical Properties

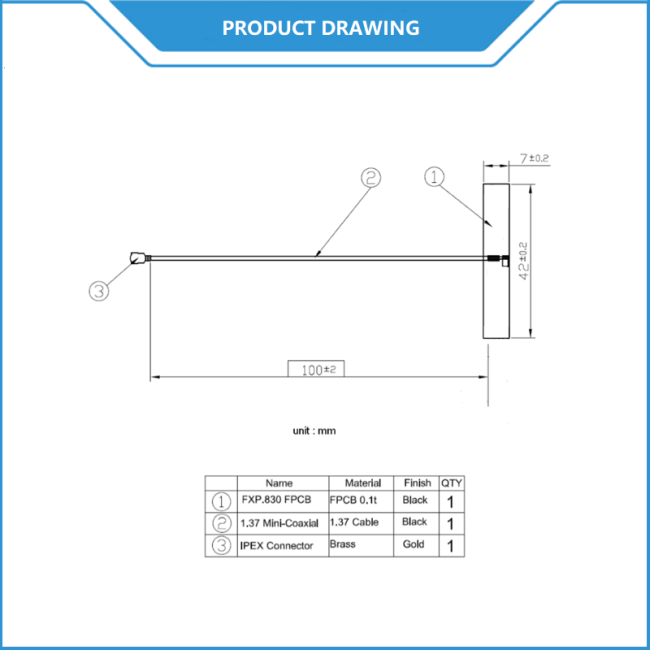

5. Antenna Drawing

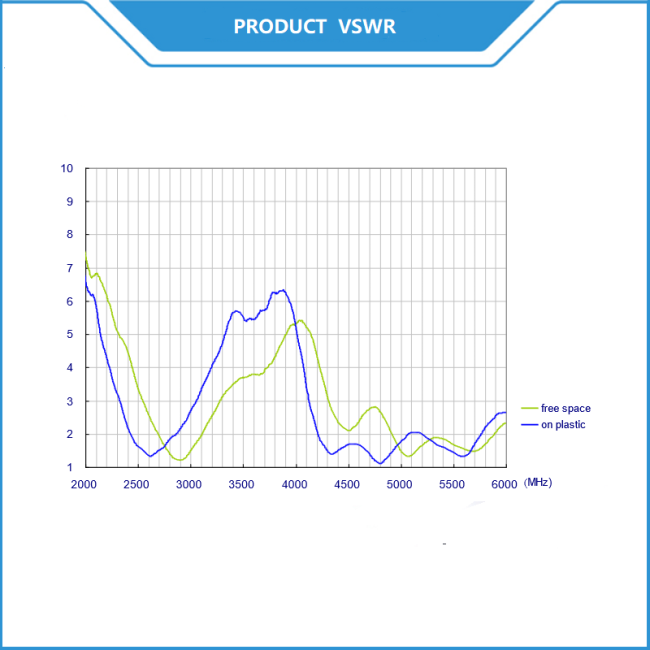

6. VSWR

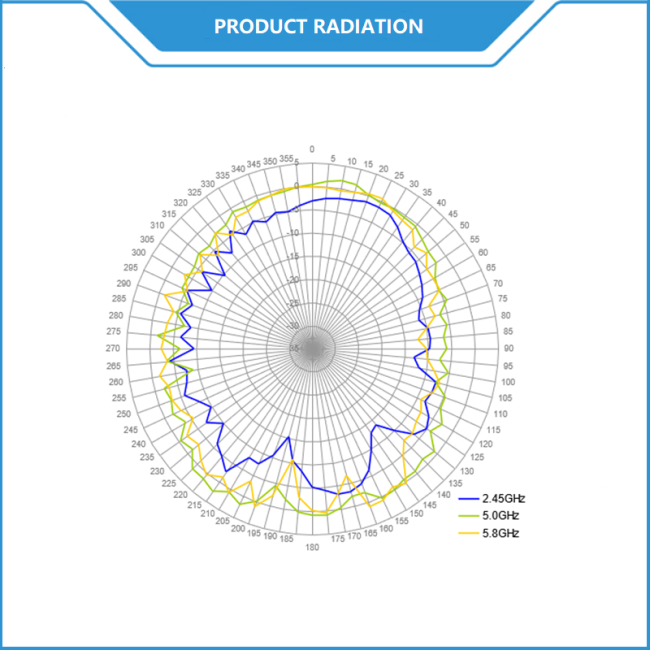

7. Radiation Pattern
