Interior Passive 3dBi High Gain Adhesive AM/FM/DAB Antenna
1. Product Name
Interior Passive 3dBi High Gain Adhesive AM/FM/DAB Antenna
2. Description
--2.1 Applications:
FM Units--88-108 MHz
DAB Units-- 163-240 MHz
DAB+ Units-- 1452-1492 MHz (3m Cable)
--2.2 Features:
DAB / DAB+ Antenna for Indoor Use
Compatible with most DAB / DAB+ Units in Car
Cable Length--3m
SMA / SMB / MCX (Optional)
3. Introduction
This universal DAB aerial is a quick and easy windscreen patch aerial to enable reception of DAB radio signals (for use with in car DAB radios and tuners such as Sony, Pioneer, JVC, and Kenwood etc.). This universal DAB antenna is designed for vehicle window mounting. The aerial sticks to the inside window glass surface . This DAB aerial is suitable for all type of car DAB radio and tuner and terminates in an SMB (right-angled push-on type connector), please ensure your radio or DAB tuner has this type of connector.
4. Specs
Electrical Properties
| 1.1 | Frequency | 88-108 / 163-240 MHz |
| 1.2 | Gain (peak) | 2 dBi |
| 1.3 | V.S.W.R | 2.5 MAX |
| 1.4 | Return Loss | -5dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 2 W |
Mechanical Properties
| 2.1 | Cable | RG174 Coaxial Cable |
| 2.2 | Antenna Cover | PC |
| 2.3 | Film Material | PET |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | MCX / SMA / SMB |

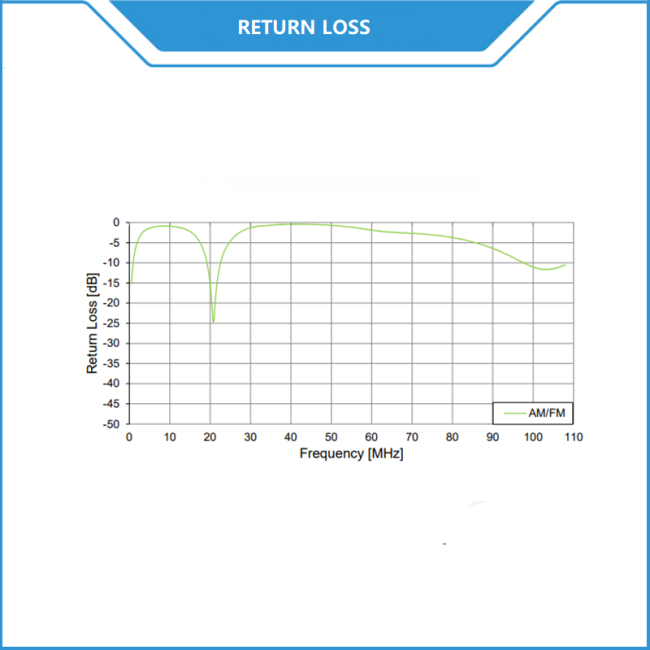

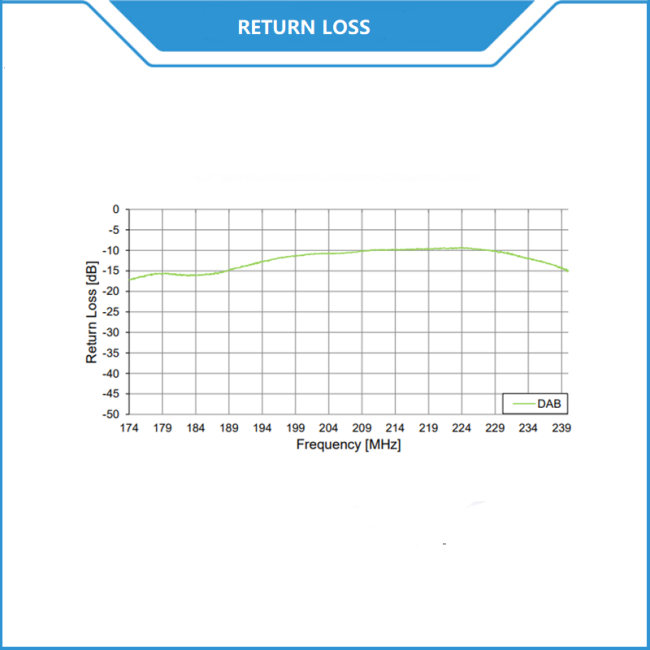

5. Return Loss
