External UAV Drone FPV Antenna 3dBi High Gain 5.8GHz Circular Polarized Antenna

Price Negotiable

Price: USD$ 5 / PCS - USD$ 5.5 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

External 3dBi High Gain 5.8GHz Circular Polarized UAV / Drone / FPV Antenna

1. Product Name

External 3dBi High Gain 5.8GHz Circular Polarized UAV / Drone / FPV Antenna

2. Description

--2.1 Applications:

FPV (UAV) Racing

5.8G Wireless LANs

5.8G WIFI System

--2.2 Features:

3dBi High Gain

SMA Male / RP SMA Male Connector

High Performance

Designed for UAV / Drone Applications

Connector Mount

RoHS Compliant

3. Introduction

This is a high performance 5.8G antenna which is ideal for FPV/UAV or 5.8G wireless LANs. It has 2dBi high gain, which is also ideal for operating on the 5.8GHz band for Wi-Fi applications

This UAV / Drone antenna with high efficiency, nearly 70%, provide itself to meet high demands of drone applications, especially high definition FPV video streams.

4. Specs

Electrical Properties

1.1	Frequency	5.75GHz - 5.85GHz
1.2	Gain (peak)	3 dBi

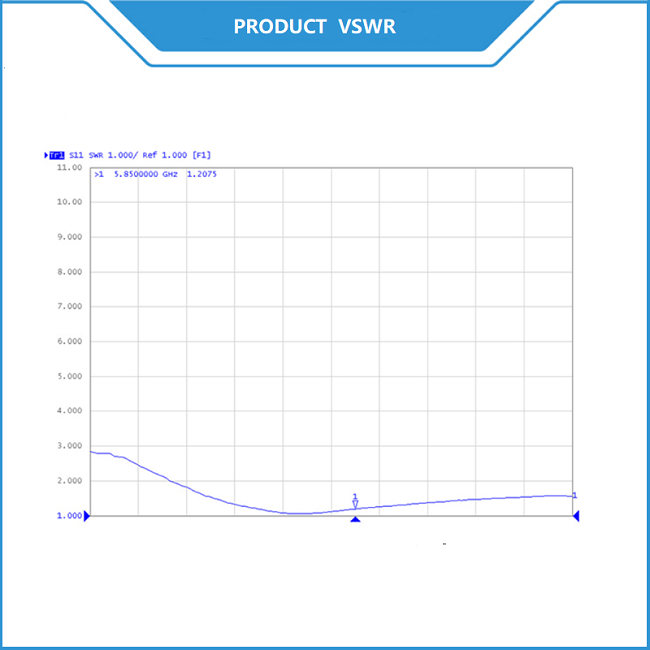

1.3	V.S.W.R	< 1.5 MAX
1.4	Return Loss	-10dB Maximum

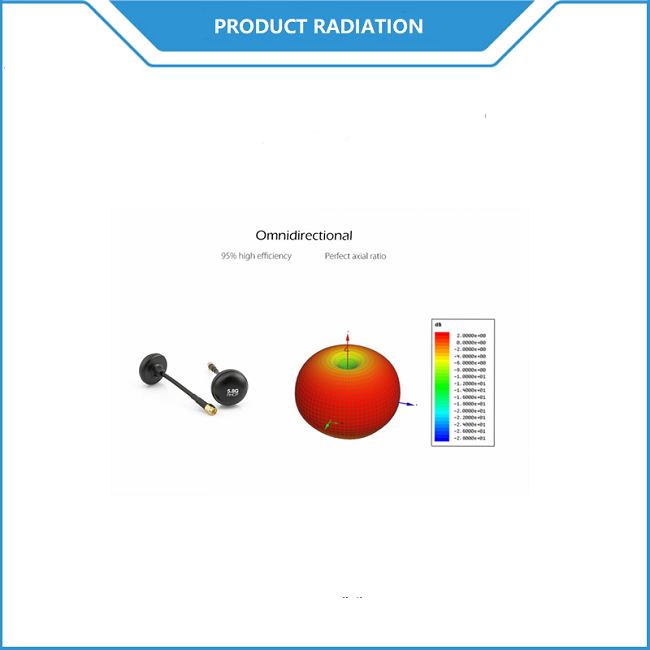

1.5	Radiation	Omni-directional
1.6	Polarization	RHCP
1.7	Power Handling	2 W

Mechanical Properties

2.1	Cable	RG142
2.2	Antenna Cover	ABS
2.3	Antenna Base	ABS
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug / RP SMA Plug
