External Tri Band Antenna GSM UMTS 3dBi Omnidirectional Wifi Antenna Glass Mount Patch

Price Negotiable

Price: USD$ 0.8 / PCS - USD$ 1 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

External Tri-Band GSM/UMTS 3dBi Omni-Directional Glass Mount Patch Antenna

1. Product Name

External Tri-Band GSM/UMTS 3dBi Omni-Directional Glass Mount Patch Antenna

2. Description

--2.1 Applications:

PCS Cellular Radio Applications

UMTS,GSM,G3, ISM, WLAN, RFID Applications

Mobile Applications

Low Profile Mounting -Stick on Foam Tape

Remoting Antenna Location for Better Reception

--2.2 Features:

Superior Performance

Compact Size

Used with 900/1800/1900/2100MHz Systems

Mounting with 3m RG174 Coaxial Cable

Indoor Use

RoHS Compliant

3. Introduction

This compact UMTS/WLAN tri-band 2dBi omni directional antena provides broad coverage and is designed to operate in 824-960MHz, 1710-2170MHz bands. This tri-band design eliminates the need to purchase different antennas for each frequency. In the 824-960MHz bands, it is ideally suited for GSM,ISM, WLAN, RFID appliations. In the 1710-2170MHz bands, it can be used with UMTS applications and personal communication services (PCS) cellular radio wireless applications.

4. Specs

Electrical Properties

1.1	Frequency	900/1800/2100 MHz
1.2	Gain (peak)	3 dBi

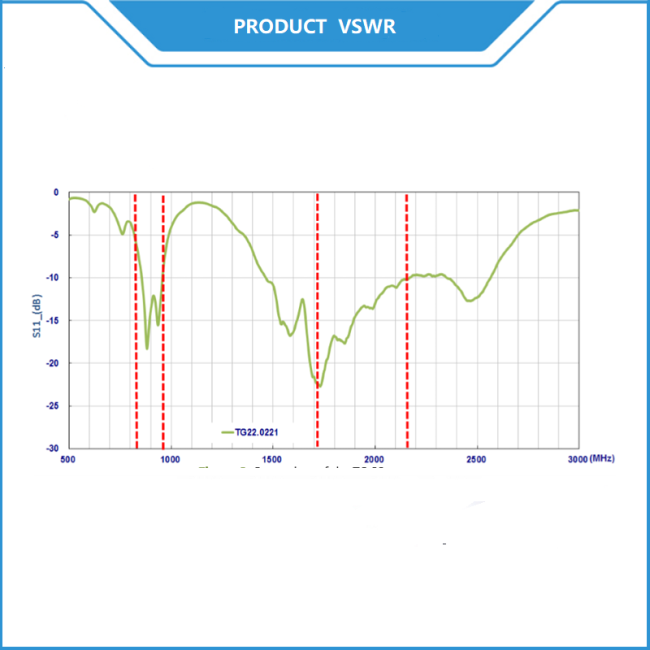

1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum

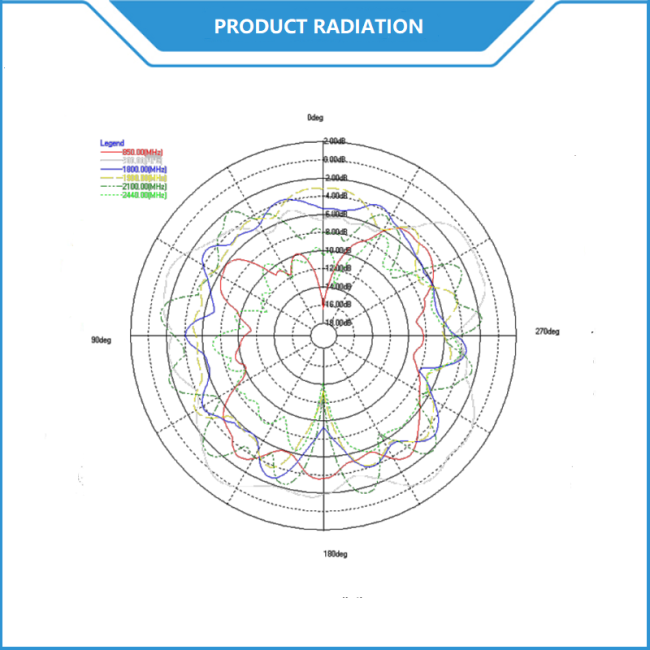

1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5 W

Mechanical Properties

2.1	Cable	RG 174
2.2	Antenna Cover	TPE
2.3	Antenna Base	Sticker
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug / FME Female / BNC
