GSM 2G 3G Antenna External 3dBi Adhesive Quad Band Flat Patch Antenna
External 3dBi Adhesive Flat Blade Quad Band GSM/3G Antenna
1. Product Name
External 3dBi Adhesive Flat Blade Quad Band GSM/3G Antenna
2. Description
--2.1 Applications:
GSM,ISM,WLAN,RFID Applications
UMTS / PCS Cellular Applications
Mobile Applications
Remote Systems for Better Reception
--2.2 Features:
Quad Band GSM Cellular and 2.1GHz
Glass Mount
3dBi Gain
Dimensions: 115*22 mm
3dBi Gain
3. Introduction
This GSM and 3G adhesive mount antenna are based on an efficiently tuned PCB element which is matched with a wide variety of RF and M2M modules, operating on cellular and 3G frequencies. It is designed for most telemetry applications.
It is a high performance antenna at 3dBi gain on GSM band.
4. Specs
Electrical Properties
| 1.1 | Frequency | 850/900/1800/1900/2100 MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 5 W |
Mechanical Properties
| 2.1 | Cable | G174 |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | 3M Sticker |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug / FME Female / BNC / MMCX |
5. Antenna Drawing

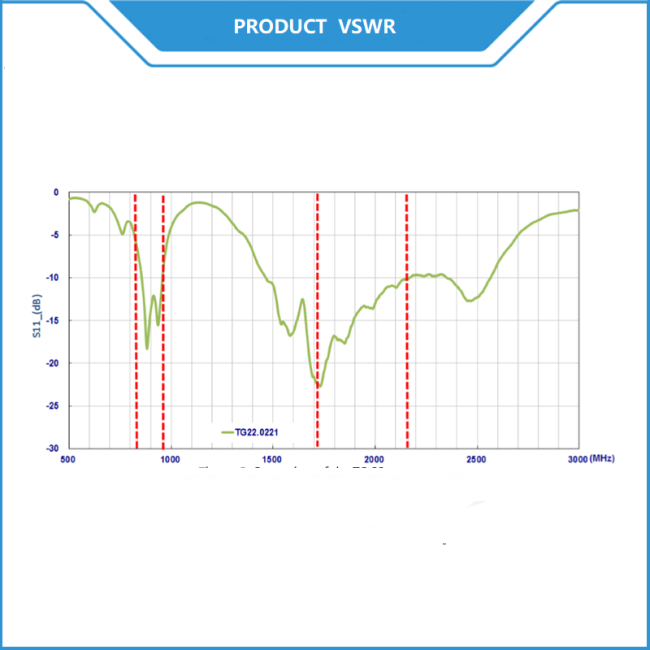

6. VSWR
7. Radiation Pattern
