Outdoor Omni Dual Band Antenna WIFI 2.4G 5.8G Fiberglass Antenna
Outdoor Omni Dual Band WIFI 2.4G/5.8G Fiberglass Antenna
1. Product Name
Outdoor Omni Dual Band WIFI 2.4G/5.8G Fiberglass Antenna
2. Description
--2.1 Appliations:
Access Points
Base Stations
Public Safety
Repeaters
Small Cell
--2.2 Features:
2.4-2.5 / 5.15-5.85 GHz
Omni-Direction with 3.5/6 dBi
IP67 Rated
Connector N-Male
3. Introduction
This omni dual band WIFI antenna is designed for harsh outdoor environments where WIFI connector is needed in either the 2.4GHz or 5GHz bands. This robust antenna provides excellent mechanical stability and IP67 protection to ensure a long, reliable, maintenance-free life.
4. Specs
Electrical Properties
| 1.1 | Frequency | 2.4 GHz ~ 2.5 GHz / 5.15 GHz ~ 5.85 GHz |
| 1.2 | Gain (peak) | 6 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 20 W |
Mechanical Properties
| 2.1 | Cable | RG142 |
| 2.2 | Antenna Cover | Fiberglass |
| 2.3 | Antenna Base | Cu |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | N Male |

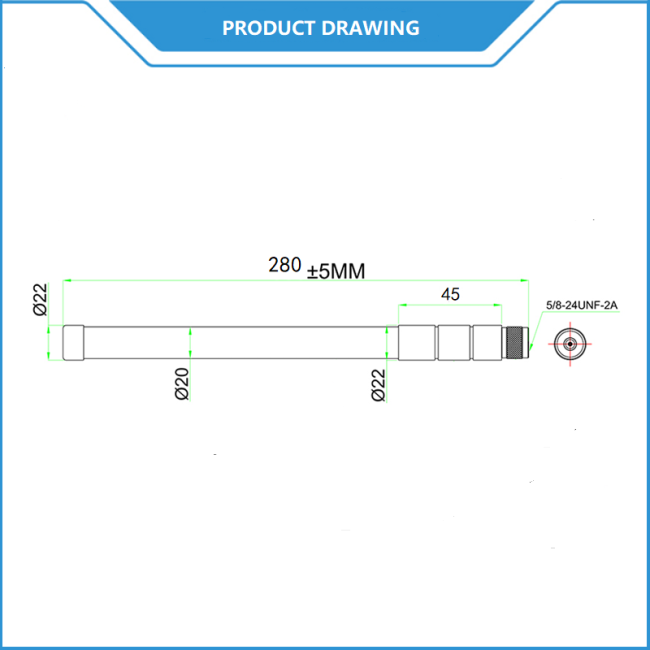

5. Antenna Drawing

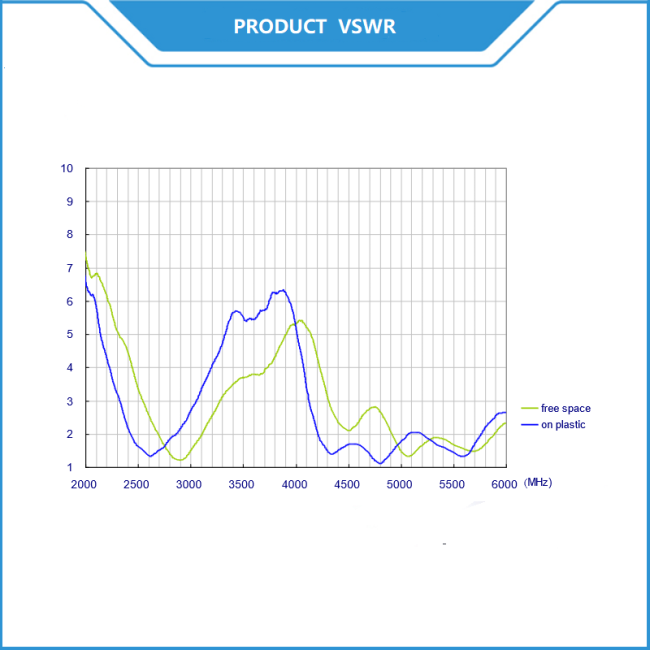

6. VSWR

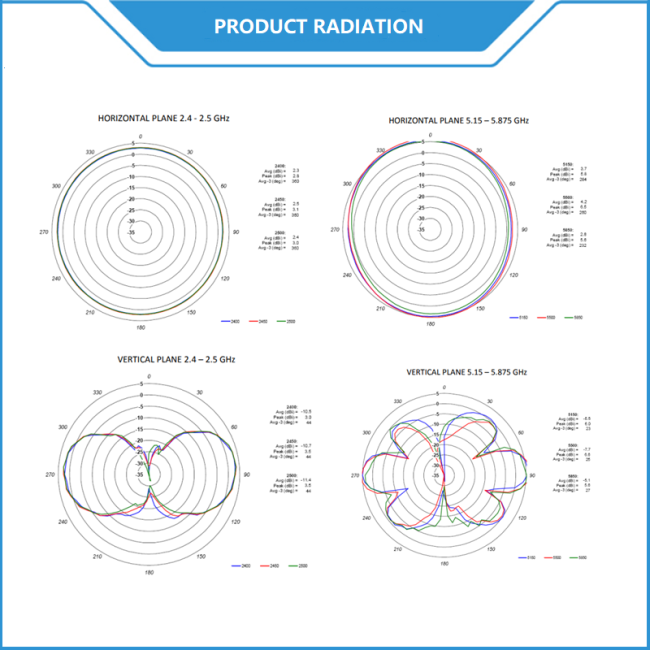

7. Radiation Pattern
