External Quad Band GSM(GPRS) 3G Magnetic Mount Antenna
1. Product Name
External Quad Band GSM(GPRS) 3G Magnetic Mount Antenna
2. Description
--2.1 Applications:
GSM/GPRS/3G
General 3G Systems
M2M Applications
--2.2 Features:
Quad Band GSM & 3G
Magnetic Base
5dBi High Gain
Omni-Directional
Connetor and Cable Optional
3. Introduction
This is a range of 1/2 wave omni-directional antenna that operates on Quad band GSM, ISM and 3G frequencies, also provides a quite high gain of 5dBi.
4. Specs
Electrical Properties
| 1.1 | Frequency | 824-960/1710-2170 MHz |
| 1.2 | Gain (peak) | 5 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 5 W |
Mechanical Properties
| 2.1 | Cable | RG174 / RG58 |
| 2.2 | Antenna Stick | Iron |
| 2.3 | Antenna Base | ABS |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA / FME or Customized |

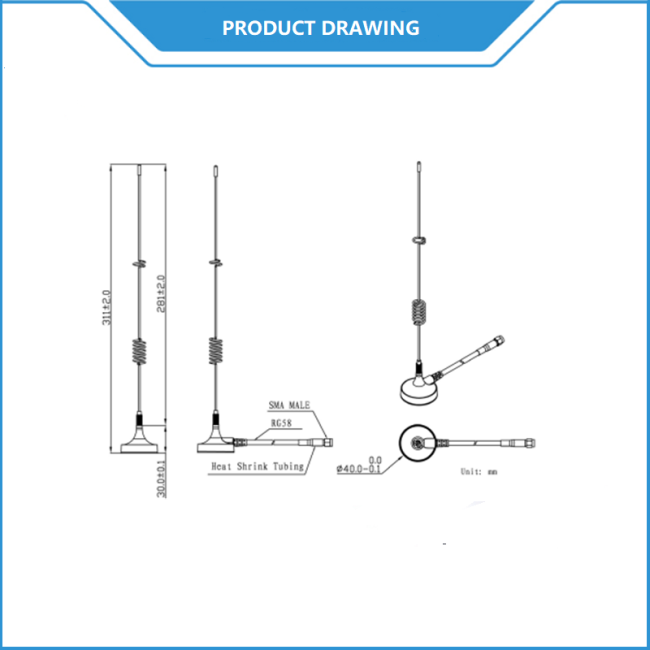

5. Antenna Drawing

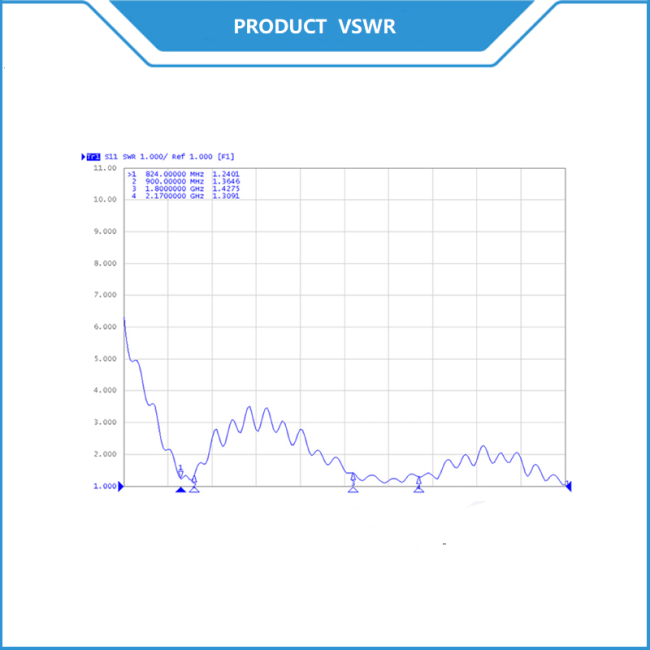

6. VSWR

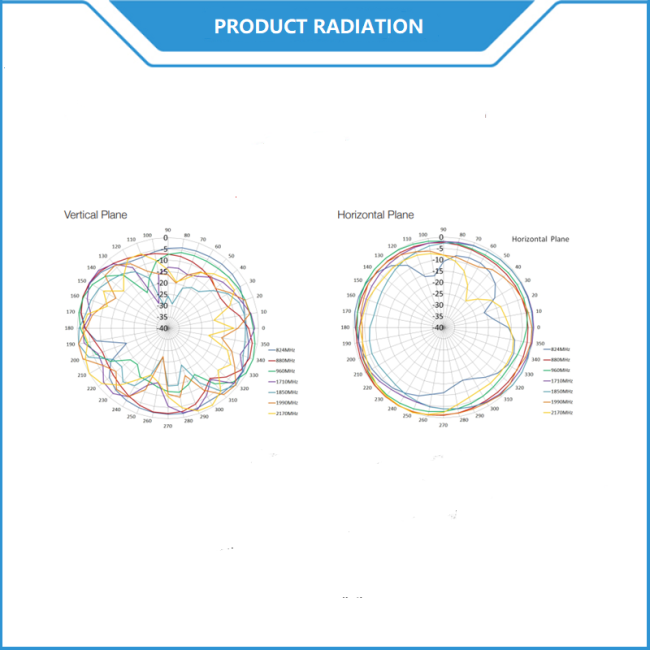

7. Radiation Pattern
