ISM Band Terminal Omnidirectional 433MHz External Antenna

Price Negotiable

Price: USD$ 0.3 / PCS - USD$ 0.35 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

External 433MHz ISM Band Omni Directional Terminal Antenna

1. Product Name

External 433MHz ISM Band Omni Directional Terminal Antenna

2. Description

--2.1 Applications

General Low Power Radio

M2M Applications

RFID

Telemetry

--2.2 Features

1/4 Wave Monopole Antenna

Omni Directional

RA SMA Male Connector

ABS/TPE Housing

0dBi Gain

3. Introduction

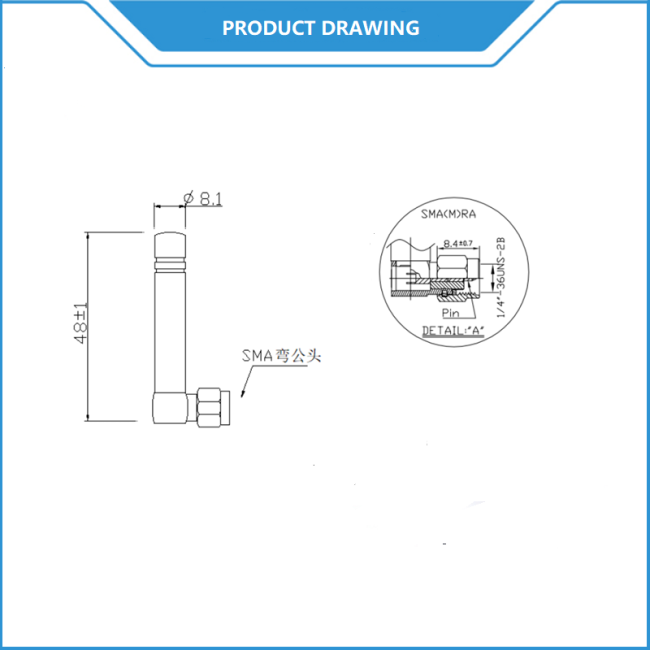

This is a high performance 433MHz omni-directional antennas. The terminal SMA R/A plug mount antenna is ideal for mobile small form factor applications. At only 49mm in length Omni-directional with a peak gain 0dBi ensures constant reception and transmission. The antenna structure is designed for robust handling and the housing is made with TPE giving reliable performance in tough environments

4. Specs

Electrical Properties

1.1	Frequency	430-435 MHz
1.2	Gain (peak)	0 dBi
1.3	V.S.W.R	1.8 MAX
1.4	Return Loss	-10dB Maximum
1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5 W

Mechanical Properties

2.1	Cable
2.2	Antenna Cover	TPE/ ABS
2.3	Antenna Base	Connector Mount
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	RA-SMA Plug
