External 4G LTE Ultra Wideband Omni-Directional Swivel Antenna
1. Product Name
External 4G LTE Ultra Wideband Omni-Directional Swivel Antenna
2. Description
--2.1 Applications
Infotainment systems - HD Video Transmission -Dash Cameras
Connected Cars
Fleet Management
Gateways
Routers
Public Transportation
Logistics
--2.2 Features
LTE/GSM/CDMA/DCS/PCS/WCDMA/UMTS/HSDPA/GPRS/EDGE/GPS/ WIFI
690- 960 MHz / 1710-2700 MHz
Ultra Wide Band Antenna
Ground Plane Independent
Hinged 90 Degree Termination with SMA / TNC / N Connector
3. Introduction
This is an ultra wideband antenna that provides broad coverage 690MHz- 960MHz / 1710MHz-2700Mhz and is compatible with most 4G LTE, 3G and 2G standards. This is a high efficiency high gain omnidirectional antenna ideally suited for gateways, routers , access points, repeaters and other WLAN applications. The antenna is 7 mm long, featuring a tilt-and-swivel SMA plug connector for a vertical, and any angle use. The antenna features a 360° horizontal transmission pattern and a 50° vertical transmission pattern
4. Specs
Electrical Properties
| 1.1 | Frequency | 690-960 / 1710-2700 MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.5 MAX |
| 1.4 | Return Loss | -5 dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 5 W |
Mechanical Properties
| 2.1 | Cable | RG178 |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | PC + PBT |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug / TNC / N |

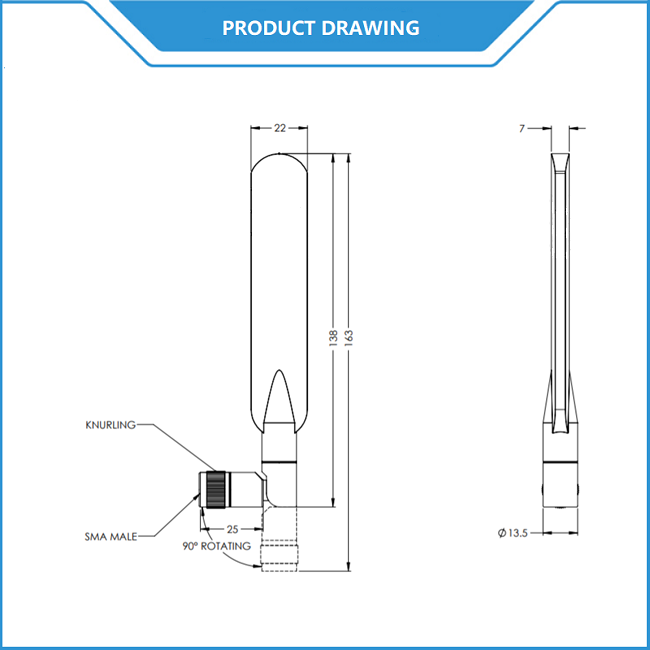

5. Antenna Drawing

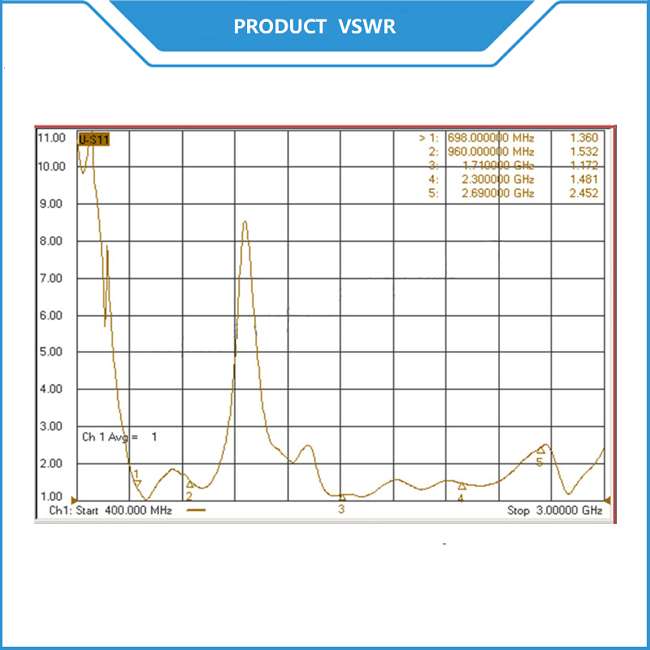

6. VSWR

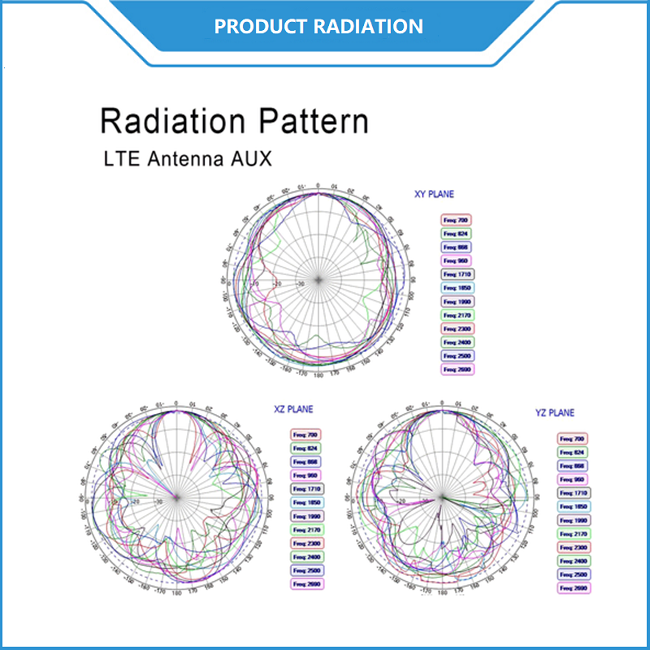

7. Radiation Pattern
