External High Performance UHF RFID Antenna 3dBi 433MHz Omni Directional SMA Dipole Antenna

Price Negotiable

Price: USD$ 1 / PCS - USD$ 1.2 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

External High Performance 3dBi 433MHz Omni Directional SMA Mount Dipole Antenna

1. Product Name

External High Performance 3dBi 433MHz Omni Directional SMA Mount Dipole Antenna

2. Description

--2.1 Applications

RFID on 433MHz

RF Modules on 433MHz

Remote Control

Surveillance and Monitoring

IoT

--2.2 Features

3dBi High Gain

SMA Male Connector

Hinged design for reception

Swivel and Tilt

3. Introduction

This is high performance 433MHz Omni-directional dipole antenna. This SMA plug mount antenna is ideal for general purpose use. The hinge design enables the antenna to be positioned at the optimal reception angle.

4. Specs

Electrical Properties

1.1	Frequency	433 MHz
1.2	Gain (peak)	3 dBi

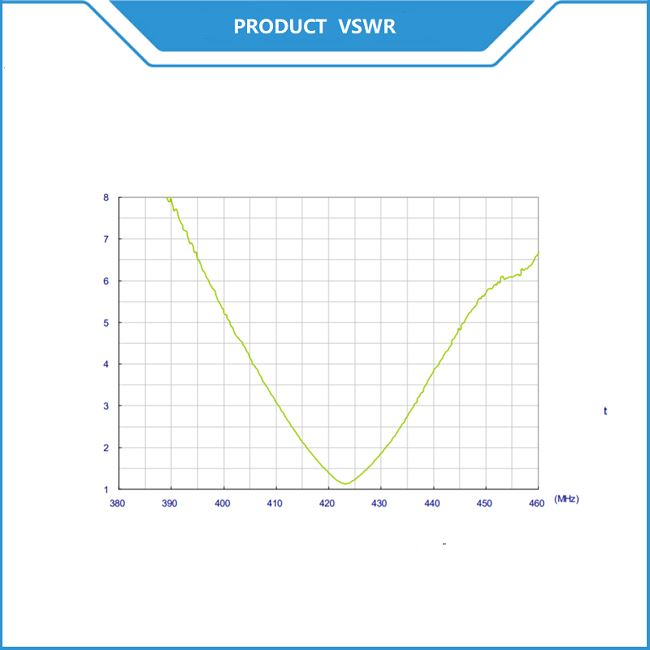

1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum

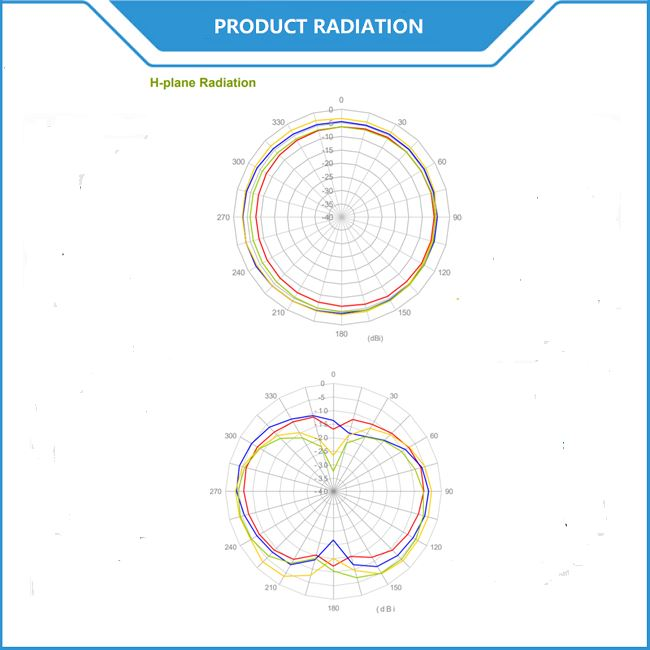

1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG178
2.2	Antenna Cover	TPE
2.3	Antenna Base	PC + PBT
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug
