Outdoor High Gain 2G/3G/4G LTE Bracket Mount Omni Directional Antenna
1. Product Name
Outdoor High Gain 2G 3G 4G LTE Bracket Mount Omni Directional Antenna
2. Description
--2.1 Applications
Machine to Machine (M2M)
Caravans. RTV
RFID,ISM,WISP Equipments
Public Security Wireless Systems
Cover Cellular GSM / PCS (US and Worldwide)
LTE,3G,GSM, CDMA,DCS,PCS or WIFI Repeaters
--2.2 Features
Vertical or Horizontal
DC Grounded for Lightning Protection
Wall Mount or Mast Mount
Indoor or Outdoor Use
3. Introduction
This high gain omni-directional antenna covers all frequencies bands needed for 4G LTE, but also the bands for HSDPA , 3G , EDGE , GPRS , VOICE and 2.4G WIFI bands. Its configuration makes it suitable for fixed installations of any frequency band. This is one of the few omni-directional antennas in the world that offers consistent high gain over a quite wide frequency band with excellent radiation pattern performance. It also makes it a very popular choice with installers because of its base station agile. It is also ideal for machine to machine (M2M) applications that are communicating through GSM networks (GPRS,EDGE,3G,HSPA,LTE)
4. Specs
Electrical Properties
| 1.1 | Frequency | 690-960 / 1710-2700 MHz |
| 1.2 | Gain (peak) | 5 dBi |
| 1.3 | V.S.W.R | 2.5 MAX |
| 1.4 | Return Loss | -5 dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 20W |
Mechanical Properties
| 2.1 | Cable | RG 58U |
| 2.2 | Antenna Cover | PC |
| 2.3 | Antenna Base | Bracket |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug / FME / N |
5. Antenna Drawing
6. VSWR

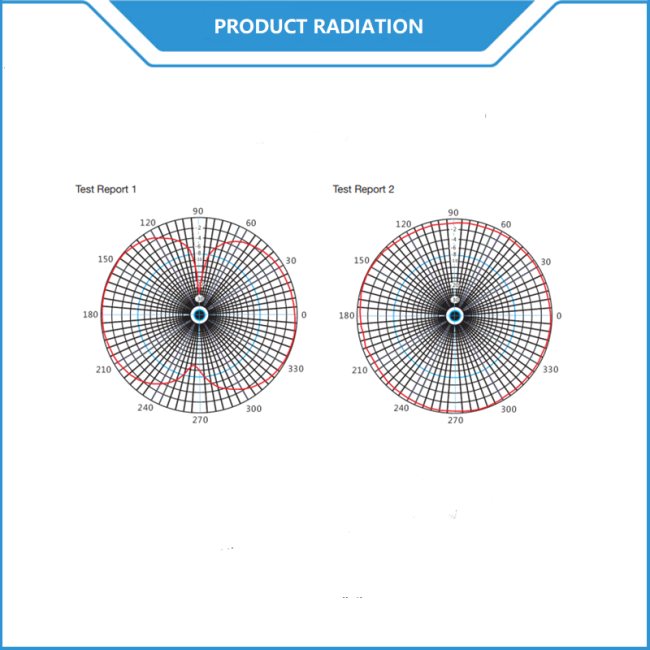

7. Radiation Pattern
