Indoor Wireless LAN Long Range 2.4GHz 9dBi Rubber Duck Omni Antenna

1. Product Name

    Indoor Wireless LAN Long Range 2.4GHz 9dBi Rubber Duck Omni Antenna

2. Description

--2.1 Applications

        2.4GHz Wireless Access Points

           Wireless Client Bridges

           Wireless Routers

           Wireless PCI

           Wireless PCMCIA

--2.2 Features

        9dBi High Gain

           2.4GHz WIFI

           High Performance

           SMA Male or RP SMA Male Connector

3. Introduction

    This extender omni rubber duck antenna can be used to replace the original 2dBi rubber duck antenna which comes standard on many wireless equipments

    It also can be used to extend the range of indoor access points or client bridges in 802.11 2.4GHz wireless LAN environments. It features a 360 degree horizontal transmission pattern and a 50 degree vertical transmission pattern . The transmit/receive element can be tilted in relation to the base to direct signal where it is needed (0,45,90 degrees). Also it can come with RP SMA connector to fit access points and most popular wireless radio equipments

4. Specs

Electrical Properties

Mechanical Properties

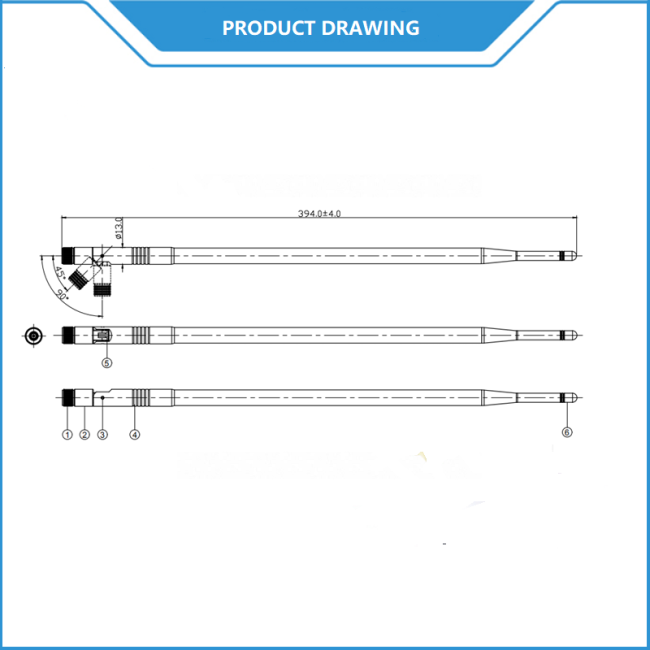

5. Antenna Drawing

6. VSWR

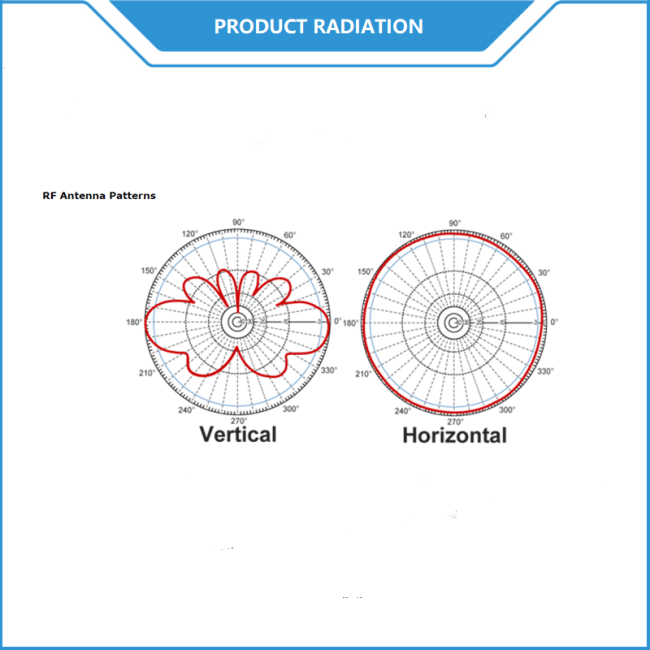

7. Radiation Pattern
