External UHF RFID Antenna 2dBi Gain Magnetic Mount ISM 433MHz Chip Antenna

Price Negotiable

Price: USD$ 1 / PCS - USD$ 1.2 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

External RFID 2dBi Gain Magnetic Mount ISM 433MHz Antenna

1. Product Name

External RFID 2dBi Gain Magnetic Mount ISM 433MHz Antenna

2. Description

--2.1 Applications

Wireless Sensor Monitoring
Smart Metering
Remote Asset Monitoring
Security Systems

--2.2 Features

433MHz ISM

Magnetic Mount

2dBi High Gain

Ground Plane Independent

Customized Cable and Connector

3. Introduction

A compact magnetic mounting 2dBi gain antenna for 433MHz applications where high performance is required from a small size. Using this antenna will give optimum range and reliability to your application.

4. Specs

Electrical Properties

1.1	Frequency	433 MHz
1.2	Gain (peak)	2 dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum

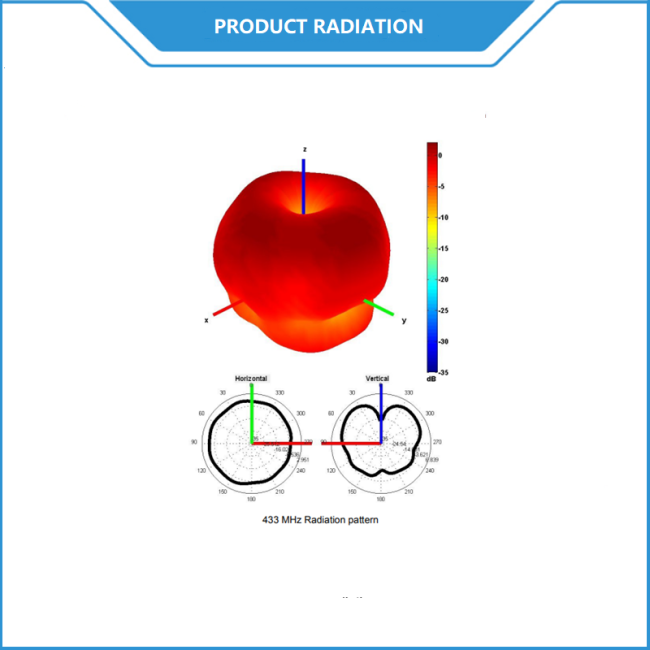

1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5 W

Mechanical Properties

2.1	Cable	RG 174
2.2	Antenna Stick	Iron
2.3	Antenna Base	PC + PBT
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug or Customized
