External SMA Plug Mount 433MHz Swivel Dipole Antenna
External SMA Plug Mount 433MHz Swivel Dipole Antenna
1. Product Name
External SMA Plug Mount 433MHz Swivel Dipole Antenna
2. Description
--2.1 Applications
ISM
RFID
Remote Control System
Wireless Entry System
--2.2 Features
Excellent Performance
Omni-Directional
Low VSWR
0.7dBi High Gain
SMA Male Connector
3. Introduction
This compact size omni directional high performance 433MHz antenna provides a quite excellent choice for remote control, RFID systems. Also, 108mm in height can be used for indoor environments.
4. Specs
Electrical Properties
| 1.1 | Frequency | 433 MHz |
| 1.2 | Gain (peak) | 0.7 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 1W |
Mechanical Properties
| 2.1 | Cable | RG 178 |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | PC+PBT |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug |

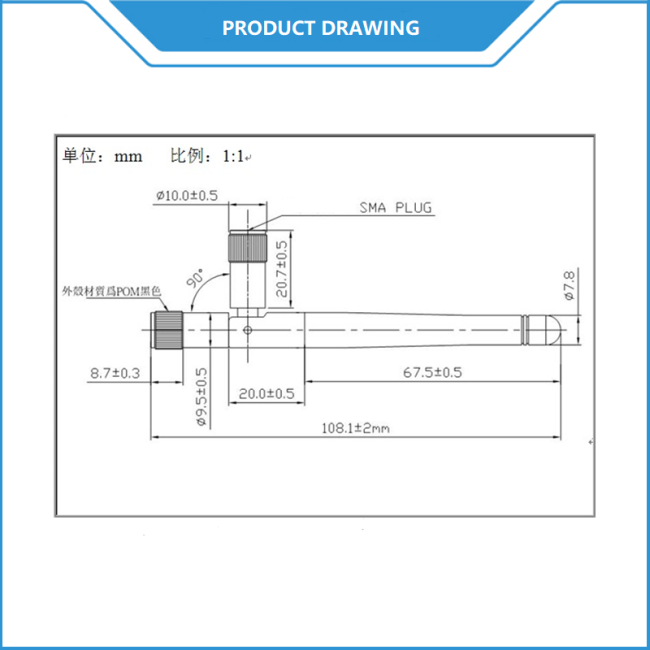

5. Antenna Drawing

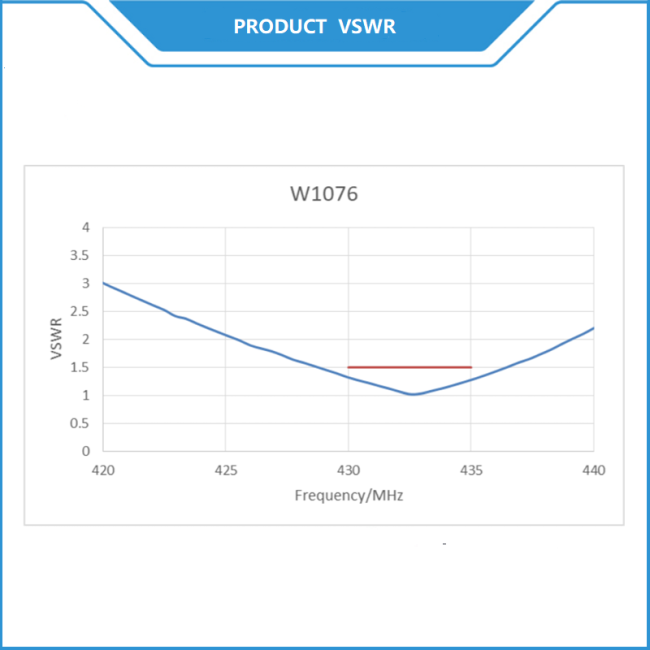

6. VSWR

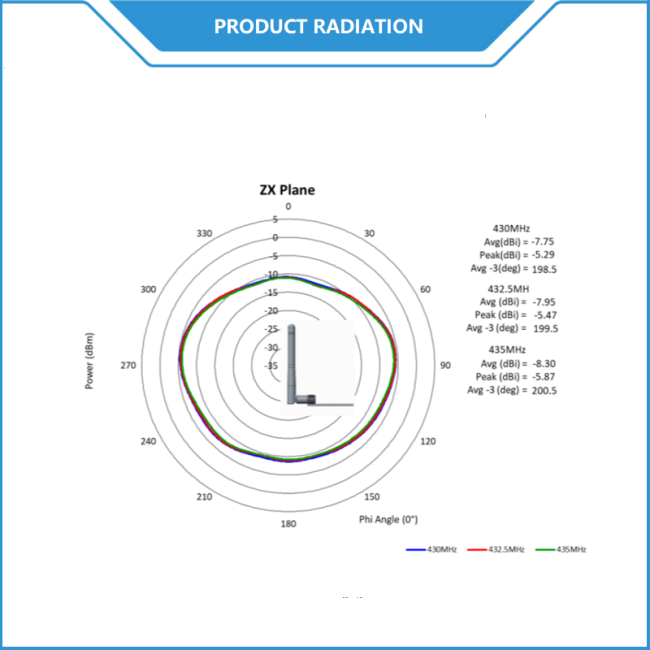

7. Radiation Pattern
