11.1V 18650 Battery Pack 2550mAh 2600mah Lithium Ion Battery
11.1v 18650 battery pack 2600mah in difference size needs
18650 Li-ion batteries are the battery of choice when designing for higher voltage and current requirements. Li-ion have relatively low self-discharge rates, and are capable of high discharge currents and better performance than nickel and lead based batteries.
Overview
The customer experience is focused to provide quality products and services. we provide both custom and standard battery solutions for OEM applications. With more than 10+ years of collective experience in custom battery pack design and battery distribution, we have the knowledge and expertise to help you through your most complex design and manufacturing challenges. We offer design support for the total battery pack requiring a BMS, a PCB, Enclosure, Testing, Regulatory Support, Custom Programming, etc. for industrial, commercial, and military applications.
What service you could get from us ?
Battery cell can be choose for China brands or LG SAMSUNG SONY PANASONIC
PCB parameter could change based on application
VODNO provide difference color of plastic PVC.
Buyer’s logo printing on battery requirement are welcome
Design battery size and solution in free service
Buyer advise connector type in order to assembly easily.

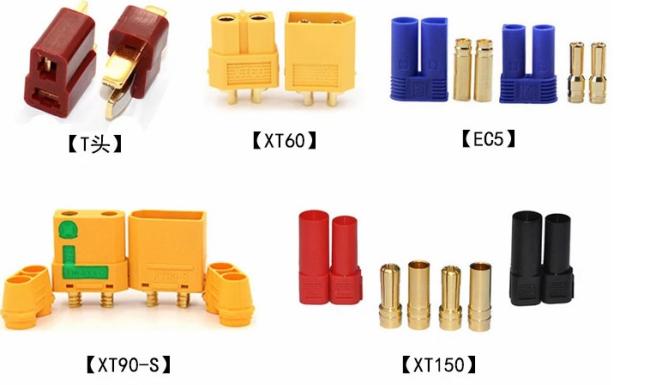

Connector types for your choice. If you can't find exact ones, You need tell us model number, We are able to build battery pack with it accordingly.
Specifications
| Typical Capacity | 2600mAh @ 0.2C Discharge |
| Minimum capacity | 2550mAh @ 0.2C Discharge |
| Nominal voltage | 11.1V |
| Standard Charge | CC/CV,0.2C5A,12.60V |
| Standard Discharge | CC,0.2C5A, 9.00V |
| End-of-charge Voltage | 12.60V±0.1V |
| End-of-charge Current | 0.02C5A (At CV mode) |
| End-of-discharge Voltage | 9.00 V |
| Charging Time | 8.0hours(standard charge) |
| Quick Charge Current | 1300mA (0.5C5rate) |
| Quick Discharge Current | 1300mA (0.5C5rate) |
| Max Discharge Current | 2600mA (1.0C5rate) |
| Initial Impedance | Max: 190mW |
| Weight | Approx:180±2g |
| Operating temperature |
Charging: 0℃~45℃ Discharging:-20℃~60℃ |
| Storage temperature | -5℃~35℃ |
| Storage Humidity | ≤75% RH |
| Appearance | Without scratch, distortion, contamination and leakage |
|
Standard environmental condition
|
Temperature : 25±2℃ Humidity : 45-75%RH Atmospheric Pressure : 86-106 KPA |
Related products
3.7v 7.4v 11.1v 14.8v 18.5v 22.2v rechargeable 18650 li ion battery pack are optional. Lithium-ion batteries as a power source are dominating in portable electronics, penetrating the EV market, and on the verge of entering the utility market for grid-energy storage. Our batteries are designed to ensure maximum performance over competitors in the industry.
