Lithium 24v 100ah Deep Cycle Battery Lifepo4 IP56 For Boat Evs
Deep Lifecycle Lifepo4 Lithium Battery 24v 100ah For Boat
LIFEPO4 is the more efficient technology batteries , knocking out traditional lead acid batteries . VODNO provides a complete line of 12 ,24 and 48 volt batteries for use in RVs, Boats , Evs and off-grid applications and much more.
Overview
lithium batteries provide up to 10 times longer life than lead-acid batteries, and they still provide 80% of rated capacity after 2,000 cycles. Most lithium-ion batteries last five years or more. The average lead-acid battery lasts just two years. Lead-acid batteries also need to be maintained, requiring water replacement to avoid structural damage; if they aren’t maintained properly, their life span is shortened even further. Because lithium batteries require no active maintenance, a one-time purchase guarantees longevity.

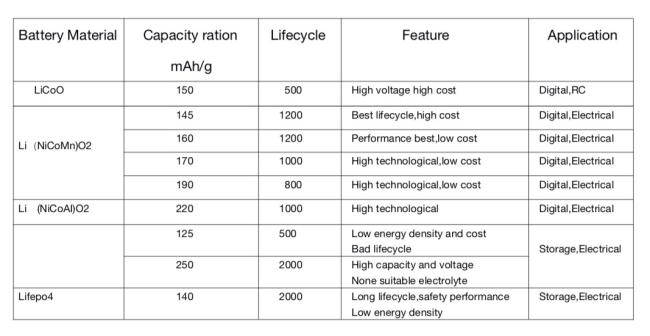

How to make a decision for difference of battery material
Specifications
| Model | VDO-LF24100 | |||
| General Characteristics | ||||
| Nominal voltage | 25.6V | |||
| Nominal capacity@0.2C | 100Ah | |||
| Nominal energy | 2.56kWh | |||
| Internal Resistance | 45≦mΩ | |||
| Life cycle | >2000Cycles @0.2C Charging /Discharging at 90%DOD | |||
| Self-Discharge | ≤3.5%per month at 25℃ | |||
| Standard Charging | ||||
| Charging voltage | 29.2+/-0.2V | |||
| Charging Mode(CC/CV) | At 0℃~45℃temperature, charged to 29.2V at constant current 0.2C5A,and then at constant voltage 29.2V until the current drops to 0.02C5A | |||
| Charging Current | 20A | |||
| Max.Charging Current | 50A | |||
| Standard Discharging | ||||
| Discharging Current | 50A | |||
| Max.Continuous Current | 100A | |||
| Max.Pulse Current | 200A(<3S) | |||
| Discharging cut-off Voltage | 20.0V | |||
| Operating conditions | ||||
| Operating temperature | Charge | 0℃~45℃ | ||
| Discharge | -20℃~60℃ | |||
| Storage temperature | 0℃~45℃ | |||
| Water dust resistance | IP56 | |||
| Structure | ||||
| Casing | ABS | |||
| Dimension | 522*238*218*220mm | |||
| Approx.Weight | 27kgs | |||
| Terminal | M8 | |||
Warranty
VODNO promise customer 3 years warranty based on battery performance,any unqualified battery are credit replacement within 3 years, no extra maintenance fees. but VODNO has no obligation under this Limited Warranty for Product subjected to the following conditions (including but not limited to):
-
Damage caused during shipping or mishandling of the Product
-
Damage due to improper installation; loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections or insufficient space for airflow
-
Environmental damage such as inappropriate storage conditions as defined by the VODNO, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact or collision
-
Damage due to improper operation or maintenance such as under- or over- charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels or chemicals on the Product casing
-
Improper use of CAN cables such as improper connections or not connecting them
-
Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the VODNO
-
Product that has been opened, modified or tampered with
-
Tampering or removal of manufacture date codes
-
Product that was used for applications other than which it was designed and intended for by the VODNO
-
Product that was under-sized for the application
This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.
