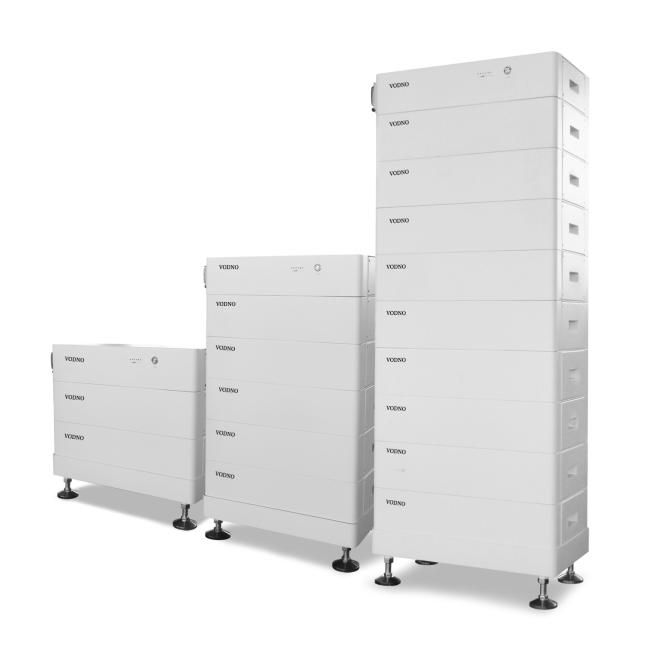

Customized 307.2v 15.36KW Long Lifecycle Stackable Household Solar Battery System

Name: Customized 307.2v 15.36KW Long Lifecycle Stackable Household Solar Battery System
Brand: Vodno Technology Co., Ltd.

Price Negotiable

Price: $5,635.00/pieces 2-10 pieces

MOQ: 2 pieces

Delivery Time: Negotiable

Product Description

Products Description

The most complete household energy storage battery sytem

A battery energy storage system is an electrochemical device that charges or collects energy from the grid or a power plant and then discharges that energy at a later time to provide electricity or other grid services when needed. Battery storage is an important technology that can enhance power system flexibility and enable high levels of renewable energy integration. Modern battery energy storage systems usually include a built-in inverter and computerized control systems that make them simple to install, largely maintenance-free and do not require any effort or expertise from the user. Battery energy storage systems have a wide range of applications for both commercial and residential purposes. Commercial applications include peak shaving, load shifting, emergency backup, and various grid services. Residential applications include self-consumption, off-grid homes and emergency backup.

Product Paramenters

Datesheet	VDO-HV 15.4
Battery Module	VDO-HV-2.56 (2.56kWh, 51.2V, 34kg, 593/355/145)
Number of Modules	6
Energy Capability	15.36KWh
Nominal Voltage	307.2V
Dimension mm (H/W/D)	1010/593/355
Weight	249.5kgs
Battery Type	Lithium Iron Phosphate (LFP)
Standard Charge/Discharge Current	25A@0.5C
Max Charge/Discharge Current	50A@1C
IP Protection	IP65
Installation	Wall-mounted or Floor Installation
Operation Temperature	0 °C to 45°C
DOD	90%
Cycle Life	>6000
Warranty	10 Years
Communication Port	CAN/RS485
Communication Mode	WIFI / BLUETOOTH
Certification	CE, IEC62619, MSDS, ROHS, UN38.3

Product Characteristic

HV 5.1K-25.6K High voltage Lithium Lifepo4 Battery

* Sufficient capacity

* Long life cycle > 6000 cycle @90%DOD
* Support multi-machine in series to increase capacity Max 10
* Intelligent communication RS232/RS485/CAN
* Customizable communication protocol:Growatt,Solis,Goodwe,Victron,INVT etc.
* REPT cell
* 5+5 years warranty
* High voltage energy storage lithium battery
* CE IEC62619 MSDS RoHS UN38.3

Cell Parameters
Rated voltage(V)	3.2
Rated capacity(Ah)	50
Charge Discharge Rated (C)	0.5
Cycle life (80% DOD, 0.5C)	>6000
Dimensions(LWH)(mm)	14940100.5

Battery module Parameters
Configuration	1P8S
Rated voltage(V)	25.6
Operating voltage(V)	23.2-29
Rated capacity(Ah)	50
Rated energy(kWh)	1.28
Max continuous current(A)	50
Operating temperature(°C)	0-45
Weight(kg)	15.2
Dimensions(LWH)(mm)	369.5152113

Battery Pack Parameters
Configuration	1P16S
Rated voltage(V)	51.2
Operating voltage(V)	46.4-57.9
Rated capacity(Ah)	50
Rated energy(kWh)	2.56
Max continuous current(A)	50
Operating temperature(°C)	0-45
Weight(kg)	34
Dimensions(LWH)(mm)	593355146.5

Why Choose Us

1. Strong adaptability and is compatible with more than ten brands of inverters, such as Pylontech, Growatt, Sermatec,
FoxESS,Victron energy,Voltronk Power, Sofar, SMA, TBB, Deye, Luxpower and so on.
2. Low voltage and high voltage are option, Low voltage means it is consisted of 15 pcs of LFP cell,The Operating voltage range 42V~54V, High voltage means the Operating voltage range 102V~512V. LFP cell voltage is 3.2V from China famous brands,Such as CATL,BYD,CALB and so on.
3. Safety certification Cell: CE,UL,IEC 62109-1&-2, IEC 62477,EN61000,UN38.3
Battery pack: CE, CB,IEC,UN38.3, MSDS, Shipping, Dangerous Package
Hazardous Material Classification: CLass 9
Transportation: UN38.3
Ingress Rating: IP55
4. Warranty: The battery retains at least 80% of Nominal Energy for 7 years after the date of invoice and at least 60% of Nominal Energy for 10 years after under proper conditions of the use during the Term of Performance Warranty.

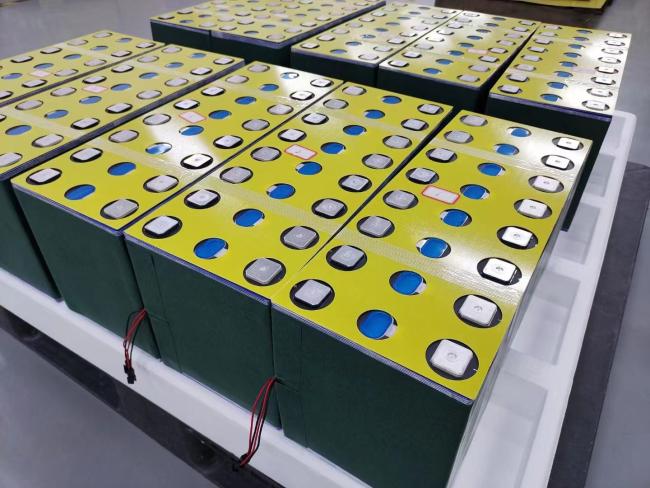

LIFEPO4 BATTERY CELL

Equipped with only high quality A grade battery cell

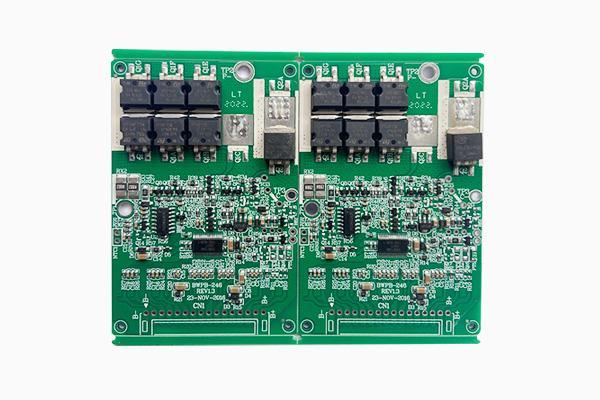

Smart BMS

The high-end BMS control system provides the best service for system operation and grid response.

Interior structure

Equipped with first-class design, bring stable and reliable operation to the equipment

Details Images

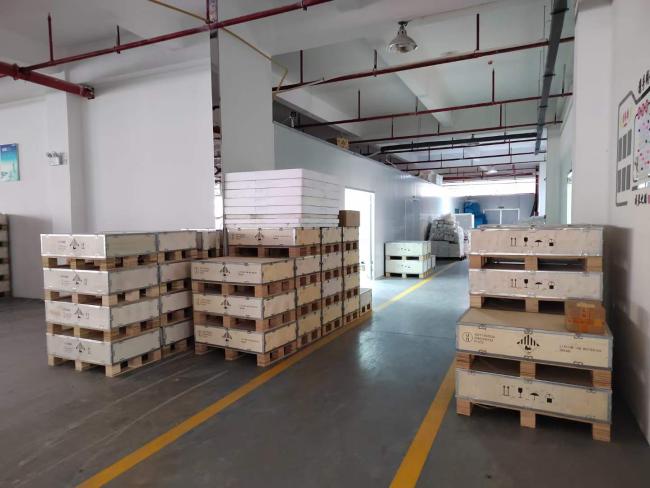

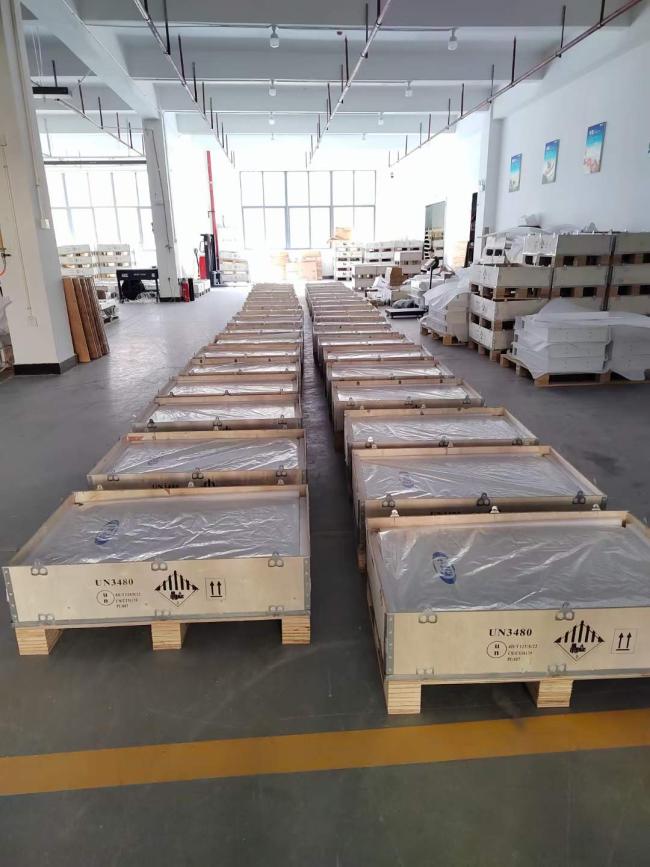

Packing Details

Application

FAQ

Q1.: Are you a manufacture or a trading company ?

A1.: Yes. we are both.

Q2.: Can I get some samples?

A2.: Yes, sample order is available for quality check and market test. After we received charges of sample, the sample will be delivered in 7-15 days.

Q3.: Can you do the design for us?

A3.: Yes. We have a professional designing team which is provide OEM and ODM. Just tell us your ideas and we can help to carry out your ideas. Send us HD images, your logo and text, we would like to arrange them according to your requirements. The final files need to confirmed by you.

Q4.: Does inverter built in battery pack system?

A4.: Yes, we have both for with and without inverter for your choice. if you have a inverter already, just let us know details of communication protocol, we can help check if our battery system is support, or adjust our battery system to support them.

Q5.: How about the delivery time?

A5: It depends on the quantity and the season you place an order. Usually takes about 5-7 working days for 10 units production.

Q6.: What is your terms of delivery shipping?

A5: It depends on the quantity and the season you place an order. Usually takes about 5-7 working days for 10 units production.

Q7.: What is your warranty?

A6.: We accept EXW, FOB, CFR, CIF, DDP, DDU,etc. We could give you best suggestion of shipping way based on destination.

Q8.: Do you sell inverter or solar panel also?

A8.:We are professional storage battery system manufacturer, we only produce battery, but if you need help, Pls talk to sales staff about your requirements, we will help to provide with it.
