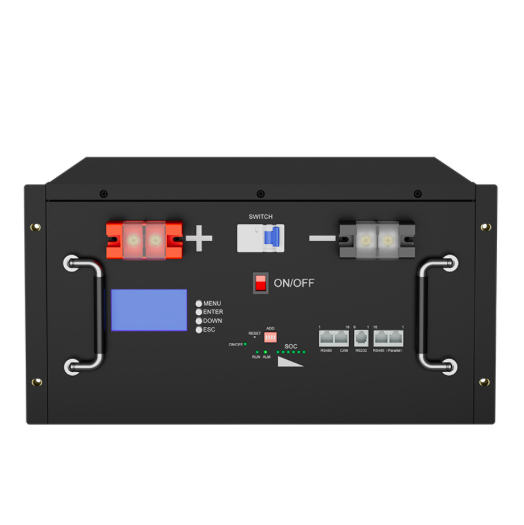

51.2v 100ah Lithium Ion Battery 48V 100Ah 5kw 7kw 10kw Solar Systems Lifepo4 Battery Pack
Price:
$826.00/pieces 2-9 pieces
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
Vodno
Product Description
Specification
|
Model
|
VDO-RL4850
|
VDO-RL48100
|
VDO-RL48200
|
||
|
Nominal voltage
|
48V/51.2V
|
48V/51.2V
|
48V/51.2V
|
||
|
Nominal capacity@0.2C
|
50Ah
|
100Ah
|
200Ah
|
||
|
Nominal energy
|
2.4KWh/2.56KWH
|
4.8KWh/5.12KWH
|
9.6KWh/10.24KWH
|
||
|
Life cycle
|
>4000Cycles @0.2C Charging /Discharging at 80%DOD until 70% Capacity
|
|
|
||
|
Self-Discharge
|
≤3.5%per month at 25℃
|
|
|
||
|
Charging voltage
|
54.7V/58.4V
|
54.7V/58.4V
|
54.7V/58.4V
|
||
|
Max.Charging Current
|
50A
|
100A
|
100A
|
||
|
Max.Continuous Current
|
50A
|
100A
|
100A
|
||
|
Discharging cut-off Voltage
|
40.5V/43.2V
|
40.5V/43.2V
|
40.5V/43.2V
|
||
|
Operating temperature
|
Charging : 0℃～45℃/ discharging '－20℃～60℃
|
|
|
||
|
Storage temperature
|
0℃～45℃
|
|
|
||
|
Communication Port
|
RS485 RS232 CAN
|
|
|
||
|
Casing
|
U size
|
|
|
||
|
Dimension
|
485*410*89mm
|
485*410*178mm
|
485*590*178mm
|
||
|
Approx.Weight
|
25kgs/27kgs
|
43kgs/48kgs
|
89kgs/95kgs
|
||
|
Certification
|
CE/UN38.3
|
|
|
||

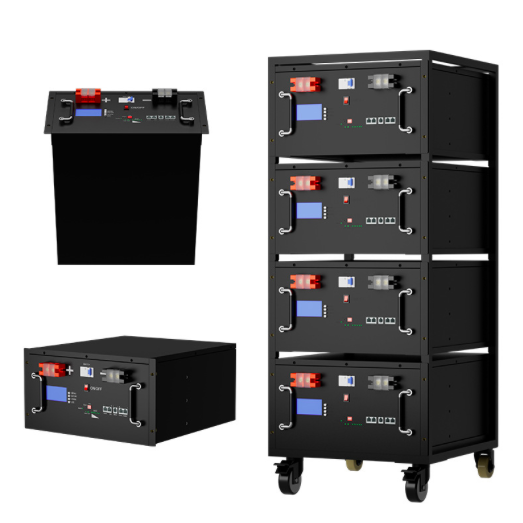

Rack mounted energy storage battery system 48v-512v 7kwh 10kwh 15kwh 20kwh
If you could find out capacity you are looking for pls free feel to contact salesperson
Details Images
Lithium lifepo4 battery is good instead of lead-acid battery, they are more advantages
1,Lithium is Long-Lasting
lithium batteries provide up to 10 times longer life than lead-acid batteries, and they still provide 80% of rated capacity after 2,000 cycles. Most lithium-ion batteries last five years or more. The average lead-acid battery lasts just two years. Lead-acid batteries also need to be maintained, requiring water replacement to avoid structural damage; if they aren’t maintained properly, their life span is shortened even further. Because lithium batteries require no active maintenance, a one-time purchase guarantees
longevity.
longevity.
2,Lithium is Quick & Efficient.
Lithium can charge and discharge at a high rate providing maximum versatility for all types of applications. Fast charging minimizes downtime, and lithium’s high rate of discharge is perfect for a burst of power. Lead-acid batteries must be charged in
stages over a longer time, and they perform inefficiently during high discharge periods, making them less versatile than their lithium counterparts. Lithium’s efficiency is unparalleled, especially under high-stress situations. Unlike lead-acid, temperature fluctuations and energy depletion barely affect lithium’s power delivery. Lithium is the logical choice for applications that will
exhaust the batteries or run in extreme weather.
stages over a longer time, and they perform inefficiently during high discharge periods, making them less versatile than their lithium counterparts. Lithium’s efficiency is unparalleled, especially under high-stress situations. Unlike lead-acid, temperature fluctuations and energy depletion barely affect lithium’s power delivery. Lithium is the logical choice for applications that will
exhaust the batteries or run in extreme weather.
3,Lithium is the Lightweight Champ
LiFePO4 batteries provide more energy than lead-acid batteries and are typically half the mass, reducing concerns about battery
weight. Compared to other battery chemistries, lithium provides the same or greater energy at less than half the weight and size.
This means more flexibility and easier installation!
weight. Compared to other battery chemistries, lithium provides the same or greater energy at less than half the weight and size.
This means more flexibility and easier installation!

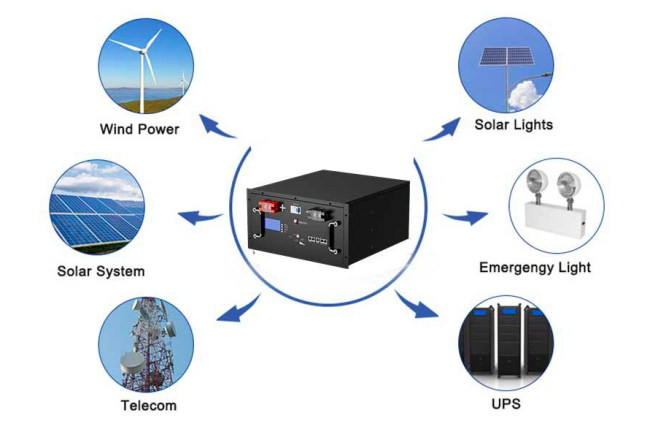

Application
Our Advantages
1, Our battery cell is A grade and high consistency. 2, OEM and ODM are acceptable.
3, The product has an automatic balance function and an automatic battery heating scheme can be added.
4, Support WIFI, Bluetooth, arbitrary serial and parellel.
5, Above product packed with plastic boxes, while custom boxes /Metal are acceptable
6, Provide buy'er logo on battery pack.
7, Good service warranty 5 years.
8, Cheaper shipping ways be adviced.
9, Provide high voltage and low voltage energy storage battery system.
VODNO market
FAQ
Q1. How to proceed an order for Battery?
A1: Firstly, pls let us know your requirements,such as the dimension,continuous&peak discharge current ,application of the battery.
Secondly,pls let us know the purchasing quantity and when will your project start.We quote according to the details.
Thirdly customer confirms the price,sample and places deposit for formal order.
Fourthly We arrange the production.
Q2: How to deal with the faulty?
A2: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order to replace the defective.
Thirdly,we will test the defective batteries and make 8D report.We will find out the reason and propose the
improvement measures for future production.
Q3: Do you support door to door shipping? drop ship ?
A3: Yes. If battery unit weight is below 30kg, we can delivery it via Air Express. If battery unit weight is above 30kg, we delivery it via sea. If you want to us to help you to make custom clearance, we would like to do that. We support drop ship.
Q4 Does your battery include BMS? Can we use it for vehicle?
A4.:Yes, our battery pack include BMS, you can use it for low speed vehicles.And make sure the discharge current can meet the application request. If you want to use standard vehicle, please inform us, we need to adopt more complex design BMS and different technology solution.
A1: Firstly, pls let us know your requirements,such as the dimension,continuous&peak discharge current ,application of the battery.
Secondly,pls let us know the purchasing quantity and when will your project start.We quote according to the details.
Thirdly customer confirms the price,sample and places deposit for formal order.
Fourthly We arrange the production.
Q2: How to deal with the faulty?
A2: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order to replace the defective.
Thirdly,we will test the defective batteries and make 8D report.We will find out the reason and propose the
improvement measures for future production.
Q3: Do you support door to door shipping? drop ship ?
A3: Yes. If battery unit weight is below 30kg, we can delivery it via Air Express. If battery unit weight is above 30kg, we delivery it via sea. If you want to us to help you to make custom clearance, we would like to do that. We support drop ship.
Q4 Does your battery include BMS? Can we use it for vehicle?
A4.:Yes, our battery pack include BMS, you can use it for low speed vehicles.And make sure the discharge current can meet the application request. If you want to use standard vehicle, please inform us, we need to adopt more complex design BMS and different technology solution.
