Customized Industrial Silicone Gel Material Potting Glue Compound 2 Part
Factory Supply Color Customized Silicone Potting Glue Compound 2 Parts Flexible Potting Adhesive Waterproof 1:1 For Electronics PCB Lights Controller
PRODUCT DESCRIPTION of Silicone Potting Glue
HN-8806, two-component addition type silicone potting rubber which can be cured into high-performance elastomer by room temperature or heating.
Product Features of Silicone Potting Glue
-
Excellent electrical properties and Thermal conductivity;
-
Flame retardant, high and low- temperature resistance from -50ºC to 250ºC (58°F to 432°F);
-
Aging resistance and moisture-proof;
-
Low shrinkage rate, will not release heat and by-products, no corrosion of potting components after curing;
- Protects components against thermal cycling stress and mechanical shock.
Technical Parameters Silicone Potting Glue:
| Test Items | Test Standard | Units | Product test results | |||
| Part A | Part B | |||||
|
Before Curing
|
1 | Appearance | By eyes | --- | Grey, fluid | White, fluid |
| 2 | Viscosity | GB/T10247- 2008 | 25ºC,mPa·S | 4500~5000 | 4500~5000 | |
| 3 | Density | GB/T 13354-92 | 25ºC,g/cm3 | 1.50±0.05 | 1.50±0.05 | |
| 4 | Mixing Ratio (A : B) | 1:1 | Weight ratio | 100 | 100 | |
| Volume ratio | 100 | 100 | ||||
| 5 | Operating time | Measured | hr | 0.3-0.4 | ||
| 6 | Curing condition | Measured | hr |
4~12 (25ºC, initial cure) |
||
|
0.20 (80ºC) |
||||||
|
After Curing
|
7 | Appearance | By eyes | --- | Grey Elastomer | |
| 8 | Hardness | GB/T 531.1-2008 | Shore A | 50±5 | ||
| 9 | Thermal conductivity | GB/T10297-1998 | w/m·k | ≥0.76 | ||
| 10 | Expansivity | GB/T20673-2006 | µm/(m,ºC) | 210 | ||
| 11 | Moisture Absorption | GB/T 8810-2005 | 24h,25ºC,% | 0.01~0.02 | ||
| 12 | Volume resistivity | GB/T 1692-92 | (DC500V),Ω· cm | 1.0×1016 | ||
| 13 | Dielectric intensity | GB/T 1693-2007 | Kv/mm(25ºC) | 18~25 | ||
| 14 | Temperature Resistance | Measured | ºC | -50~+250 | ||
* UV-94 Fire retardant: After two times 10s burn tests on a 3mm-thick sample, the flame was extinguished within 30s, and no burnt fell. [1]
* Noted: The data after curing are all measured after the silicone is completely cured.
HOW TO USE Silicone Potting Glue

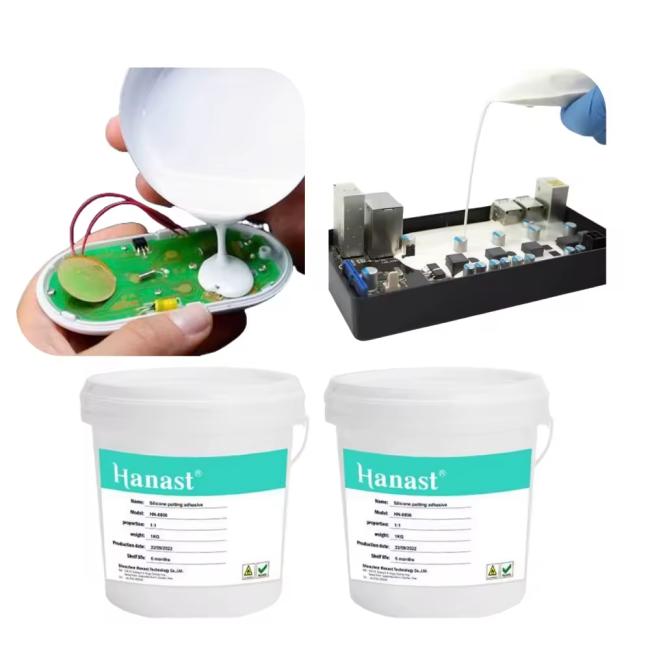

1. When used, weigh A and B according to proportion and then mix them evenly.
Mix thoroughly and evenly with a clean stirring device in a clean container, and then potting can be done.
It can also be sealed under a vacuum after removing the bubbles.
2. The surface of the potting element needs to be cleaned.
If the potting product is too large, it is recommended to potting in stages and then cure at room temperature (4-12hr) or by heating (80ºC-0.5hr).
3. For the automatic potting production line, in order to ensure accurate mixing ratio of A and B, Part A and Part B should be vacuumed respectively to remove the bubbles (the foaming time is 5-10 minutes), and then A and B should be pumped to the static mixer in proportion with a metering pump, and then potting can be done after mixing evenly.
Application of silicone potting glue:
Battery Management System (BMS), Motor Controller, On-Board Charger (OBC), DC-DC Converter
Photovoltaic Inverter, Energy Storage Converter (PCS), Energy Storage Battery Pack
Power Adapter, Smart Home Module, Drone ESC (Electronic Speed Controller), LED Driver
PLC, Servo Drive, Sensors, Instruments and Meters
PACKING of Silicone Potting Glue
20KG / Set (A, 10kg + B, 10kg)
50KG / Set (A, 25kg + B, 25kg)
- Shelf Life: 6 months, overdue please reinspect; If it meets the standard, it can still be used.
